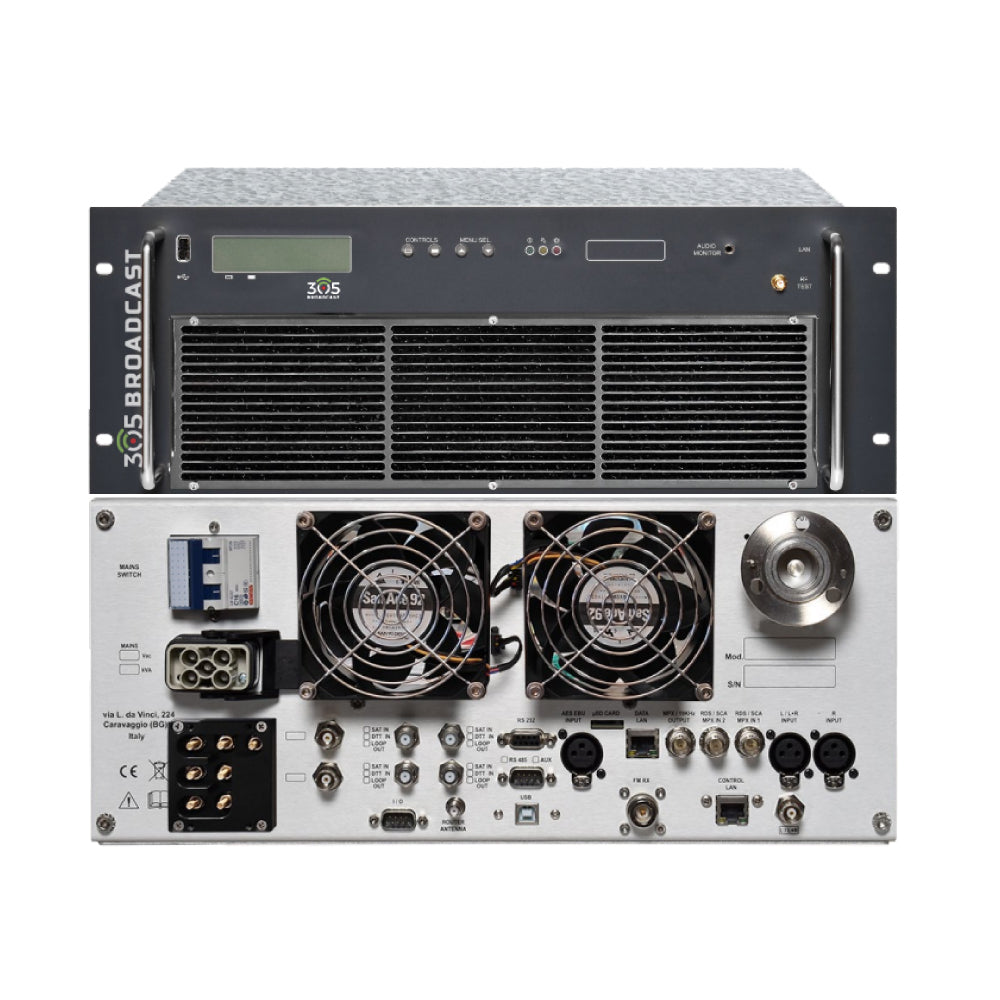

NEXT 5000 - 5 KW Digital FM Transmitter

The reinvention of the FM Transmitter

Black Friday: Upgrade to a full software license for 6 months

Wave Series of compact FM Transmitters is a synthesis of a forefront hardware design, combining state-of-the-art technology with great ease of of use, management and maintenance.

Wave transmitters integrate a comprehensive set of input interfaces with automatic input switch, as well as Stereo/RDS coders, a Stereo Tool Audio Processor, a test tone generator, an audio monitor and MPX output.

Transmitters can integrate up to two Satellite/Terrestrial receivers (able to receive low symbol rate signals).

A patented FM isofrequency implementation allows transmitters to operate in SFN with very high performance.

The units integrate a local LCD display and keypad and can be remotely managed via web GUI and SNMP, with option for 3G/4G router with SMS capability, email client and analog/digital GPIO.

Among the main features

• Digital processing with DDS modulator
• Input: Analog mono/stereo, MPX, AES/EBU, AES192, FM tuner, Micro SD card, SAT/DTT receiver (available in redundant configuration) GPS, and Audio monitor (jack 3.5mm) .
• Advanced Efficiency Boost and Wave Plan functions
• Static and dynamic RDS coderLicense option
• Web server, event logger, SMS client, SNMP
• FSK ID (for US market)
• HD radio & DAB receiver - included with FM receiver license
• MicroMPX receiver (to support Thimeo standard of microMPX over IP) –  hardware option
• Up to 5 years warranty

DOWNLOAD DATASHEET

Features:

• 4 Power Module
• 3 Power Supply
• Analog mono/stereo MPX input
• AEB and Unique Soft clipper
• LAN management interface with: easy and completely interactive GUI web server, event logger, SNMP and the advanced power scheduler.
• EIA FL 7/8’’ output
• 230Vac (176-264Vac) single phase; 230Vac three phase without neutral (delta conn.); 400Vac (310-460Vac) three phase with neutral (star conn.) 45-65Hz
• Shipping Dimentions 24" x 39" x 12", 78 LB
