When you need high quality SDI monitoring, SmartView monitors are the perfect solution! SmartView monitors are extremely thin and lightweight, so are perfect for both broadcast and portable use, and automatically switch between SD, HD and 3G-SDI video formats. There are 3 great models; SmartView HD features a large 17" display, SmartView Duo has 2 independent 8" displays and SmartScope Duo 4K adds the flexibility of built in waveform monitoring that can be assigned to either of its 8” displays!
SmartView monitors are the perfect choice to add SDI monitoring anywhere you need it. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more! When you're working with live production switchers you can build a video wall of camera monitors in your control room and see all your sources. You can mix and match different SmartView models in a rack for a customized monitoring solution where you can view your images and choice of scope displays side by side!
There are 3 exciting SmartView models to choose from! SmartView HD has a large 17" LCD for full HD 1920 x 1080 resolution monitoring, so you can see every single pixel in your image. SmartView Duo features two independent 8" displays in a 3 RU design that’s less than one inch deep. SmartScope Duo 4K adds independent waveform monitoring and you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase with audio level displays. Each SmartScope Duo 4K display is independent so can monitor any combination of scope or picture view!
SmartView monitors are ideal for high end broadcast monitoring because they feature high quality filtering and scaling, so you retain fine detail in the image. The fully digital design with high quality SDI inputs ensures precise color that’s easy to manage across multiple displays. SmartView includes ethernet so you can connect them to your network and centrally control all your monitors from a single computer using the SmartView software utility. SmartView also includes integrated tally that is fully compatible with many switchers or automation systems.
When you need to analyze image quality more accurately than simply looking at the picture then use SmartScope Duo 4K’s built in waveform monitoring! You can view two independent sources simultaneously and conveniently switch between monitoring or scope views whenever you need! Choose from waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. SmartScope Duo 4K removes the need for separate expensive scopes!
SmartView monitors feature an elegant front panel that is designed to allow multiple SmartView HD, SmartView Duo and SmartScope Duo 4K models to be mounted next to each other to create a beautiful wall of monitors that share the same appearance and width! Lightweight and ultra thin, SmartView is perfect for broadcast trucks and ﬂy away kits! When you need to mount SmartView in the extreme top or bottom of an equipment rack, the units can be rotated upside down and the images will automatically flip to provide the optimum viewing angle!
SmartView has been designed for broadcast as well as post production and includes support for multiple SDI video standards, including SD, HD and 3G-SDI formats. They support new advanced video standards used in post production including 1080 progressive HD rates and even 2K over 3G-SDI. All video formats can be connected and changed at any time, because SmartView will automatically switch in less than a second to the new format!

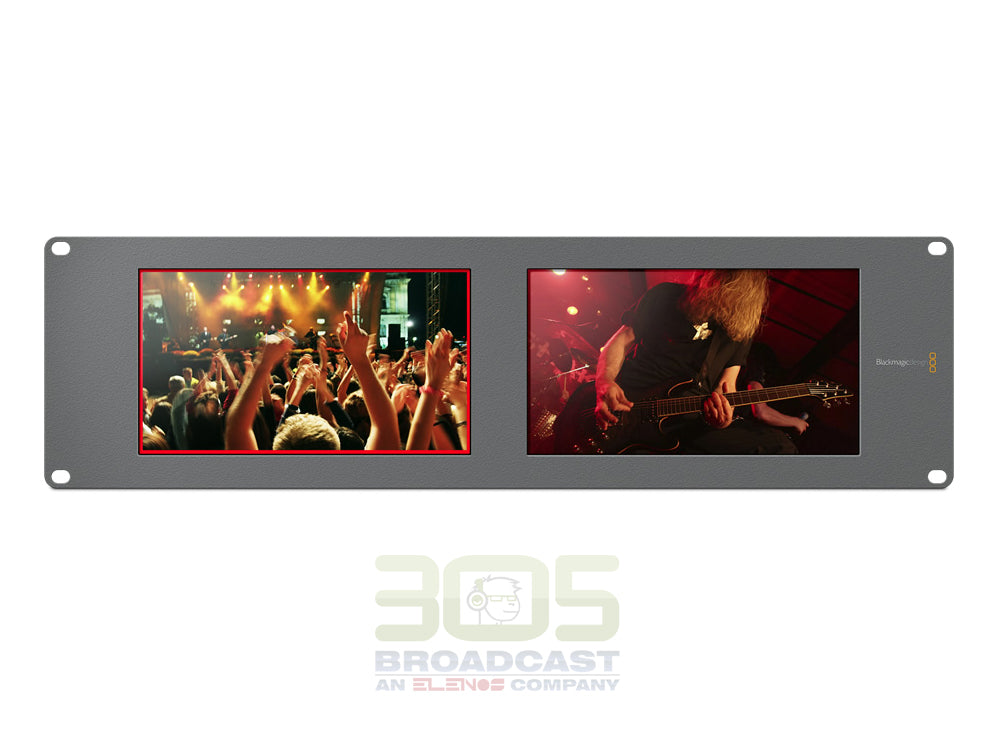

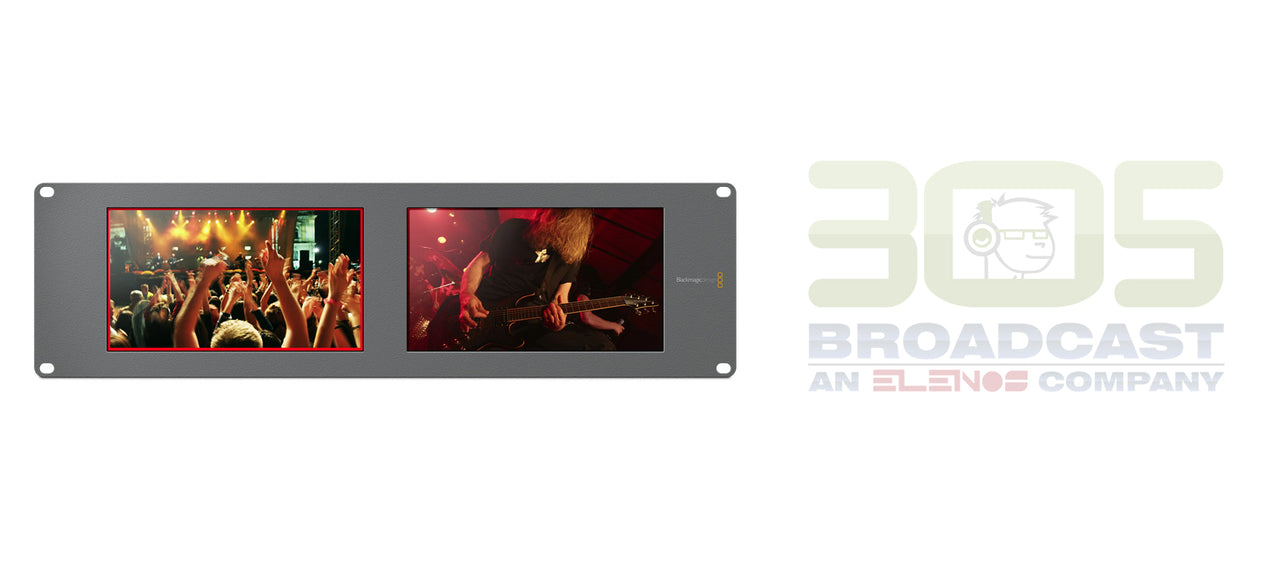

Featuring two large independent 8 inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!
Automatically switches between SD, HD and 3G-SDI. Reclocked loop through output.
Auto detection of 2K, HD or standard definition inputs.
Via USB 2.0 high speed (480 Mb/s)

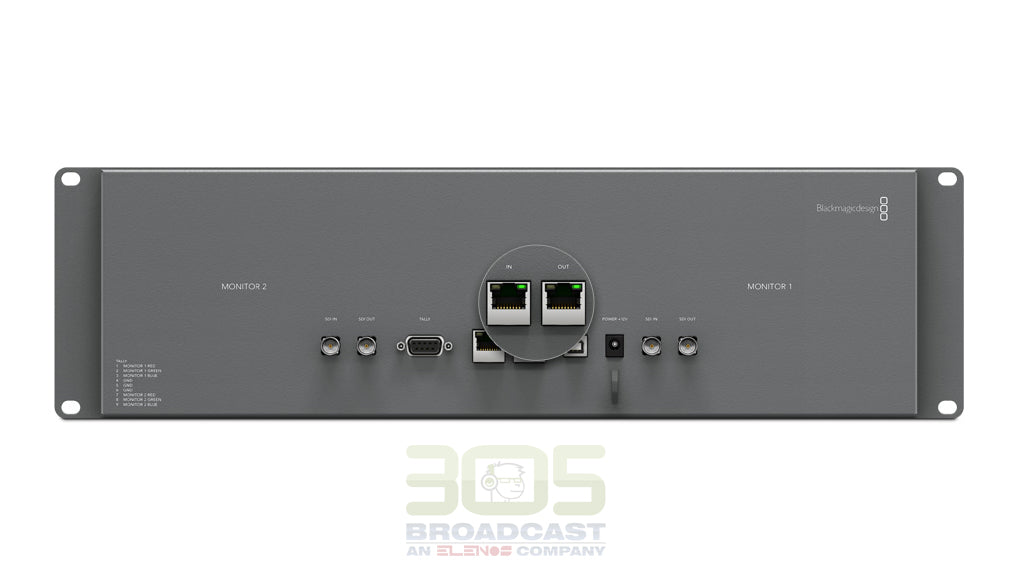

10/100 BaseT with loop through.
SMPTE 259M, SMPTE 292M,SMPTE 296M, SMPTE 372M,SMPTE 424M Level B andSMPTE 425M.
REC 601, REC 709
Automatically selects between SD, HD and 3 Gb/s SDI.
4:2:2 and 4:4:4
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Via included firmware updater software.
Via USB or Ethernet.
TFT Active Matrix LCD.
800 x 480 pixels
< 15 ms
16.7 Million Colors.
Displays can rotate upside down for optimum viewing angle.
