Vorsis M-4 IP Voice Processor

Vorsis M-4 IP Voice Processor

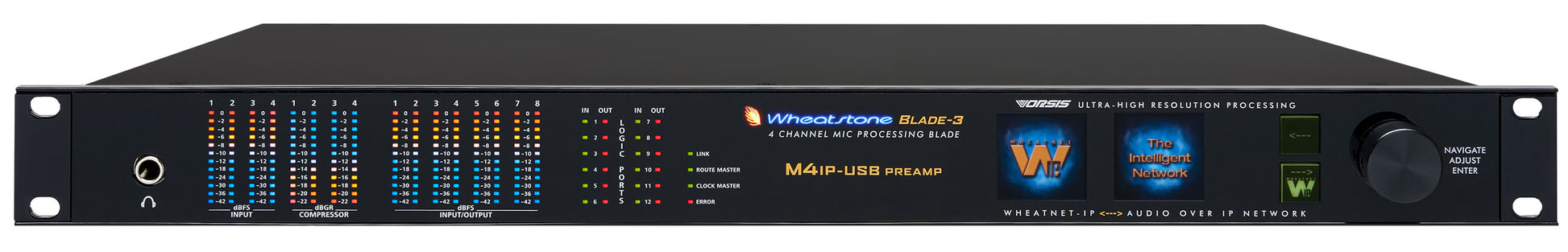

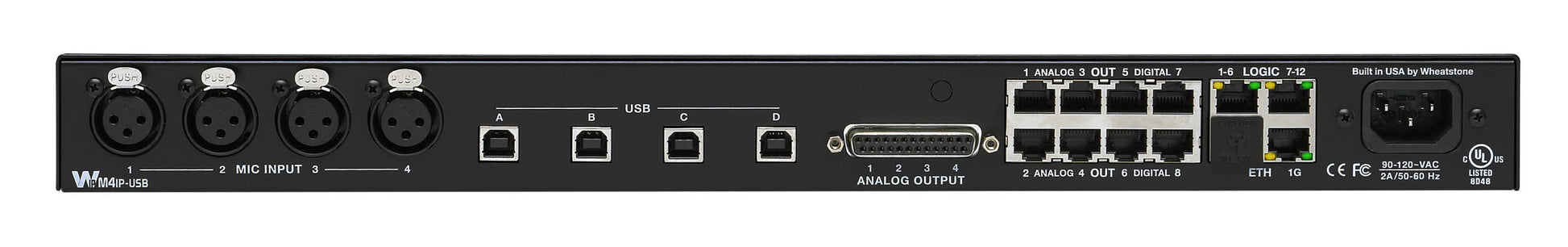

The M4-IP Microphone Processor BLADE combines four high-quality microphone preamps, four channels of Vorsis embedded microphone processing, and a WheatNet-IP BLADE interface, allowing you to place four microphone inputs anywhere in your WheatNet-IP Intelligent Network (although it also works just fine as a standalone processor).



The preamps and processors are accessed and controlled from any point on the network via its Windows-based GUI. The M4-IP is a great way to maximize your investment in on-air talent by combining four mic processors into a single rack space, accessible from anywhere.

The M4-IP microphone processor is equipped with four matched Super-Quiet (SQ) microphone preamplifiers featuring extremely low noise floor, very wide dynamic range, faithfully accurate transient response, and ruler flat frequency response. Operating in harmony with high quality 24-bit A/D converters and a 96kHz base sample rate, the M4-IP adds absolutely no undesired coloration to the signal and faithfully preserves the sound of any microphone and talent combination. It also features a four-section equalizer with high and low shelving EQ and two bands of fully parametric EQ, high and low pass filters, and de-esser and expander functions. The signal path of the M4-IP includes four completely independent channels of Wheatstone?s smooth-sounding Vorsis dynamics processing. Adjustable from anywhere on your network the M4-IP offers the security of password protected TCP/IP-based remote control and no front panel controls.

Wheatstone-designed Equalization

Based on great-sounding designs built for Wheatstone?s high performance professional audio applications, the M4-IP?s equalization section operates predictably and adds no noise, ringing, phasiness or other undesirable coloration to the sound.

Wheatstone-designed Dynamics Processing tools

A high performance and fully adjustable downward expander, de-esser, and smooth sounding broadband compressor and selectable low distortion final Lookahead limiter round out the M4-IP to create powerful and authoritative presence to production or on-air microphones.

Processing Presets

A variety of ready-to-use factory processing presets are provided, carefully tailored for different processing goals and formats. You can select a factory preset, confident that it will sound great just as it is. Or use a factory preset as a starting point and create a custom sound for each announcer, then save the new settings as a personalized user preset. In a facility with multiple microphone processors, presets saved in one unit can be easily copied to the others.

Wheatstone Talent Control Interface

The Wheatstone Talent Control Interface software can reside on an air studio/control room PC and gives talent the ability to recall presets from any Vorsis microphone processor without allowing processing adjustments. All parameters of the M4-IP are controlled using the included Windows-based GUI. Voice talent can activate his or her own personal sound at the press of a button using the Talent Control Interface, a special GUI designed for preset recall only.


Features:
  • Extremely high performance microphone preamplifiers with 48V phantom power
  • Four completely independent processing channels
  • All digital, field proven Wheatstone-designed advanced processing algorithm
  • Phase Scrambler to correct asymmetrical voice waveforms
  • High- and low-pass filters as well as an adjustable High-Q notch filter
  • Fully adjustable downward expander
  • Precision de-esser sibilance controller
  • Four-bands of EQ: low-frequency shelving, two-band parametric, high-frequency shelving
  • Compressor: broadband, two, or three bands
  • Final precision peak limiter ? can be defeated if desired
  • TCP/IP-based remote control from anywhere via Vorsis Remote Control Software
  • Talent Control Interface software for preset recall without processor control
  • Password controlled access and control-less front panel for keeping settings secure
  • Full metering of input and output levels and all signal processing
  • FFT and oscilloscope displays of pre and post processing audio
  • Requires only one rack space



Specifications:

Specs For M4IP-USB:

FACTORY PRESETS
Factory presets are pre-installed and write protected.
New factory presets can be down­loaded from the
Wheatstone-Processing.com web site and installed
via the Windows-based GUI software.

USER PRESETS
Storage for 80 presets in on-board non-volatile memory, unlimited storage on host PC.

AUDIO INPUTS
Microphone XLR-F connectors: four
Electronic differential: >2KΩ (bridg­ing)
Optimum source impedance: 200Ω
Phantom Power: 48VDC, switchable on/off
Gain: -10dB to +70dB in 1dB steps
Frequency response: ±0.2dB 20Hz-20KHz
Equivalent input noise (EIN): -128dBu
THD+N: <0.03%, 20Hz-20kHz, -50dBu input
SMPTE DIM: 0.00007%

AUDIO OUTPUTS
Line-level output Two RJ45 to StudioHub standard
Reference Level: 0VU=-20dBFS
Output Sample Rates: 44.1kHz or 48kHz
Balanced: 110Ω AES-3 0VU=-20dBfs
Electronically balanced : <10Ω source impedance
Optimum load impedance: >600Ω
Maximum output level: +24dBu

FILTERS
Asymmetry filter Phase rotator, 4th order allpass,
switchable in/out
High-pass: 24dB/octave Butterworth
Adjustable: 20Hz-1kHz
Low-pass: 24dB/octave Butterworth
Adjustable: 1-20kHz

DOWNWARD EXPANDER
Threshold Adjustable: -60dBFS to 0dBFS
Depth Adjustable: 0-40dB
Close Adjustable: 50ms-3s

DE-ESSER
Control: Recursive-style
Threshold Adjustable: -10dBFS to -60dBFS
Release time Adjustable: 50ms-500ms
De-ess frequency Adjustable: 20Hz-20kHz

PARAMETRIC EQUALIZER

Routable: Pre or post compressor

Band 1: Shelving
Adjustable: 20-200Hz
Boost/cut: ±14dB

Bands 2 and 3: Parametric
Adjustable: 20Hz-20kHz
Boost/cut: ±14dB
Bandwidth: 0.2-3.0 octave

Band 4: Shelving
Adjustable: 2kH-20kHz
Boost/cut: ±14dB

COMPRESSOR
Control: Broadband
Threshold: -10dBFS to -50dBFS
Attack time: 0.2ms-1s
Release time: 33ms-1s
Ratio: 1:1-20:1

FINAL LIMITER
Control: Zero-overshoot look-ahead limiter
Threshold: fixed at -6dBFS
Attack: automatic
Release: automatic

CONTROL

1000BaseT Gigabit Ethernet

USB
Four independent USB ports

PHYSICAL
Dimensions:
19”/48.3cm wide

1.75”/4.5cm high

13.25”/33.7cm deep
(15.25”/38.7cm deep w/rear connectors)
Weight: 10.35lbs/4.69kg
Shipping weight: 14lbs/6.4kg
Power: 90-120VAC, 50-60Hz, 22VA


Common Specs to all BLADE-3s:

LOGIC I/O
Connectors: RJ-45 (2), 12 channels
Voltage: +5VDC to GND
 +5VDC and GND provided
Current: 100mA max source/sink

ETHERNET
Connectors: RJ-45
Cable: CAT5E or CAT6
Audio transport:
Gigabit Ethernet

1000BASE-T, used for all
BLADE-3-to-BLADE-3 audio traffic
Utility interface: 100BASE-TX for future use

SYSTEM
Sample rate:
44.1 or 48kHz, user-
selectable in software
Sync:
Internal or external,
External sync input
Reference level: 0dBFS=+4dBu (+4dBu=1.23VRMS)
Latency:
0.5mS, BLADE-3 to switch to BLADE-3

PHYSICAL
Dimensions: 1RU

19”/48.3cm wide
1-3/4”/4.5cm high
13-1/4”/33.7cm deep
15-1/4”/38.7cm deep
with connectors
Shipping weight: 14lbs/6.4kg
Power consumption: 23VA, 12W
