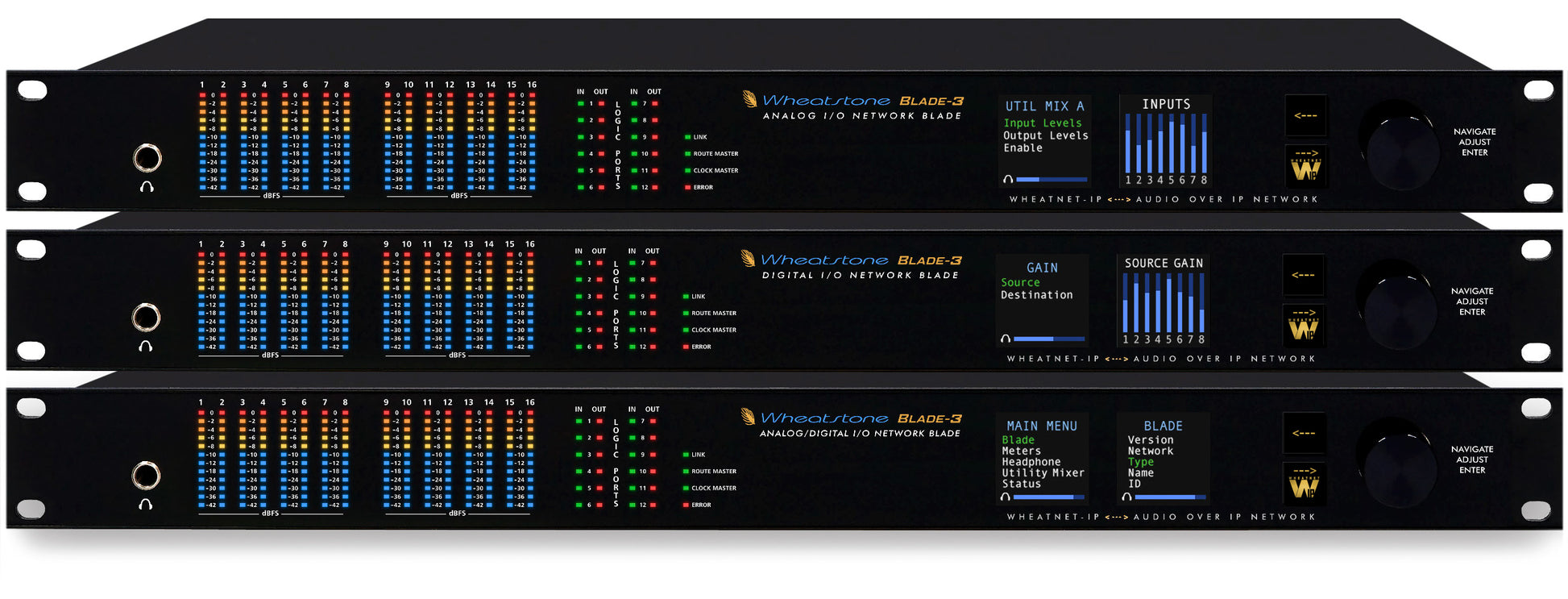

IP audio is now established as THE networking standard for broadcast. Wheatstone, a leader in broadcast audio networking since 2000 and the first to bring complete networking solutions to the IP Audio world with our WheatNet-IP Intelligent Network, has superior solutions that cover every broadcaster's needs - now and into the future. And with our full support of AES67, Wheatstone's BLADE-3s can interface with any AES67 compatible gear in the market to transport audio, making our gear completely format agile.

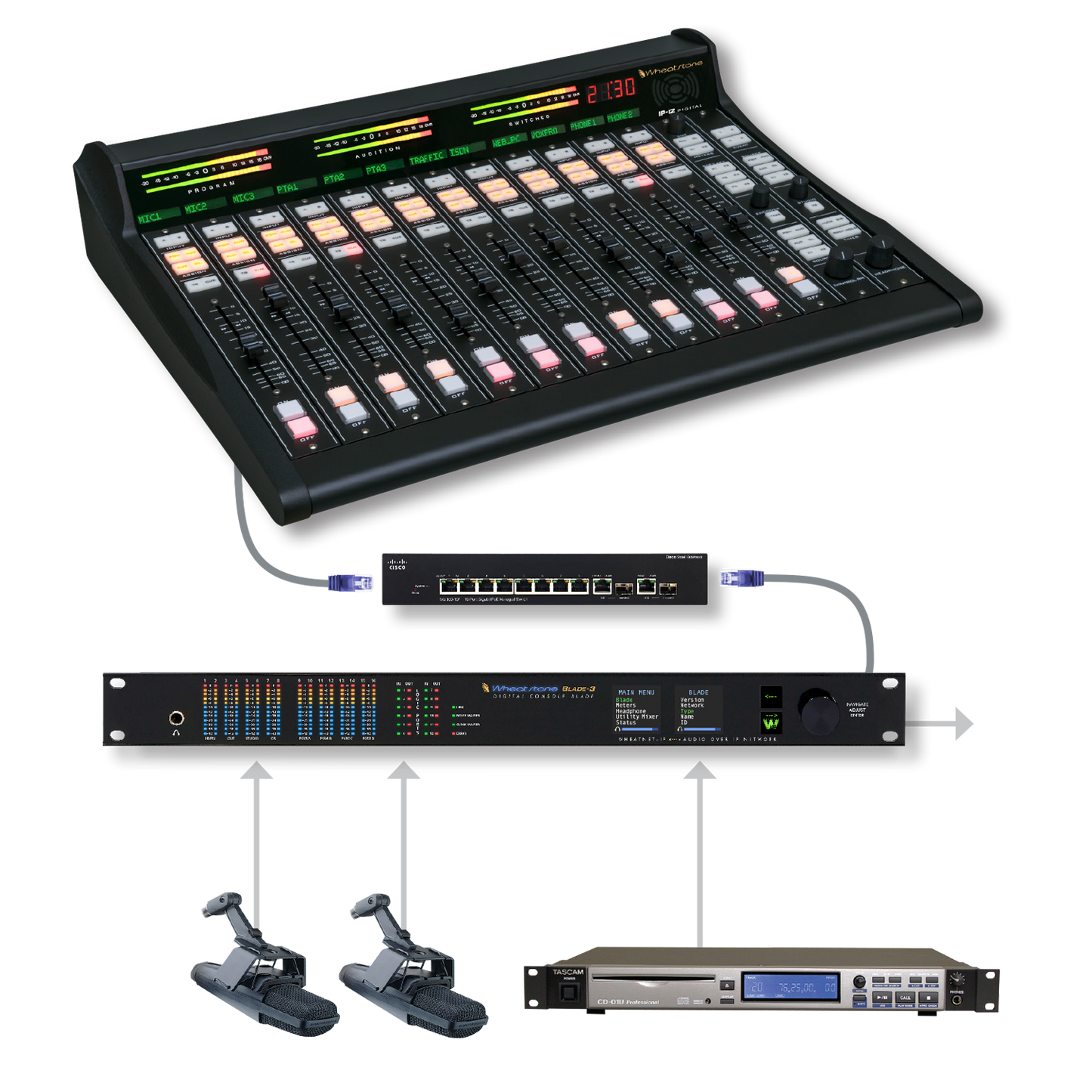

Tapping into the power of WheatNet-IP Intelligent Network technology through the use of the included IP88CB Console Audio BLADE, it’s a perfect low-cost, small-footprint solution. AND it’s a great way to start or expand a WheatNet-IP network.

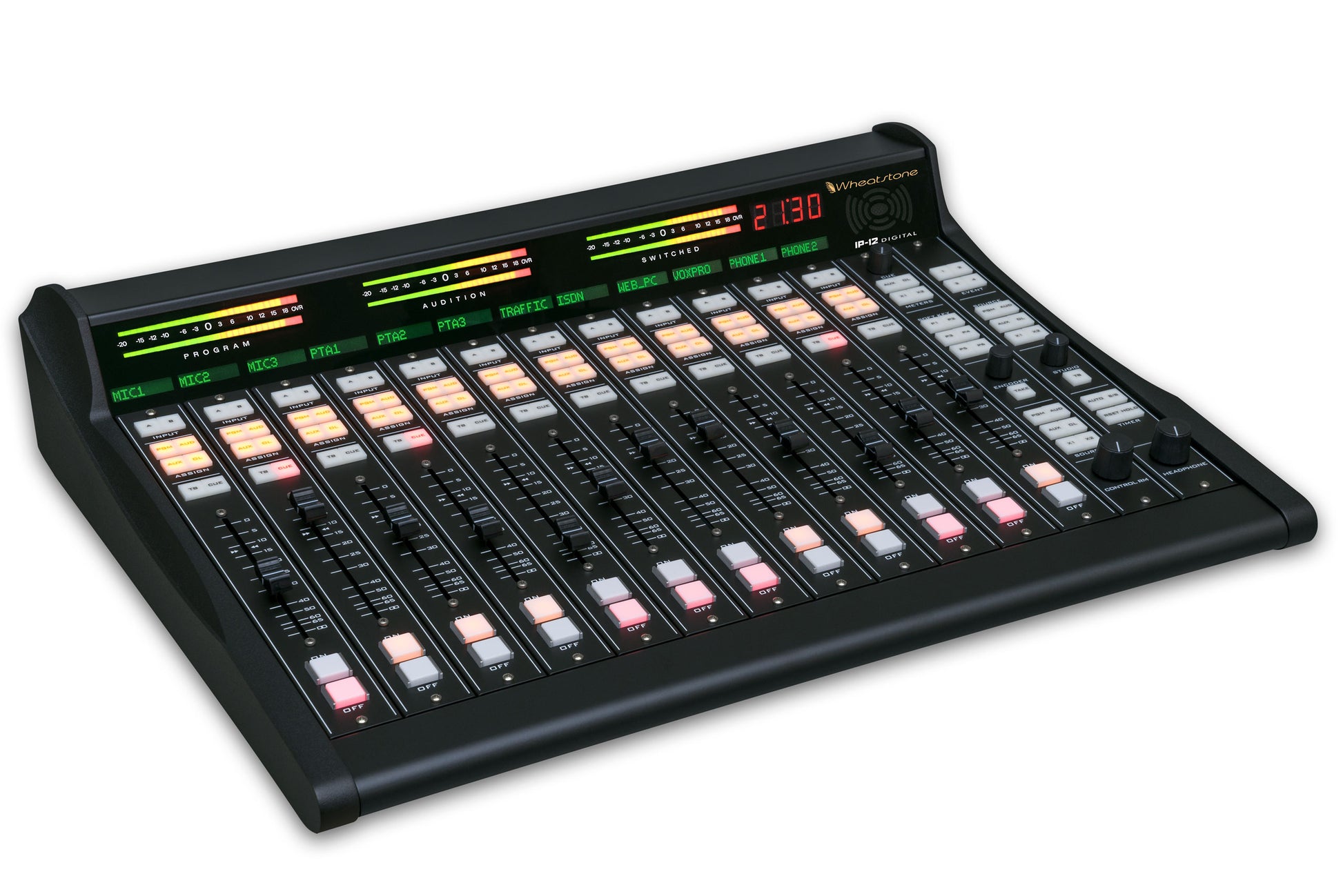

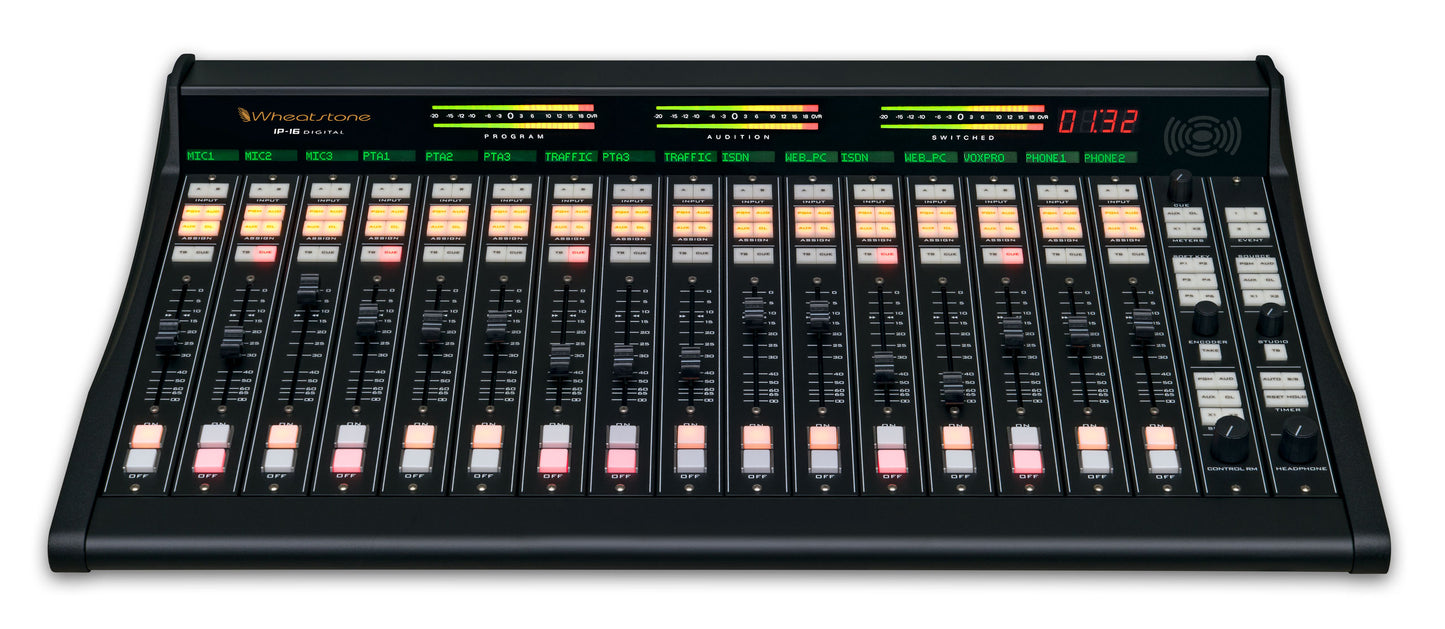

The IP-12/IP-16 starts with a 12- or 16-fader control surface that looks and feels exactly like a self-contained console. Each of the input modules is equipped with an LED source name display and an A/B source selector whose sources can be set via a rotary encoder in the master section.
Each input module has access to four program busses and has cue and talkback switches. A 100mm high-quality long-throw fader and lighted channel ON/OFF switches round out the module.


  • 12- or 16-fader compact control surface

  • 4 stereo program busses

  • LCD source name displays

  • LED-illuminated switches

  • A/B source selector on each input module

  • Guarded channel ON/OFF switches

  • Headphone output with built-in amplifier and level control

  • Four event switches

  • Control room and studio monitor outputs with independent source selectors and level controls

  • CUE bus with built-in amplifier and speaker

  • Three pairs of bright, 30-segment stereo bargraph meters

  • Six programmable buttons

  • Individual Channel Mix-Minus outputs with talkback interrupt

  • Source Selectable Studio Output with talkback interrupt

  • On-board timer

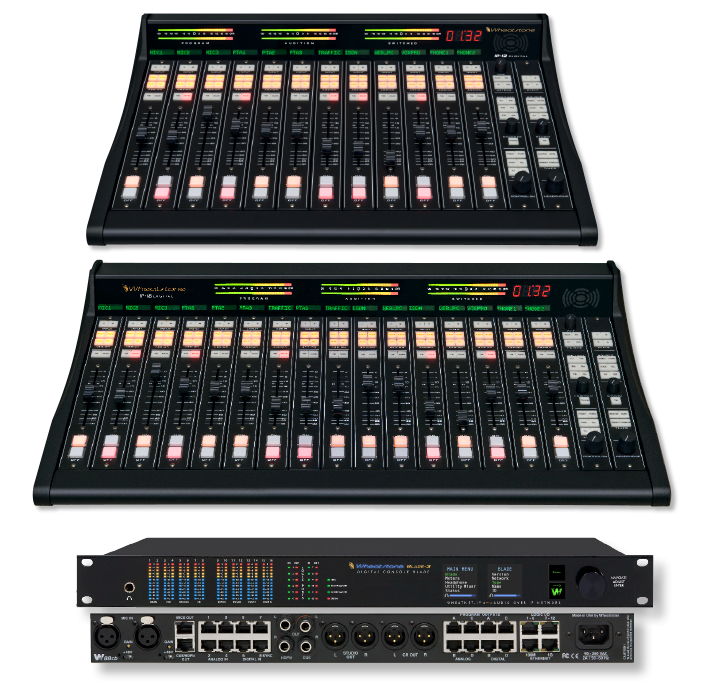

  • Uses the IP88CB Console Audio BLADE, WheatNet-IP compatible

  • Modular control surface design
