Wheatstone LXE Series - Console Frame Package

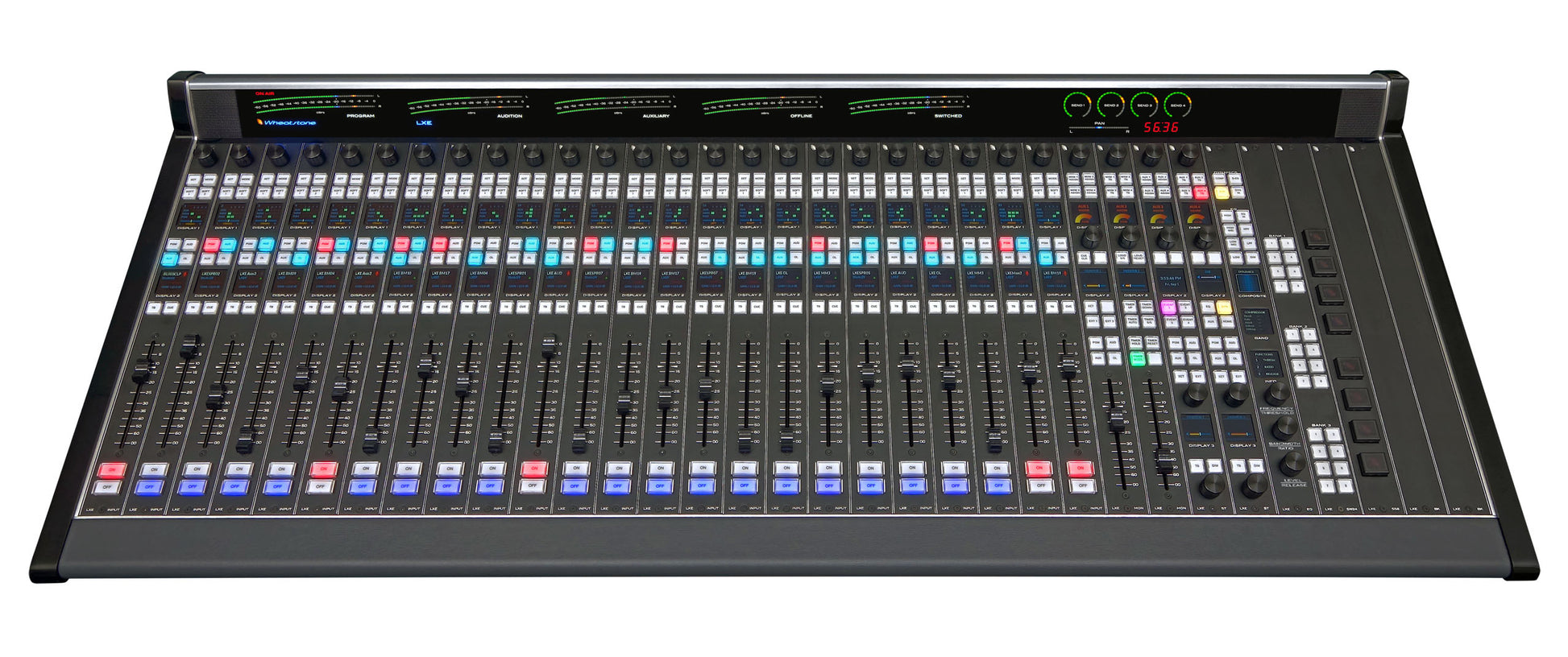

Meet the LXE Console/Control Surface

The LXE is designed to be your console. Every knob, every button, every display can be programmed to accommodate virtually any application you come up with. No need to compromise anymore.

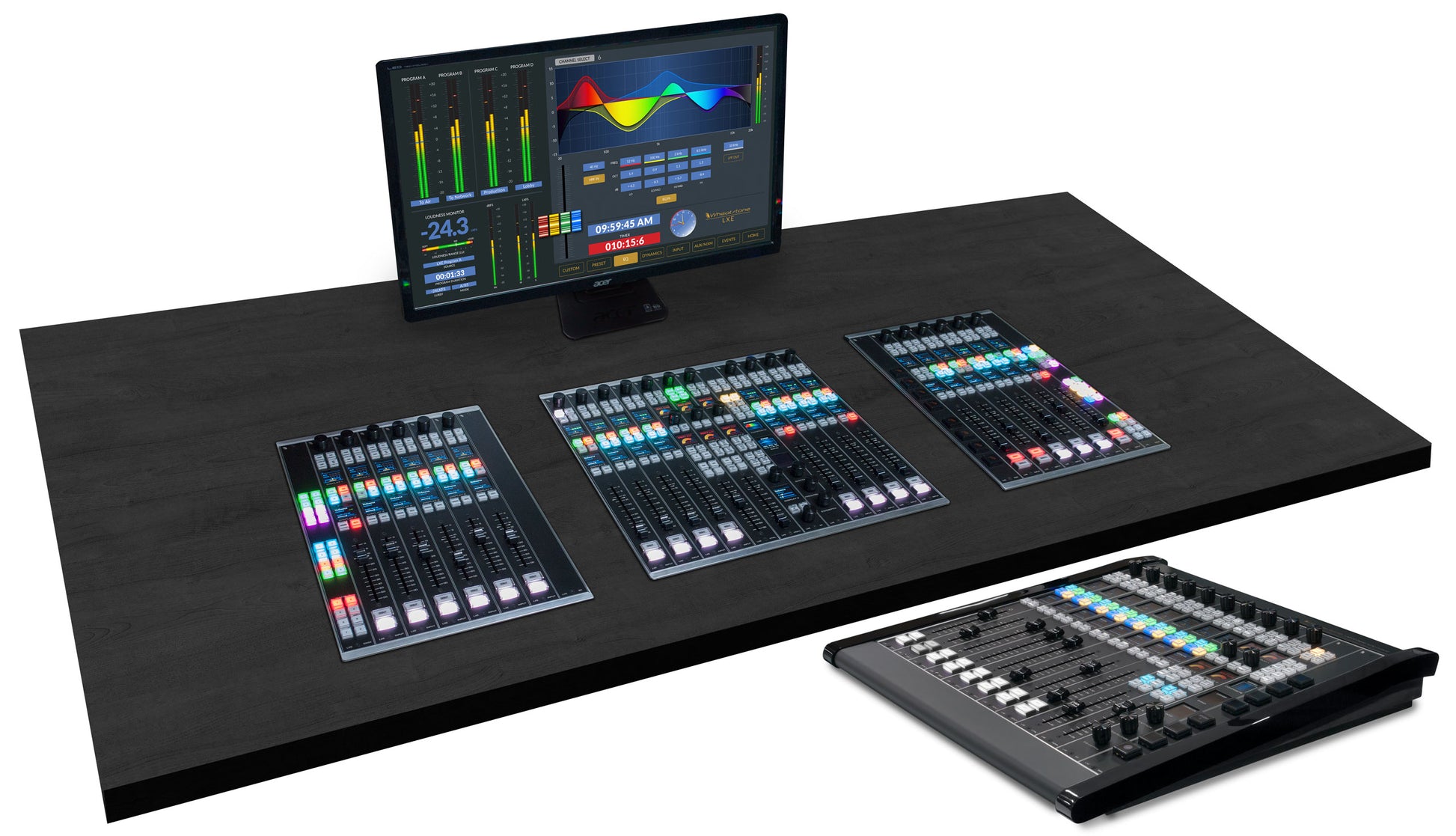

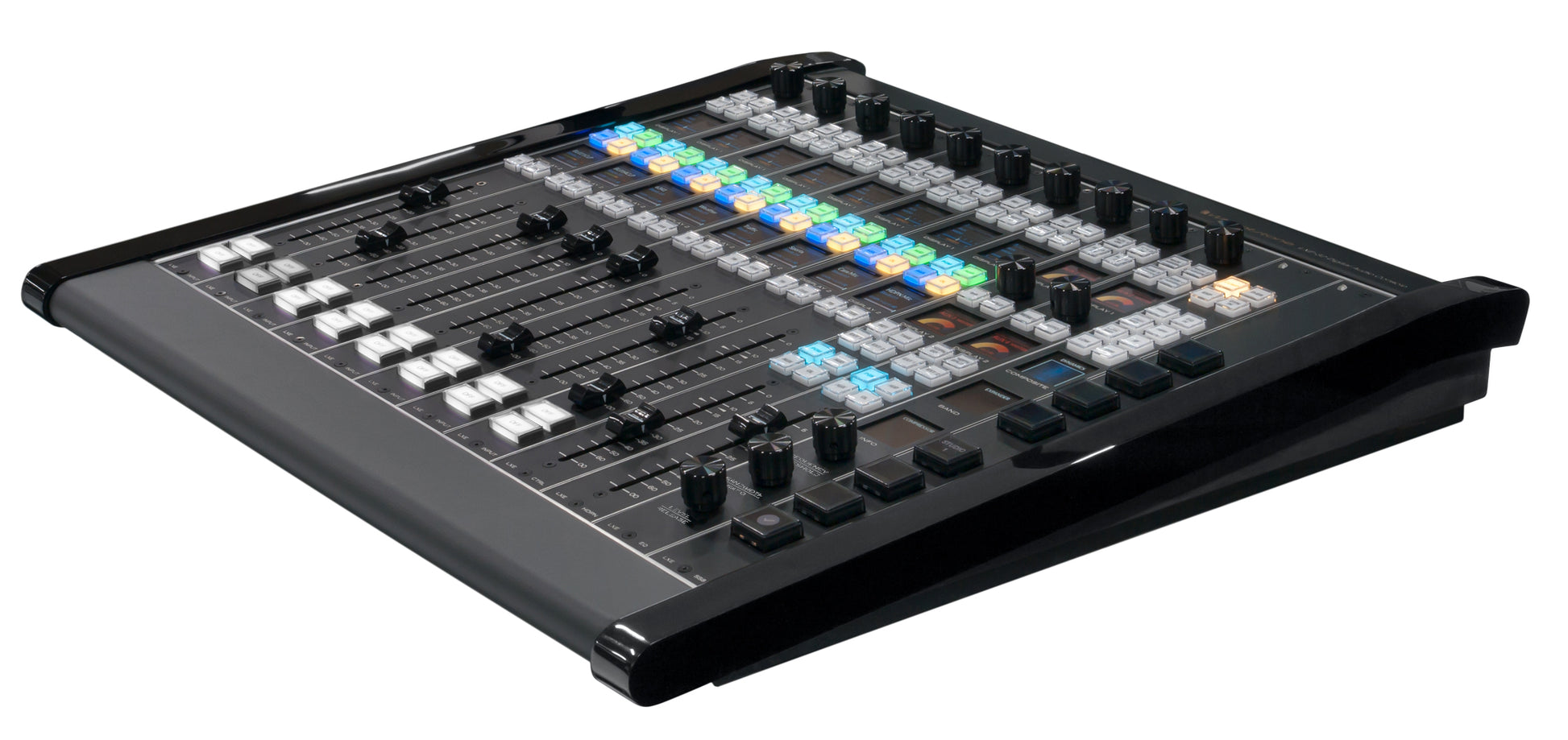

LXE is our most modular console ever. Simply group the modules into bays and connect them to your network with a single CAT6 cable. This allows you to use them in tabletop frames, with or without a meterbridge, with no need to cut furniture. Or, you can flush mount them right into your table, easily splitting them as you need.

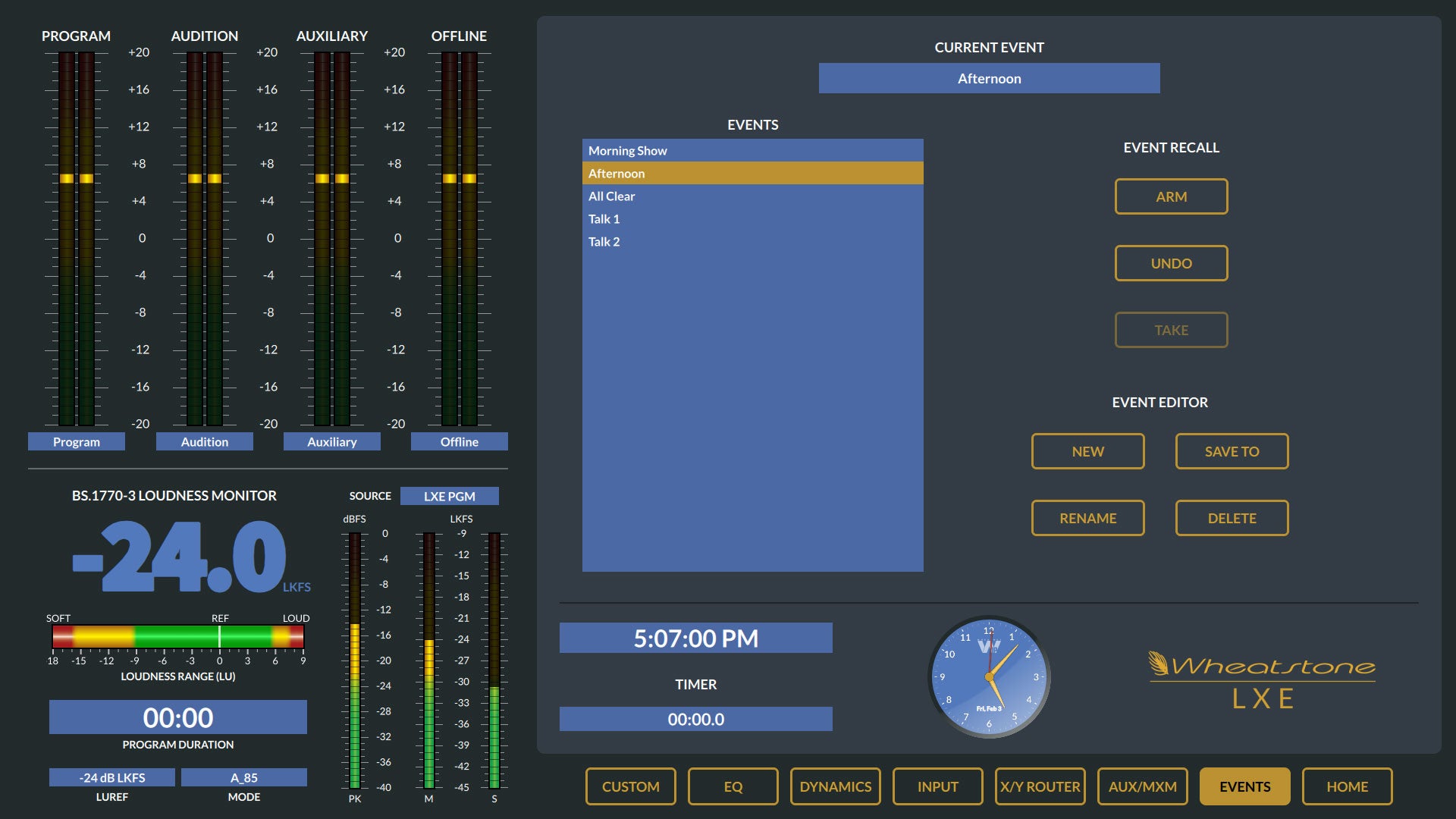

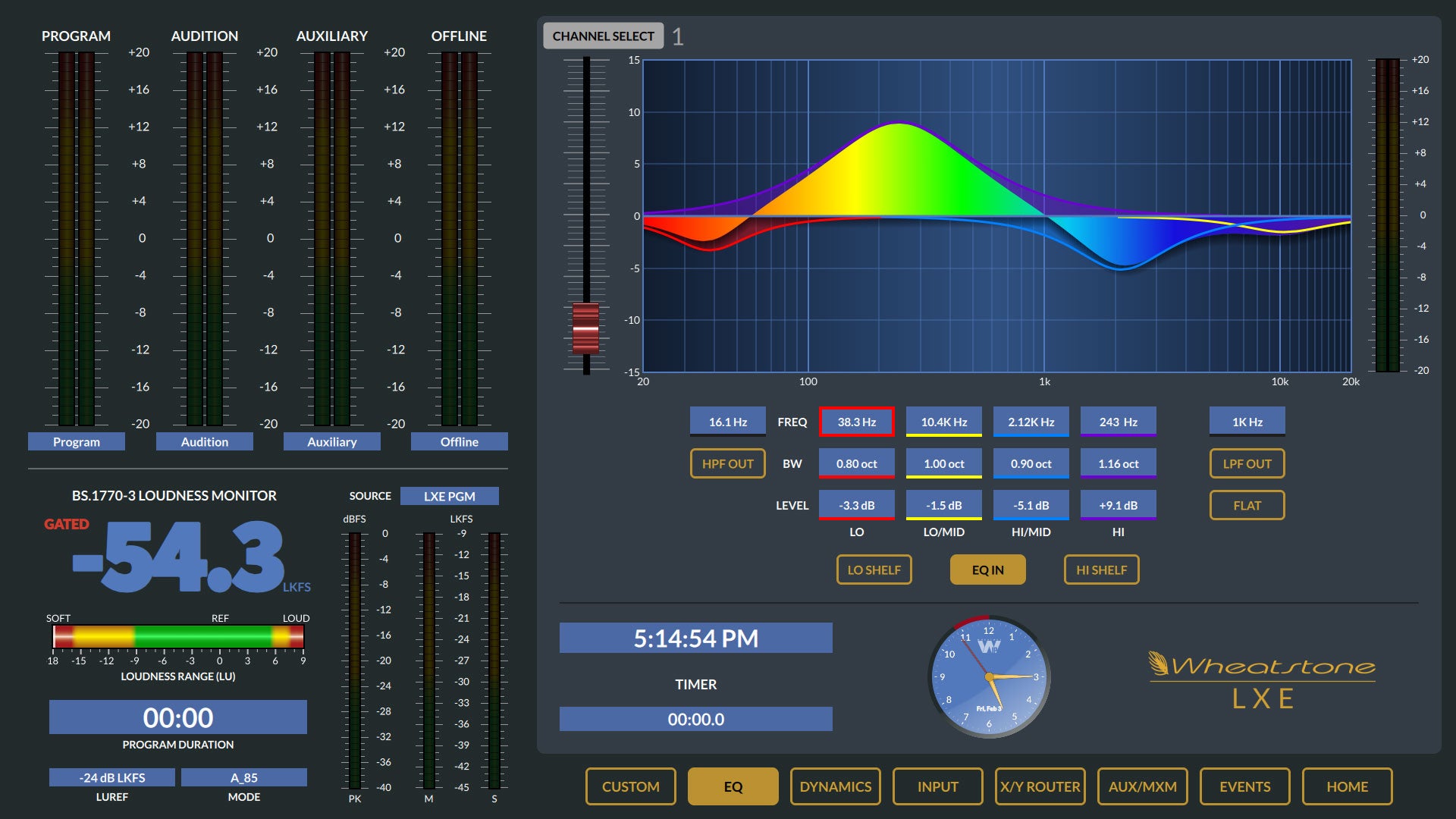

Full color OLEDs reflect your programming, and the touchscreen GUIs let you interact with your audio in fresh new ways to do everything from pinching and dragging EQ to setting up router crosspoints in your network. ScreenBuilder™ LXE is included so you can create your own touchscreens. And ConsoleBuilder™ is a GUI-based app that allows you to program and configure your hardware surface.

Simply put, there’s never been a more customizable way to work.

The LXE Series:

Included in LXE-1308T package:
13 Position LXE frame with:
• 2 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp

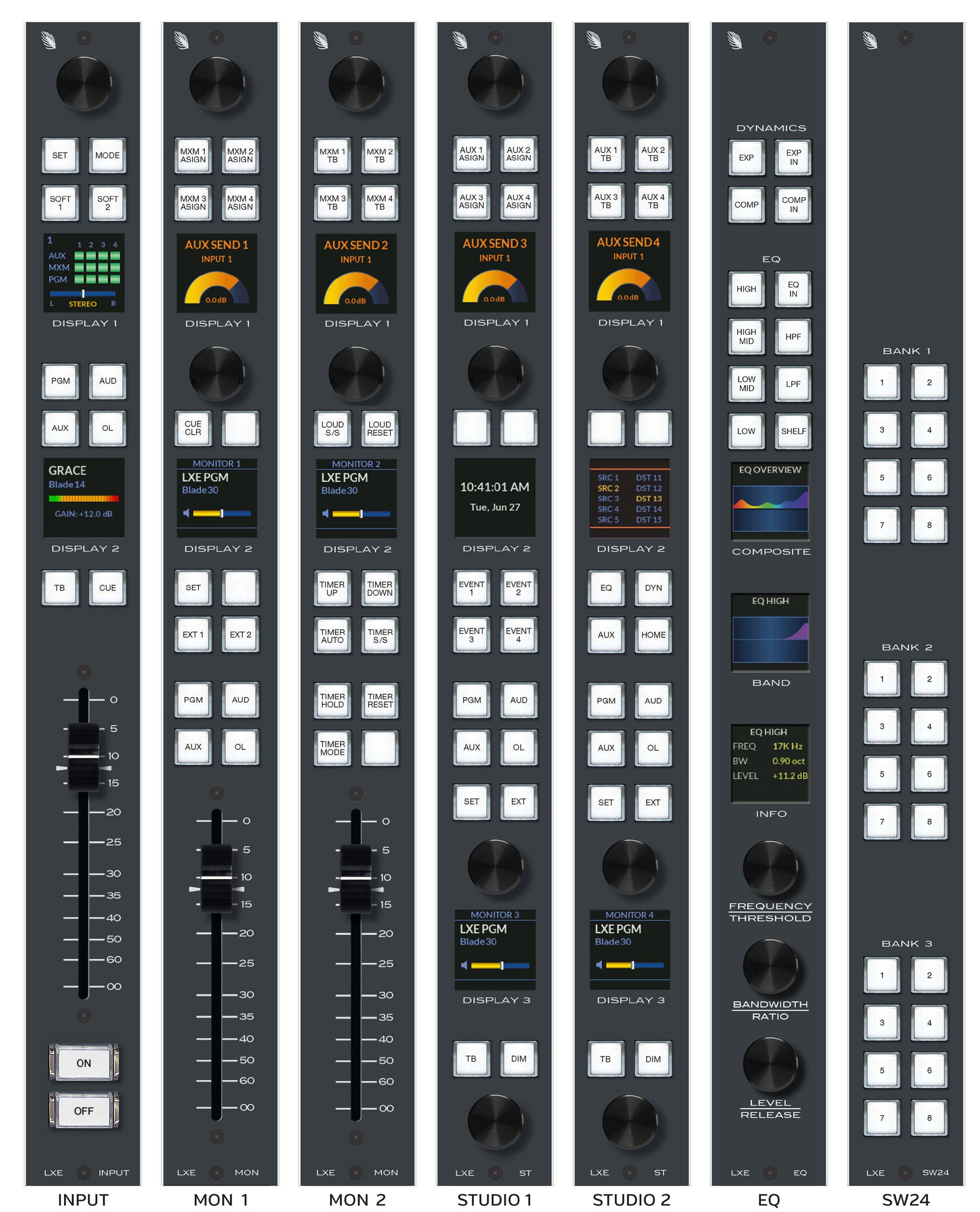

• 8 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 2 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual

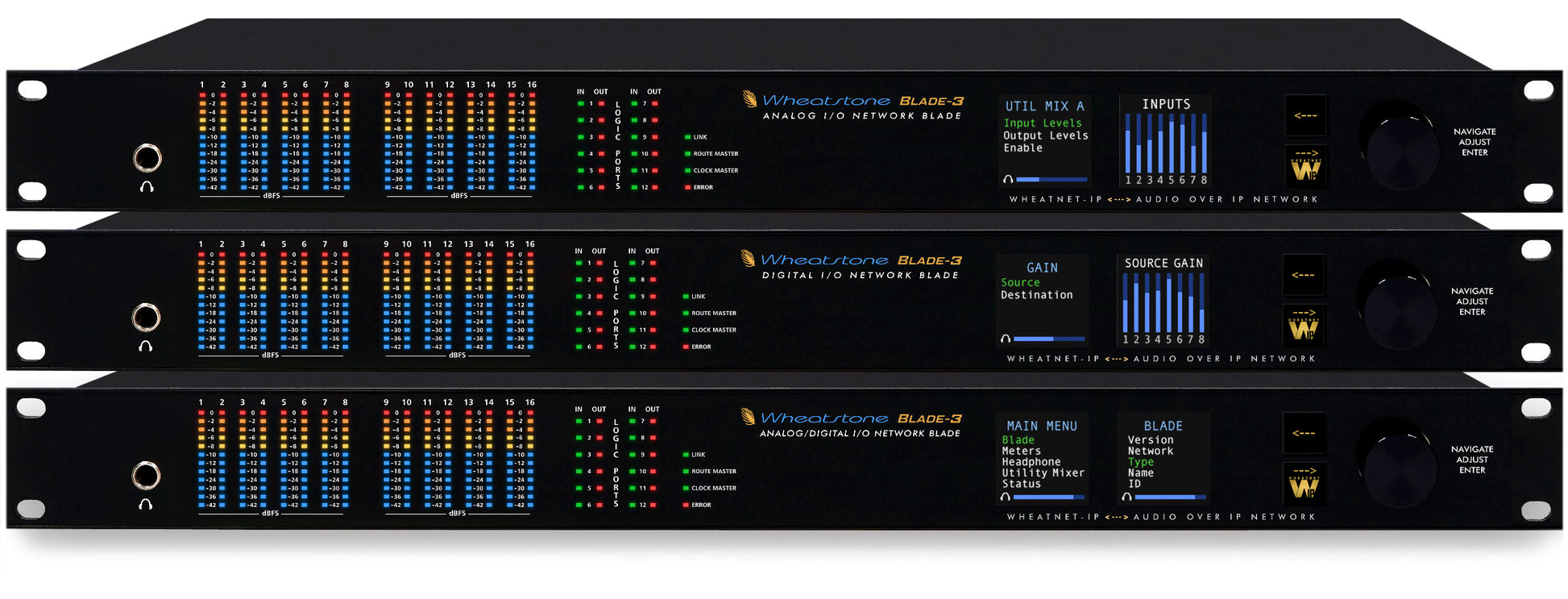

• 1 LXE Mix Engine Blade

Included in LXE-1708T package:
17 Position LXE frame with:
• 2 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 8 IP-LXE Input Modules )
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 6 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade



Included in LXE-1712T package:
17 Position LXE frame with:
• 2 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 12 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 2 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-2112T package:
• 21 Position LXE frame with:
• 2 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 12 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 6 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-2116T package:
21 Position LXE frame with:
• 3 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 16 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 2 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-2516T package:
25 Position LXE frame with:
• 4 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 16 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 6 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-2920T package:
13 Position LXE frame with:
• 2 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 8 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 6 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-2924T package:
29 Position LXE frame with:
• 5 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 24 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 2 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-3324T package:
13 Position LXE frame with:
• 2 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 8 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 6 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade


Included in LXE-3328T package:
33 Position LXE frame with:
• 5 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 28 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 2 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-3732T package:
37 Position LXE frame with:
• 5 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 32 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 2 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade

Included in LXE-4532T package:
45 Position LXE frame with:
• 5 Pairs of LED Program Meters, Aux Send Level
• Displays, Cue Speaker, Headphone Amp
• 32 IP-LXE Input Modules
• 1 MON-LXE-1 Monitor Module
• 1 MON-LXE-2 Monitor Module
• 1 ST-LXE-1 Studio Monitor Module
• 10 BK-LXE Blank Modules
• 1 LX-HPJA External Headphone Jack
• 1 SPS-1600 Power Supply
• 1 Power Supply Cable
• 1 LXE User Manual
• 1 LXE Mix Engine Blade
