Wheatstone MP-532 - FM/AM/HD/Stream Multi Processor

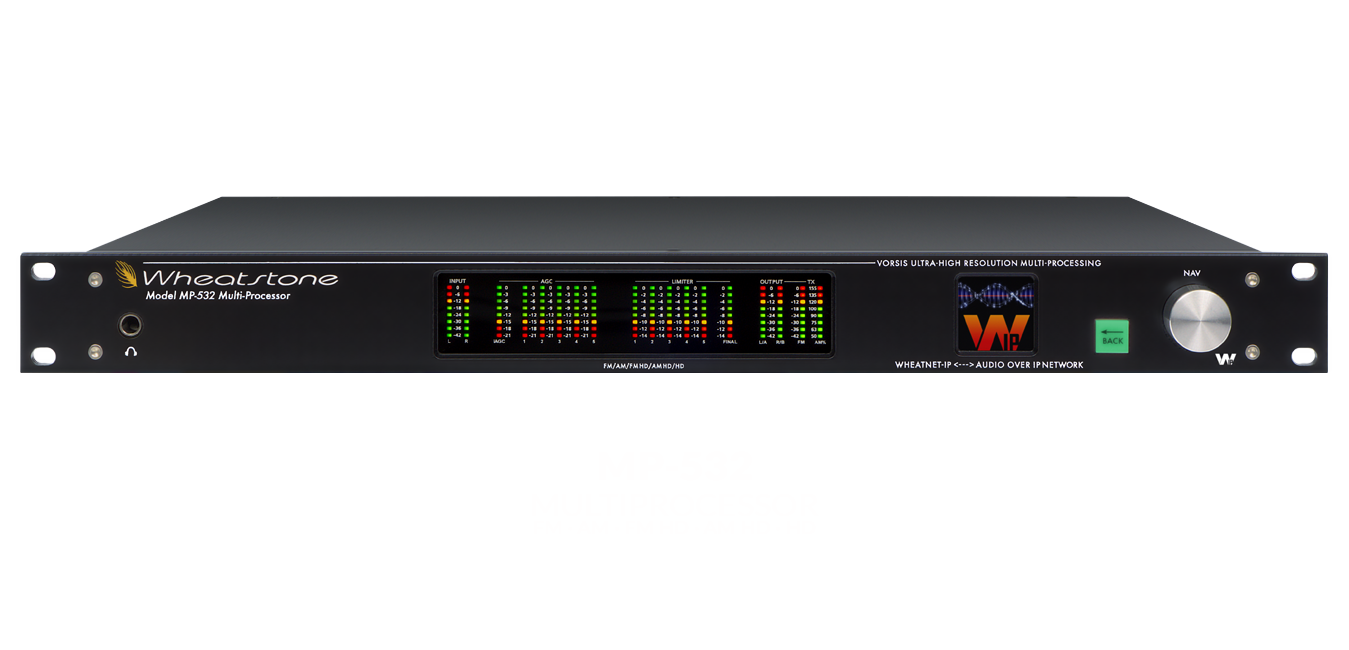

Wheatstone's new MP-532 audio processor is an affordable single-space rack unit that can handle any and all your broadcast processing applications – FM, AM, FM HD, AM HD, HD-only, or Streaming. It's priced so you can use multiple boxes where and how you need them without having to commit to a large expensive box with bells and whistles you may not need. It's the best way to install exactly what you need without spending a penny more than your budget.

The MP-532 offers tools that can provide the most clarity and articulation of any processor on the market. Breathtakingly airy and silky highs with detail that you get from the finest hifi audio gear, mids that never overstep their thresholds insuring mud-free warmth and presence, and deep powerful lows that are sculpted to be richly detailed and free from the muck that bogs them down in nearly every other processor.

All that comes without having to give up volume - indeed, just the opposite. MP-532 gives you "loudness-ability" courtesy new distortion canceling algorithms and precision look-ahead limiters to provide pristinely clean audio AND dial-dominating loudness.

There's full FM RDS capability so that $500 RBDS/RDS encoder you were going to have to buy to generate song, title and album data won't be needed. MP-532 has a built-in RBDS/RDS encoder.

A multiplex power controller is included, saving yet another costly unit to meet the ITU-R BS.412-7 modulation requirements for reducing adjacent channel interference.


Features common to all signal paths:

  • Input accepts analog, AES3 and WheatnetIP audio

  • AES3 digital input accepts 32kHz to 96kHz sample rates

  • AES3 digital output sample rate automatically synchronizes to AES3 digital input

  • Processing may be in stereo or mono fed from left or right channel

  • Front panel headphone jack for monitoring input source audio and processed output

  • Variable high pass filter and voice phase rotator

  • Dynamic L/R correlation meter for assuring proper stereo channel phase

  • Front panel setup and configuration reduces the need for a PC during installation

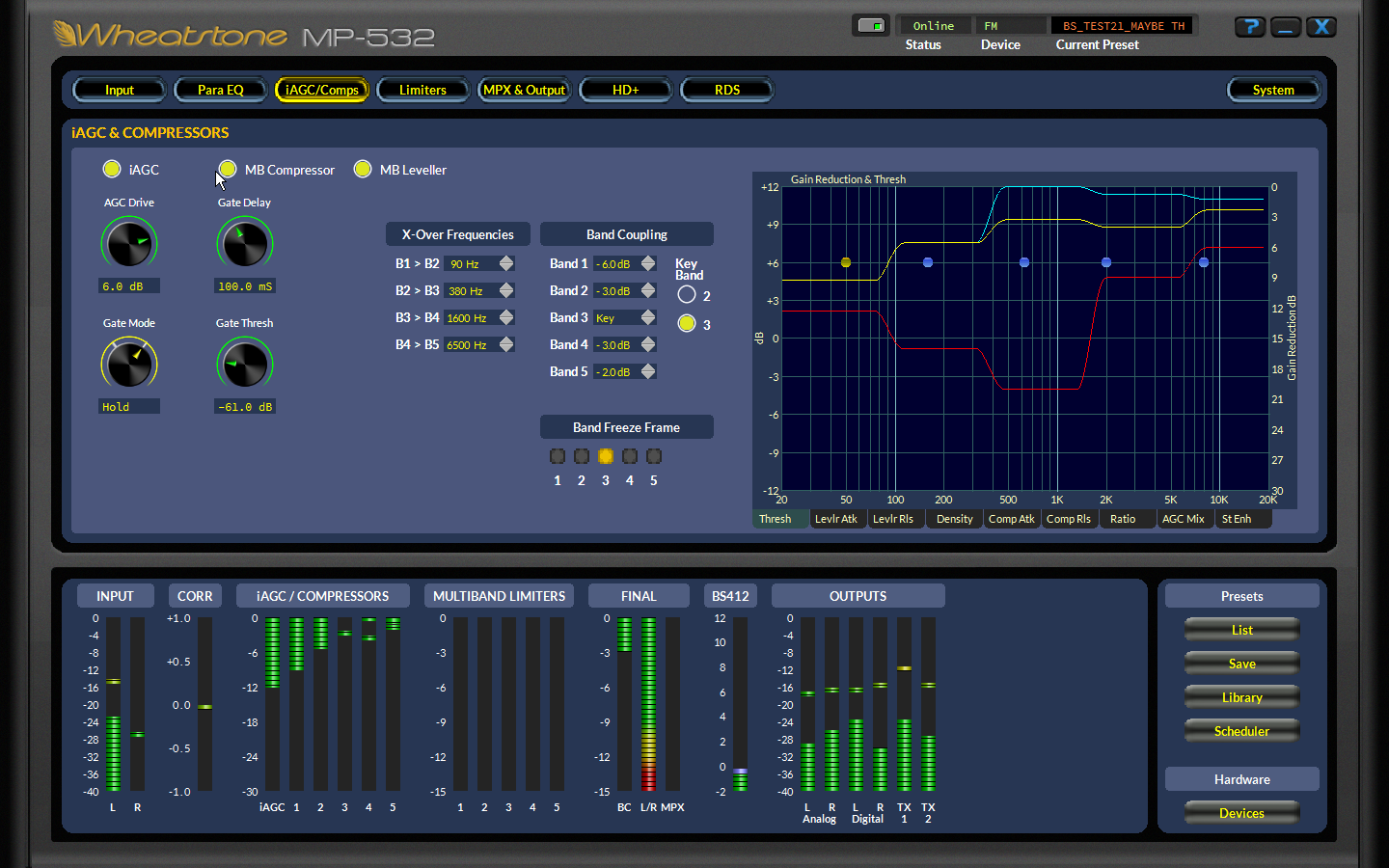

  • PC-based Graphical User Interface, for easy setup, navigation, and remote control

  • Four GPI triggers for remote control triggered preset changes

  • Ethernet-based remote control via rear panel 100BaseT Ethernet port

  • Four-band equalizer: low/high shelf plus two band parametric

  • User-adjustable multiband crossover frequencies

  • Multiband windowing spectral manager assures spectral consistency across program types

  • Independent multiband compressor and leveler may be operated separately or in combination

  • Newly developed Bass Management System

  • High-performance low distortion multiband limiters

  • Full metering for all Input and Output levels and Dynamics processing

Features common to AM signal path:

  • Specialized asymmetrical AM clipper minimizes distortion

  • Transmitter tilt and high frequency pre-equalizers for both transmitter outputs

  • Dual transmitter outputs and audio bandwidth filters, including NRSC

  • AM outputs may be operated independently or in M/S mode for AM stereo

  • Convenient polarity inversion for easy transmitter +/- polarity matching

  • Up to ten seconds of AM/HD diversity delay

  • Test oscillator with adjustable frequencies including LF Tilt Eq test

Features common to FM signal path:

  • New distortion-masked FM peak clipper

  • Specialized live voice algorithm minimizes voice distortion

  • Exclusive stereo multipath controller can enhance stereo reception in weak signal areas

  • Full-feature RDS generator supports static and dynamic RDS/RBDS

  • Precision FM stereo MPX generator with multiplex mask filter

  • Full support for ITU.BS-412 MPX Power regulations

  • Wheatstone® baseband192 built in for 192kHz digital MPX link to transmitter

  • Up to ten seconds of FM/HD diversity delay

  • Test oscillator with adjustable

  • frequencies including Bessel null test

Features common to HD/stream processing signal path:

  • Separate low /high shelf and two-band parametric equalizer for contouring HD/stream spectral balance

  • HD/Stream final processing accepts audio from unprocessed input, output of AGC, or output from multiband limiters

  • HD/Stream processing includes BS.1770 loudness measurement and target loudness controller.

  • Oversampled precision look-ahead limiters for exceptional final peak control

  • Specialized dynamic high frequency protection for low bitrate codecs which can also operate in wideband (>12kHz) and <12kHz modes

  • Precision ITU-BS.1770 loudness metering and controller with adjustable target loudness goals

  • Full ITU-BS.1770 metering including 400mS, 3 second, 10 second, 30 second and long term average loudness
