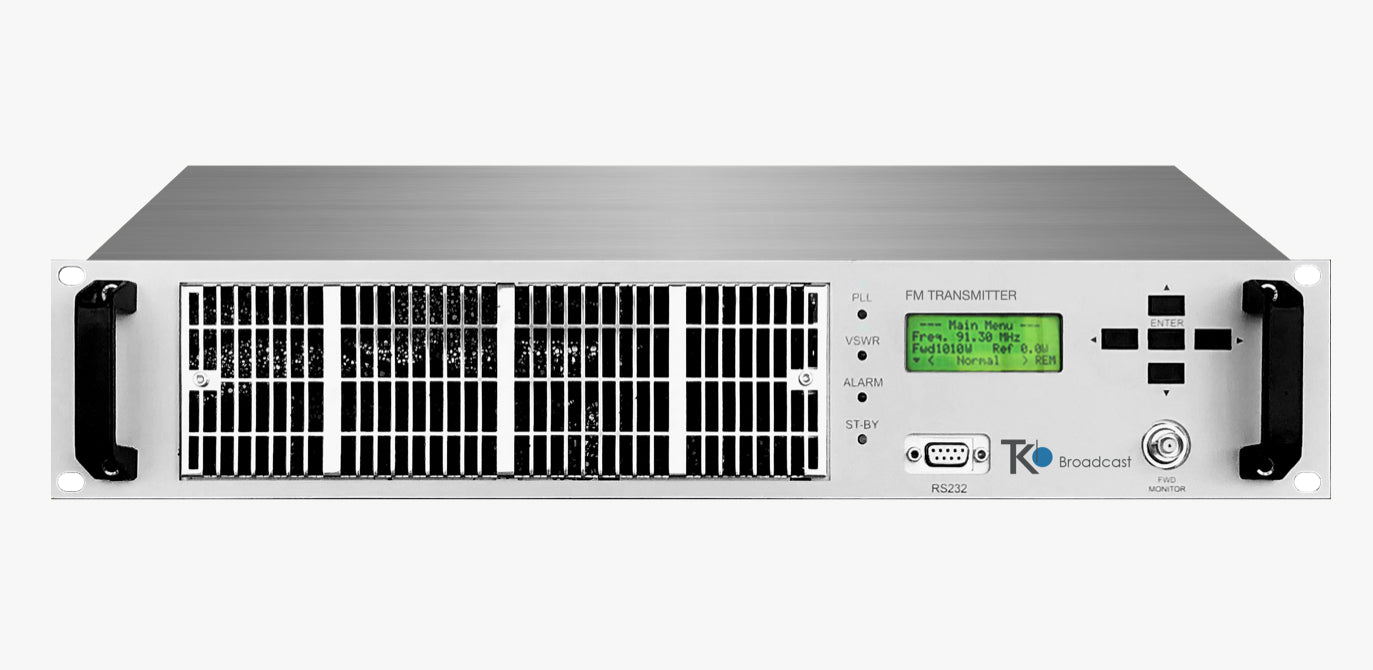

SWAP 300 - 300W FM Transmitter

$3,479.85
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

SWAP 300 -  300W FM Transmitter


DOWNLOAD DATASHEET

SWAP Series Exciter/Transmitter is a Family of FM stereo Exciters/Transmitters that guaran-tees a superior transmission quality and top performances.
Output power from 30 W to 1200W using High Efficiency last LDMOS technology is housed into an ultra-compact cabinet of only 2U heigh.
Is available also in JPN and OIRT frequencies.

SWAP100 can be used as ultra-compact stand alone station, as well as driver in complex high power transmitters and N+1 systems.
For any application SWAP SERIES is the ultimate solution that meets most demanding customer’ requirements and guarantees professional features at affordable price.

FEATURES

TECHNICHAL CHARACTERISTICS
SWAP SERIES EXCITER/TRANSMITTER 30W TO 1200W

  • Frequency Range: 87.5 ÷ 108.00 MHz, Programmable in 10 KHz steps
  • On request 66 ÷ 74 MHz (OIRT), 76 ÷ 90 MHz (JPN) Bands.
  • Frequency Stability: better than ±150Hz from -10 to +50°C
  • Max deviation: +/-150kHz.
  • Frequency Control: Synthesizer μprocessor control.
  • Power Output: 30W, 50W, 100W, 150W, 300W, 600W, 1200W. Adjustable from 0W to maximum power.
  • Output Impedance: 50 ohm.

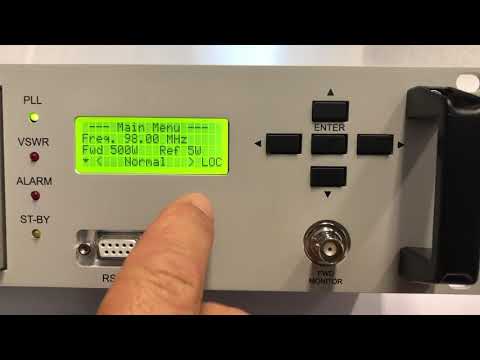

  • Display: forward/reflection power and modulation indicator
  • Type of Modulation: Direct frequency modulation of carrier frequency, F3E Stereo with Subcarrier and Mono .
  • Lock in Time: Typ. 4 second.
  • Off Lock Attenuation: ≥ -80 dBc.
  • Modulation Capability: ±150 KHz.
  • Modulation Mode: Mono, Stereo, Multiplex, SCA, RDS, Aux.
  • Preemphasis: Flat(0)/50/75 μs selectable from front panel.
  • Asynchronous AM S/N Ratio: -60 dB below reference carrier with 100% AM modulation @ 400 Hz, without FM modulation.
  • Synchronous AM S/N Ratio: -60 dB below reference carrier with 100% AM modulation@ 400 Hz with FM modulation ±75 KHz @ 400 Hz.
  • RF Harmonics: Exceeds ETSI/EBU/CCIR/FCC requirements. better than 84 dbc
  • RF Spurious: Exceeds ETSI/EBU/CCIR/FCC requirements. better than 84 dbc
  • Output Connectors: 30W to 600W N type connector, 1200W DIN 7/16 type connector
  • Output power on/off and adjustable from front panel and remotely.
  • Overall Efficiency up to 80%.
  • Monitor RF: -60 dBc, BNC connector
  • VSWR: 1.5:1 Maximum with automatic fold-back at higher VSWR
