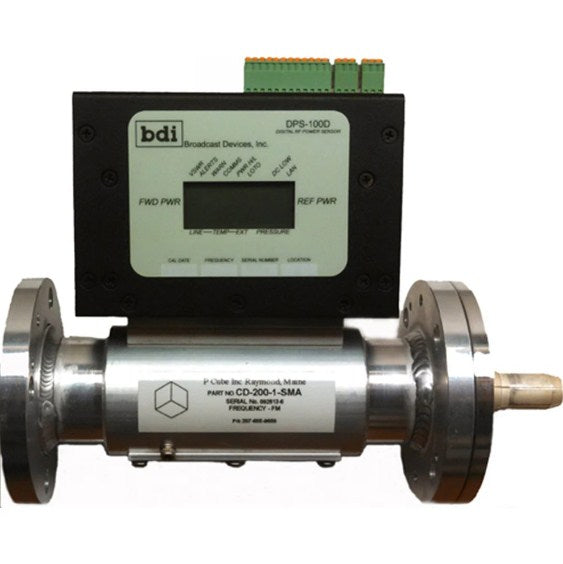

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading.
Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.
Features:
- Simultaneous Forward/Reflected Power Indication
- Onboard Backlit LCD Display with proprietary 3 strike protection system for sustained high VSWR conditions
- Onboard Web Server for remote interrogation of parameters
- Transmission Line Surface
- Temperature Indication - Second Temperature Sensor input available*
- Transmission Line
- Pressure indication**
- Phantom Powered RS-485 Communications bus for easy interconnection of other sensors using industry standard category 5 cabling or SWP series supervisory chassis available from BDI
- Operate standalone or part of a larger system with up to 255 additional DPS-100D sensors
- Analog 0-5 VDC scaled outputs of power indication for remote control input, 8 Programmable General
- Purpose inputs for interlock lock out tag out status, remote reset etc.
- 2 - Form C programmable relays for interlock and alarm indication
- DPS-100D Digital RF Power Measurement System is available in all EIA standard transmission line sizes and includes 4-1/16", N and DIN -7/16
- Flange to Flange Coupler Lengths:
- 7/8" - 6.25"
- 1-5/8" - 6.50"
- 3-1/8" - 7.00"
- 4-1/16" - 7.00"
- 6-1/8" - 10.50"
- Flange to Flange Coupler Lengths:
* Second temperature indication requires the use of BDI P/N TMP-100 temperature sensor
** Requires use of the BDI P/N PSW-100 pressure sensor and requires a suitable gas termination such as the ERI gas barrier assemblies. These gas barrier assemblies are available in many line sizes including 1-5/8", 3-1/8", 4-1/6", 6-1/8", 8-3/16" and 9" EIA transmission line sizes.
The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading. Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create a monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.
