BEETX-1000 transmitter

Sales are Available only in Central and South America. ( Does not include Mexico or the US )

Broadcast Electronics ETX series combines the best characteristics from the Elenos ETG family and the BE STX line of transmitters to deliver a high-performance, cost-effective solution with models from 600 W to 30 kW. Leveraging the highly efficient and compact RF technology of the ETG series upgraded with the latest ruggedized LDMOS RF devices the ETX provides the efficiency, compactness, and reliability you have come to expect.

We didn’t stop there, drawing from BE’s decades of providing the best-sounding FM exciter on the market, we incorporated a digital direct-to-channel FM modulator and ultra-reliable highly efficient hot-pluggable power supplies to deliver the maintainability and robustness of the STX range to provide our customers with a new level of performance and reliability at an exceptional price.

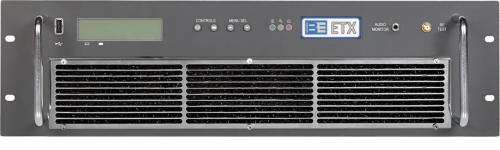

BROADCAST ELECTRONICS ETX-1000. 1000W
FM Transmitter
A 1000W digital FM transmitter designed for
professional broadcasting, combining compact
design and high performance in a 19-inch, 3RU
chassis. Includes an internal digital exciter and
supports analog mono/stereo, MPX, and static RDS
with a universal web interface and RF amplification
using the latest LDMOS transistors,IP input options
include Icecast
2 streaming, AES68, MPX over TS, and MPX over
IP
(in/out) and support for SFN (Single Frequency
Network)
iso-frequency operation. Technical specifications:
AC
input voltage: 96–264 VAC single-phase, 47–63 Hz.
RF
Output: 7-16 DIN female connector. Dimensions:
19" (W)
x 5.25" (H) x 18" (D) / 480 x 130 x 460 mm. Fits a
standard 19-inch rack cabinet. Weight: 38 lbs. (17
kg).
