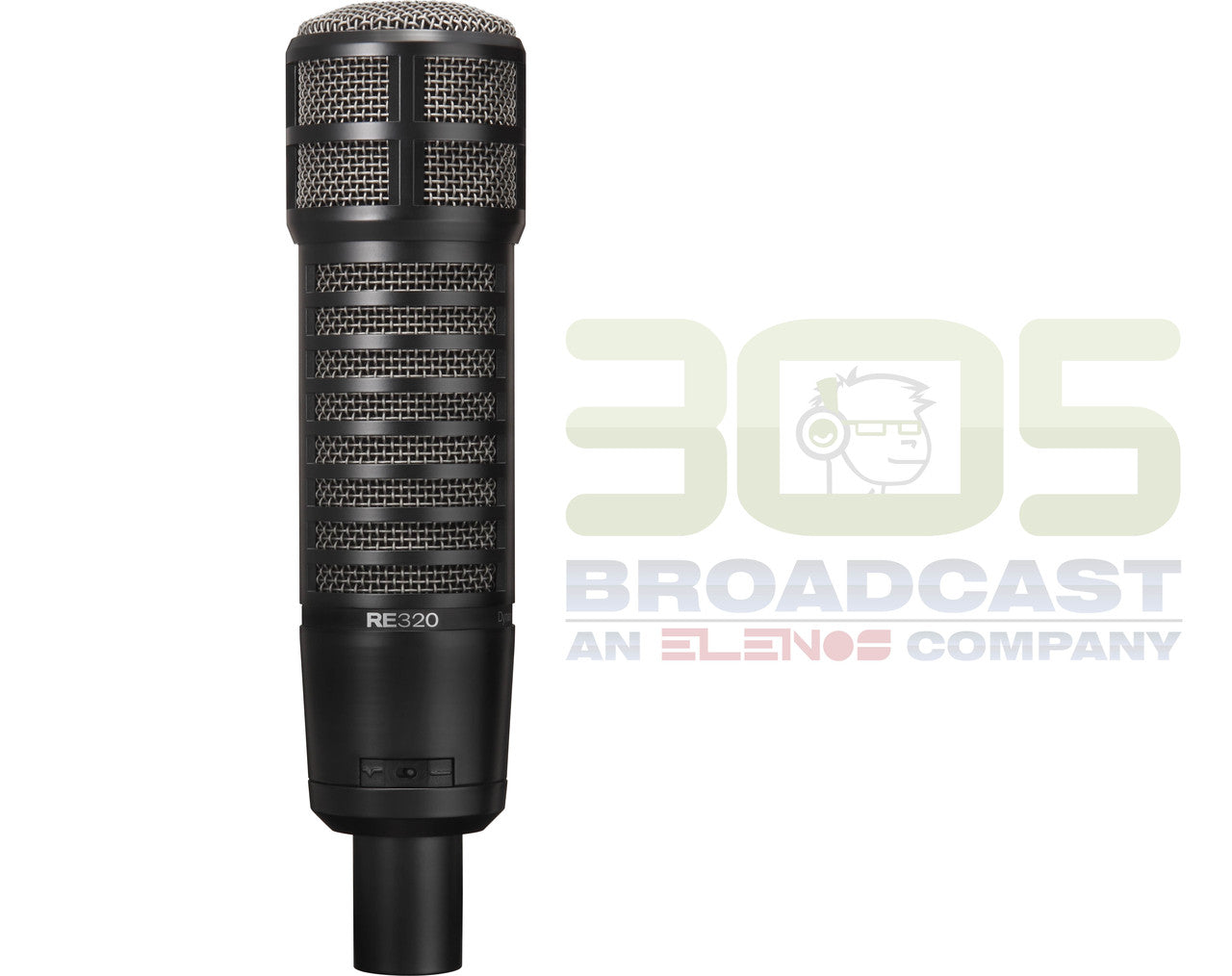

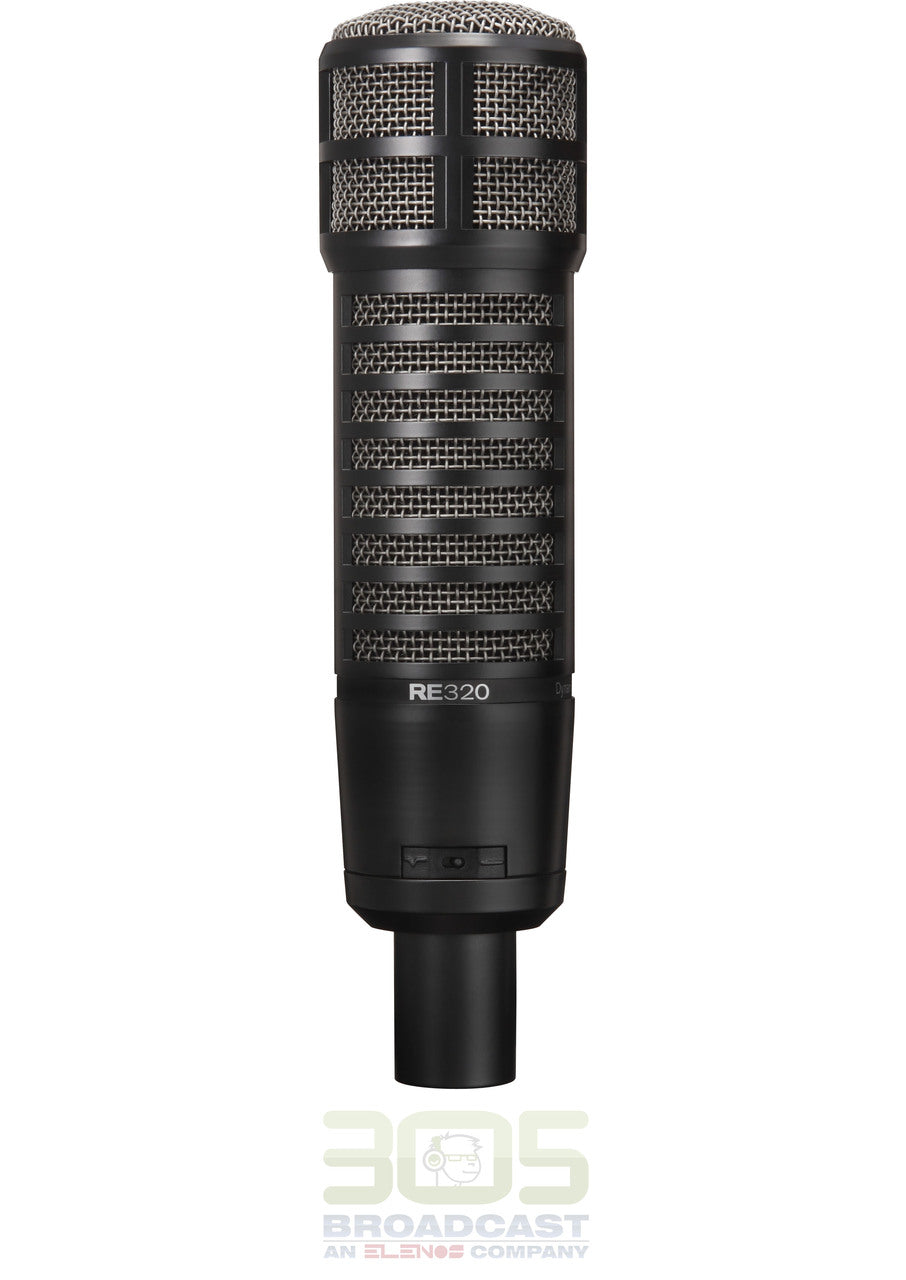

Electro-Voice RE320


RE320

Variable-D dynamic vocal and instrument microphone



Overview:

The RE320 is a professional quality dynamic microphone designed specifically for recording and sound reinforcement applications requiring extremely low noise and the highest level of predictable tonal and transient response. Ideal for capturing vocal and instrument sources, the RE320 delivers unparalleled detail, dynamic content, and natural tone.

Variable D is Electro-Voice's exclusive solution to the tonal changes associated with the proximity effect found in other directional microphones. Providing balanced and uniform frequency response up to 180° off-axis, the result is always stable and linear tonal performance — even when the sound source is moving around the mic. Ideal for capturing the critical details of voice, amplified, and acoustic instruments, Variable-D capsules deliver impeccably smooth and natural tone on virtually any sound source.

Utilizing the same humbucking coil technology found in the RE20 and RE27N/D to arrest electro magnetic field interference introduced by sources close "to the microphone", the RE320 produces an ultra-quiet signal path free from the hum and buzz found in other dynamic microphones.

The RE320 incorporates a two-position "Dual Personality" frequency response switch which allows engagement of two vastly different performance curves.



Acoustic Excellence

Make room in the mic locker for your new go-to mic. Broadening the application zone of this classic Electro-Voice form, the RE320 breaks new ground in the studio and live performance microphone world.

Dynamic Versatility

Engineered for world-class performance in both studio and stage applications, the RE320 deploys innovative patented Electro-Voice technologies to create the perfect dynamic microphone for both voice and instruments.

  • RE320's unique "Dual Personality" switch creates two ideal mics in one.
  • Neodymium magnet creates higher output with faster transient response and greater high-frequency detail.
  • EV's exclusive Variable-D proximity control ensures pure and natural tone.
  • EV's classic humbucking coil guards against EMF interference and hum.



Features:

  • Variable-D™ pattern control minimizes positional and off-axis tonal shifts
  • Integrated humbucking coil and integral pop filters provide virtually noiseless performance
  • Unique dual-voicing switch selects from two response curves



Specifications:

Generating Element: Dynamic neodymium magnet
Frequency Response: 30-18000 Hz (kick curve) 45-18000 Hz (general curve)
Polar Pattern: Cardioid
Impedance: 150 ohms balanced
Sensitivity, Open Circuit Voltage, 1 KHz: 2.5 mV/pascal
Hum Pickup Level, Typical (60 Hz/1 milliosted field) -130 dBm
Case Material: Steel
Length: 216.7 mm (8.53 in)
Widest Diameter: 54.4 mm (2.14 in)
Body Diameter: 49.2 mm (1.94 in)
Finish: Semi-gloss black
Net Weight: 681 g (1 lb 8 oz)
Shipping Weight: 1044 g (3 lb 5 oz)
