305Broadcast - AKG/7 FM Antenna Broadband Penetrator Type

$765.00
Style
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

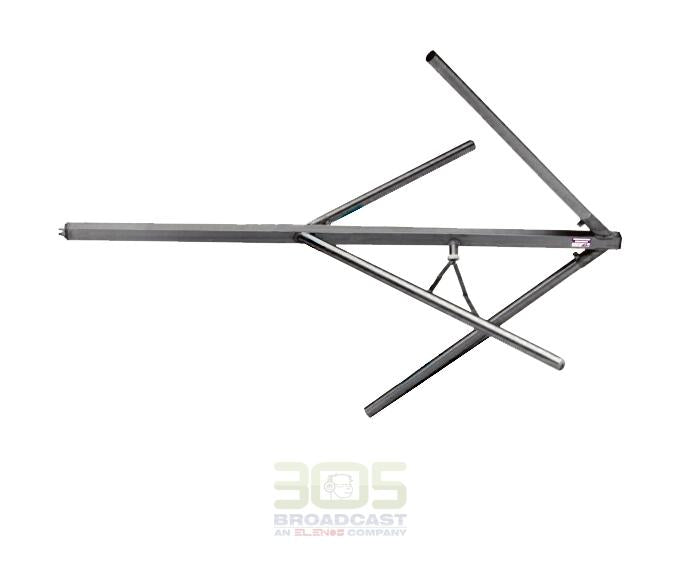

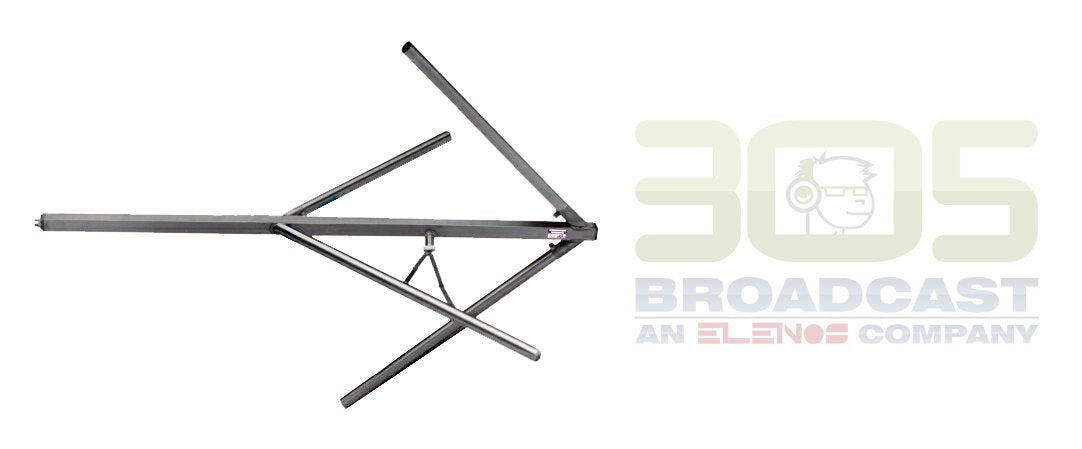

305Broadcast - AKG/7 FM Antenna Broadband Penetrator Type

Wide-band Antenna



These wide band broadcast antennas for Circular Polarization FM  are very resistant and entirely made of stainless steel with PTFE insulator, they are demountable in several parts for facilitate the shipping.

The stainless steel is pickled with an electrochemical method that makes it uniform in color and eliminates the weld marks. All the metal parts are electrically grounded to prevent possible problems arising from lightnings .

DOWNLOAD DATASHEET

TECHNICAL DATA

AKG/7N AKG/7M AKG/7F
FREQ. RANGE 87.5 – 108 Mhz 87.5 – 108 Mhz 87.5 – 108 Mhz
IMPEDANCE 50 Ohm 50 Ohm 50 Ohm
V.S.W.R. <1.25:1 <1.25:1 <1.25:1
GAIN – 1.5dBd – 1.5dBd – 1.5dBd
CONNECTOR N 7/16 7/8
MAX POWER 800W 2KW 3KW
POLARIZATION Circular Circular Circular
WEIGHT 10.9 Kg 10.9 Kg 11 Kg
DIMENSIONS 152x124x115 cm 152x124x115 cm 152x124x115 cm
