Logitek mixIT-12 with Jet67 - Networked Audio Console

The convenience and versatility of a digital touchscreen audio console without the high price tag is now available – mixIT from Logitek.Powered by the JET67 multi-format audio engine, mixIT brings the controls needed for smooth, intuitive Radio operation
into a compact form factor with comprehensive networking capabilities including AES67, RAVENNA, Livewire™, Logitek JetNet and optional Dante®.

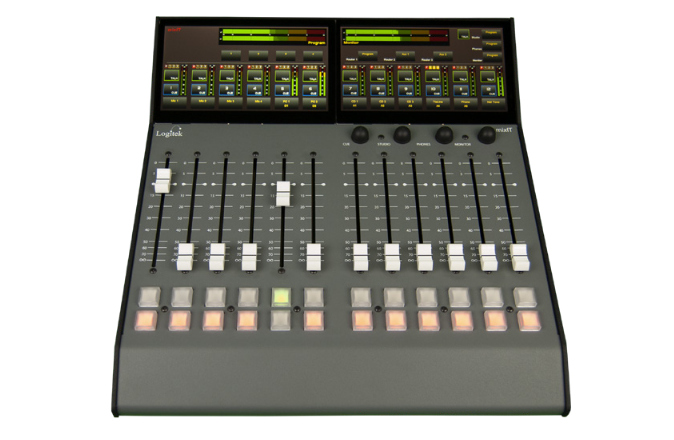

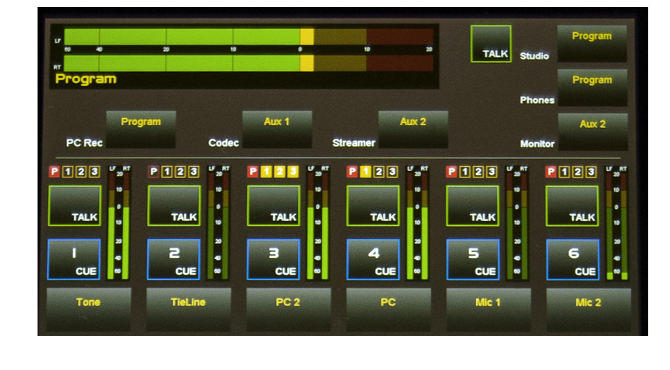

The desktop-mounted mixIT provides 6 to 18 faders along with 1 to 3 touchscreens for metering, source selection, routing, and scene selects for custom console layouts. Any source may be routed to any fader, with input meters provided at every fader. Auto-configuring mix-minus, CUE, and bus selection (Program and three AUX) are also
available at every fader.

With no noisy fans and only one rack unit high, the JET67 engine may easily be placed in a studio or in the TOC. Two JET67 units may be linked for additional I/O capability.

Physical Specifications Surface

• 13.5" W x 15" D x 2.6" H

• (34.3 x 28.1 x 6.6 cm)

• 7 Lb (3.1 kg)

• Power: 8 Watts

Jet67 Multi-Format engine Included

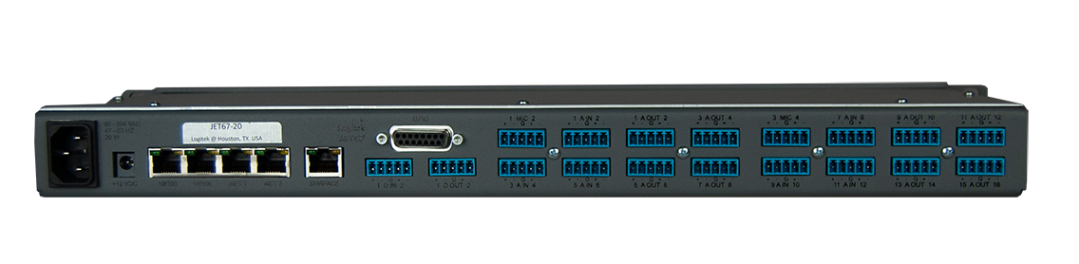

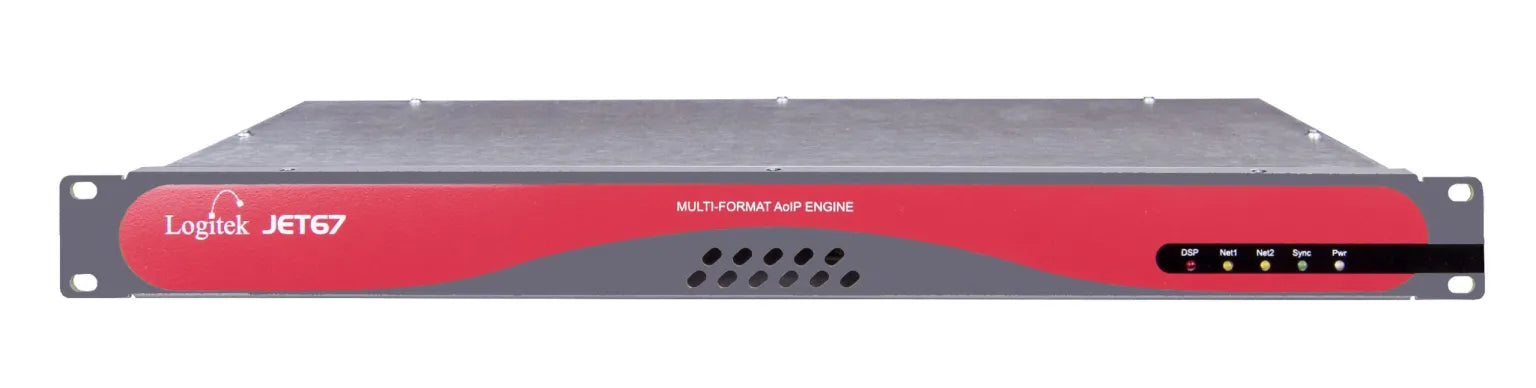

Physical Specifications Jet67

• 19" W x 1.75" H x 7" D


• (48.3 x 4.4 x 17.8 cm)

• 3Lb (1.36 kg)

• Power 20 Watts
