NEUTLM103

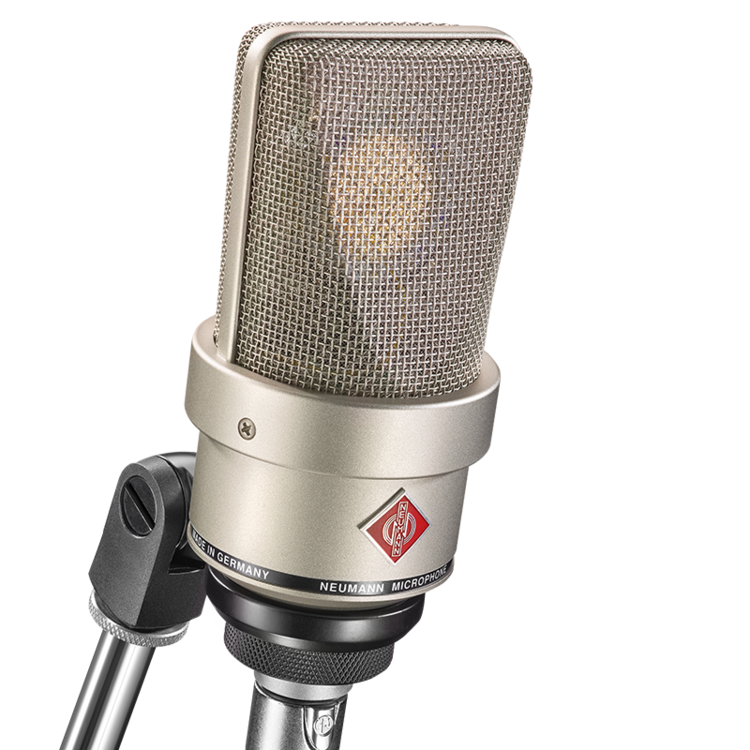

Neumann TLM 103 - Large Diaphragm Condenser Microphone

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

Neumann TLM 103

Large Diaphragm Condenser Microphone

The modern classic for vocals, spoken word, and more. The bestseller



MORE ABOUT THE TLM 103

The extremely quiet self-noise of the TLM 103 is regarded a milestone until today. In technical terms: a noise level of just 7 dB(A). In other words: the TLM 103 is so low noise that even the faintest nuances become audible. Thus, it is perfectly suited for vocals and audio drama productions in high definition as well as for demanding samples production and instrumental recordings.



Once the Small Brother – Now a Modern Classic

We equipped the TLM 103 with a very broad presence boost in the area of 6 to 15 kilohertz which helps the voice to cut through the mix. The TLM 103 offers everything demanding users could wish for: nuanced vocals with precise reproduction of sibilants and excellent speech intelligibility. The sound character of the TLM 103 cannot deny its origin: Its role model in the development process was our U 87, which is regarded the reference microphone in studios around the globe. After almost two decades, the TLM 103 has become a modern classic itself which sets new standards with its characteristic presence and its extremely low self-noise.

TLM: Clear Sound, Powerful Bass

Our TLM series works with a transformerless output stage. This means: a clean and direct sound, very “close” to the acoustic source, and a powerful bass transmission all the way down to the lowest frequencies. Its transformerless output stage also makes the microphone resistant to electromagnetic fields and minimizes transmission losses.



FEATURES

Sound design inspired by the legendary U 87
Broad presence boost, perfect for demanding vocal and instrumental recordings
Extremely low self-noise, captures even the faintest nuances



APPLICATIONS

Vocal recordings with great presence and high definition

Voice recordings, audio drama productions, noise recordings

Instrumental recordings with finest nuances



TECHNICAL DATA

Acoustical operating principle: Pressure gradient transducer
Directional pattern: Cardioid
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 17.5 dB
Equivalent noise level, A-weighted1): 7 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 76.5 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 87 dB
Maximum SPL for THD 0.5%2): 138 dB
Maximum output voltage: 13 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3 mA
Matching connector: XLR3F
Weight: approx. 450 g
Diameter: 60 mm
Length: 132 mm
