The Ultimate Advertising Solution

The P5 Full Color LED Screens are the perfect tool to take your advertising to the next level. With an impressive pixel resolution and exceptional brightness, these screens allow you to create eye-catching, high-definition ads that will capture the attention of your target audience.

Here are the key highlights of the P5 Full Color LED Screens:

Impressive Pixel Resolution

The screens boast a remarkable pixel resolution, ensuring that your advertisements are displayed in stunning clarity and detail. This high-quality visual experience will make your brand and message stand out.

Exceptional Brightness
The exceptional brightness of the P5 screens ensures that your ads are clearly visible, even in bright outdoor environments. This allows you to effectively reach and engage your audience, regardless of the lighting conditions.

Captivating Advertisements

With the capabilities of these LED screens, you can create advertisements that are truly captivating and impactful. The combination of high resolution and brightness will help your ads grab the attention of your target audience and leave a lasting impression.

Versatile Application

These P5 Full Color LED Screens can be utilized in a variety of settings, from outdoor billboards to indoor displays, making them a versatile solution for your advertising needs. Adapt your campaigns to different environments and reach your customers wherever they are

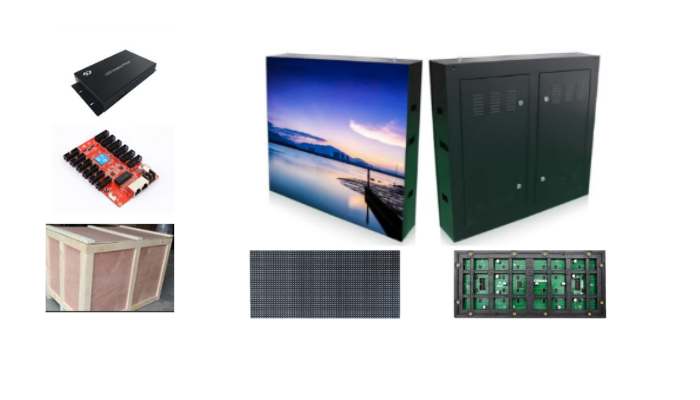

x16 Iron Cabinet Advertisement Cabinets

x01 Box Huidu A4L

x16 Card Huidu R712

x06 Spare LED Modules

x01 Software Space part

x2 Led Modiule,LED lamp bead, Driving IC,Flat cable,Network Cables, Power Cables,Connector Strip

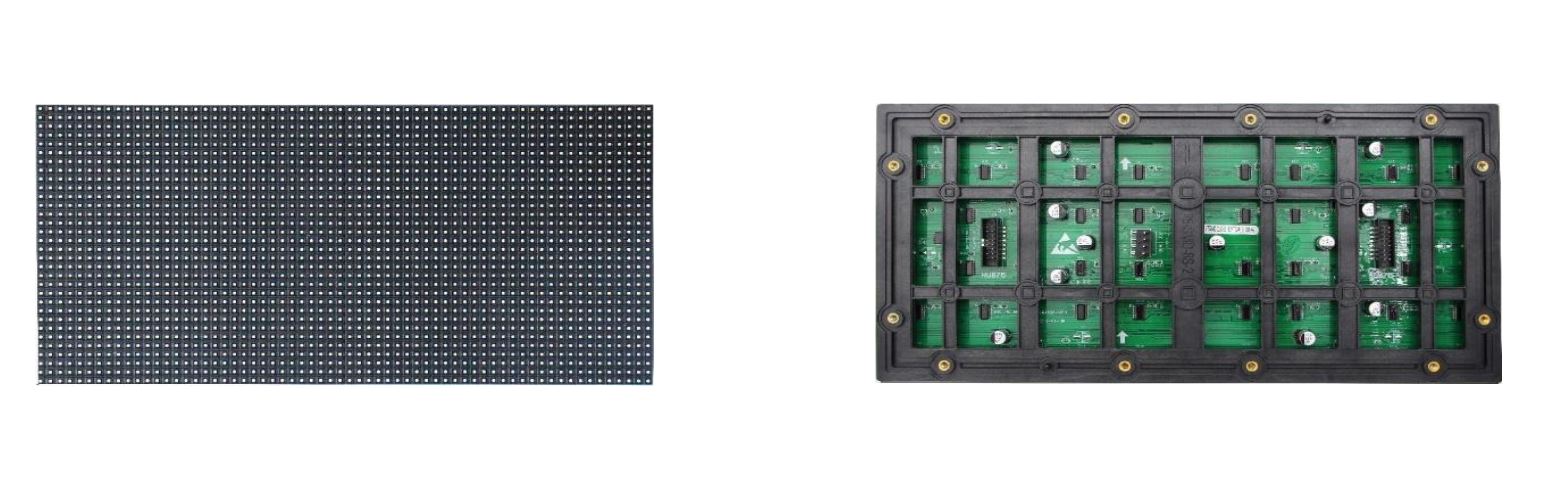

        SPECIFICATIONS

• Pixel pit: 5mm
• Panel size: 320(L)*160(H)mm
• Option distance: 4-30m
• Physical density: 40000/m²
• Pixel configura: 1R1G1B
• Driving method: 1/16 Scan
• LED Encapsula: 64*32=2048DOTS
• Module weight: 0.25KG
• LED type: SMD1921
• Application:Outdoor

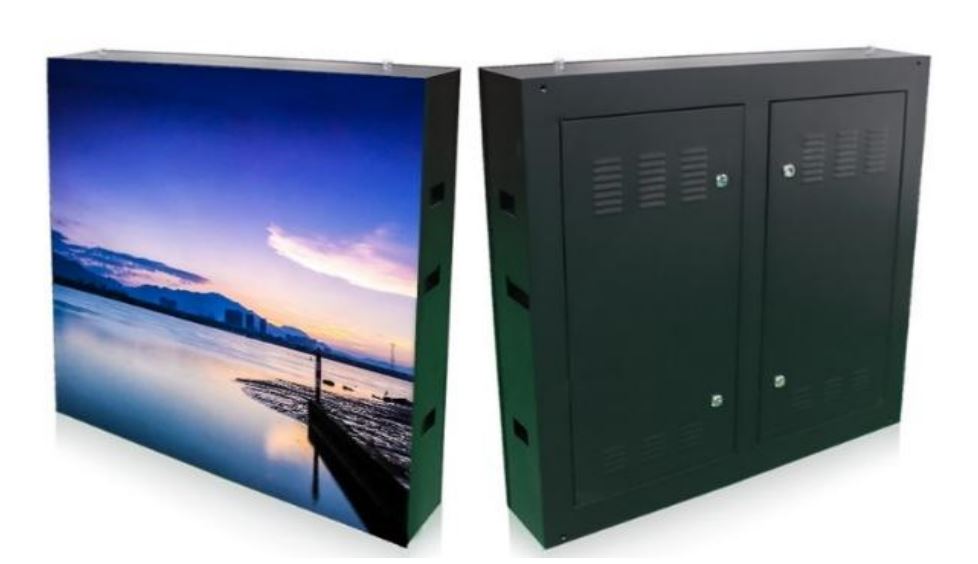

         CABINET

•  Cabinet size: 960x960*86mm
•  Cabinet resolution: 192x192 pix
•  Maximium Power Consum: 900W/m²
•  Input Volta: 110-220V
•  Cabinet material: Iron
•  Weight: 22kg

          SCREEN

•  Operation tempreature: -10--6
•  Operation Humidity: 10%--70%RH * Control PC: Customer Prepared
•  Refresh rate: 1920HZ
•  View angle: 120/60degre
•  Brightness: >5500cds
•  Life span: 100,000 hours
•  IP rate: Indoor IP40&Outdoor IP6
•  Operation system: Window Series
•  Control distance: 100m(with relay), multi-mode fiber:500m, single-mode fiber:2
•  Formals: txt,rtf,doc,xls,bmp,Jpg,gif,wmf,swf,rm,avi,mpg,mpeg, asf,dat,Vob
