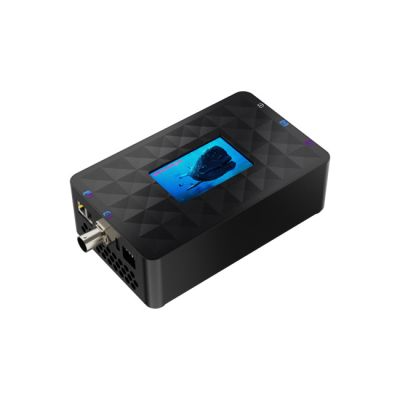

RGBlink RGBlink-601-0405-00-0 MSP 405

RGBlink RGBlink-601-0405-00-0 MSP 405

Key Features

• Support 12G-SDI,HDMI 2.0 and fiber
• UHD resolution transmission up to 2160p
• Support SDI to HDMI + fiber, HDMI to SDI + fiber, fiber to SDI + HDMI
• LCD input preview
• Test pattern output
• Type-C upgrade interface

Specification

Interface

• Input: HDMI, 1—HDMI-A, SDI, 1—BNC, SFP Fiber, 1—LC
• Output: HDMI, 1—HDMI-A, SDI, 1—BNC, SFP Fiber, 1—LC
• Audio: In - 1—3.5mm Audio Socket, Out - 1—3.5mm Audio Socket
• Power: 1—DC Jack
• Control: USB Type-C, 1—4 DIP Switch

Performance

• Resolution: HDMI 720p@50/60 | 1080i@50/59.94/60 |1080p@30/50/59.94/60|2160p@30/50/60
• SDI 720p@50/60 | 1080i@50/59.94/60 | 1080p@30/50/59.94/60|2160p@30/50/60
• Fan: speed auto adjusted

Power

• Input Voltage: DC 12V/1.5A

Physical

• Net Dimension: 131.09mm — 69mm — 34.2mm
