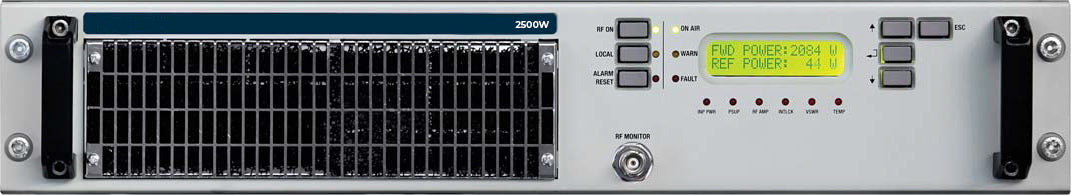

SWAP 2500 - 2500W FM Transmitter
SWAP Series Exciter/Transmitter is a Family of FM stereo Exciters/Transmitters that guaran-tees a superior transmission quality and top performances.
Output power from 600W ,1300W, 2500W using High Efficiency last LDMOS technology is housed into an ultra-compact cabinet of only 2U heigh.
Is available also in JPN and OIRT frequencies.
SWAP can be used as ultra-compact stand alone station, as well as driver in complex high power transmitters and N+1 systems.
For any application SWAP is the ultimate solution that meets most demanding customer’ requirements and guarantees professional features at affordable price.
24" x 22" x 9"
TECHNICHAL CHARACTERISTICS SWAP SERIES EXCITER/TRANSMITTER 600W ,1300W, 2500W
Frequency Range: 87.5 ÷ 108.00 MHz, Programmable in 10 KHz steps
On request 66 ÷ 74 MHz (OIRT), 76 ÷ 90 MHz (JPN) Bands.
Frequency Stability: better than ±150Hz from -10 to +50°C
Max deviation: +/-150kHz.
Frequency Control: Synthesizer μprocessor control.
Power Output: 600W, 1300W, 2500W Adjustable from 0W to maximum power.
Output Impedance: 50 ohm.
Display: forward/reflection power and modulation indicator
Type of Modulation: Direct frequency modulation of carrier frequency, F3E Stereo with Subcarrier and Mono .
Lock in Time: Typ. 4 second.
Off Lock Attenuation: ≥ -80 dBc.
Modulation Capability: ±150 KHz.
Modulation Mode: Mono, Stereo, Multiplex, SCA, RDS, Aux.
Preemphasis: Flat(0)/50/75 μs selectable from front panel.
Asynchronous AM S/N Ratio: -60 dB below reference carrier with 100% AM modulation @ 400 Hz, without FM modulation.
Synchronous AM S/N Ratio: -60 dB below reference carrier with 100% AM modulation@ 400 Hz with FM modulation ±75 KHz @ 400 Hz.
RF Harmonics: Exceeds ETSI/EBU/CCIR/FCC requirements. better than 84 dbc
RF Spurious: Exceeds ETSI/EBU/CCIR/FCC requirements. better than 84 dbc
RF Output Connector: 7/16 Type.
Output power on/off and adjustable from front panel and remotely.
Overall Efficiency up to 80%.
Monitor RF: -60 dBc, BNC connector
VSWR: 1.5:1 Maximum with automatic fold-back at higher VSWR
