VIDEO 5 MF-HD 1 Out

VIDEO 5 MF HD/SDI - 1 OUT

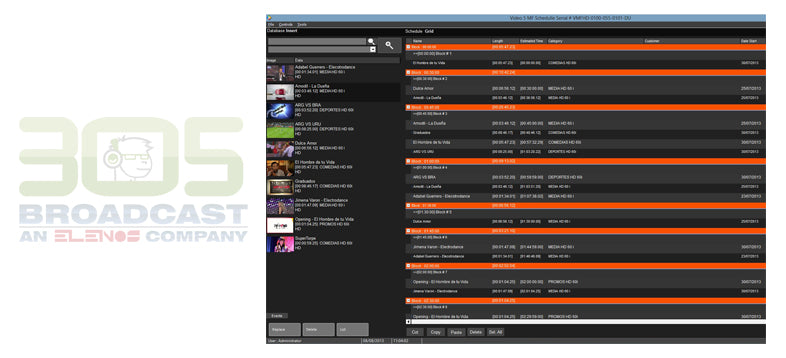

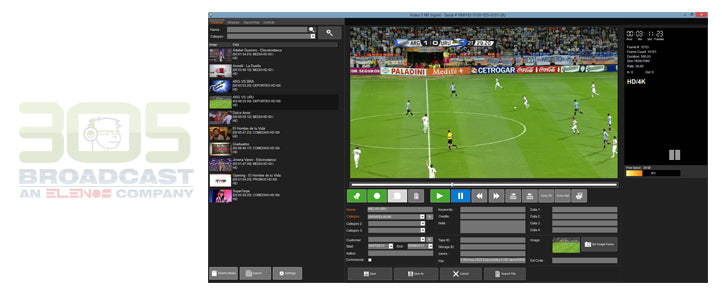

Multiformat HD VIDEO SERVER allows multiformat content broadcasting in the same play list. Simultaneous Rec and Play, search frame by frame. Defining multiple video clips on the same video. Adjusting audio levels. SQL Databases. Video Trim, pre view on screen. HTML Control with viewing reports, schedule, air control, etc..





Video Input: 2xSD/HD SDI Video output: 1xSD/HD SDI



Audio Input: 16 Channels Per Input, Embedded in SD and HD. Audio Output : 16 Channels, Embedded in SD and HD.



Genlock: SDI or Tri-level



HD Format Support : 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.



SD Format Support: 625/25 PAL ,525/29.97 NTSC and 525/23.98 NTSC.



3G, HD, SD, SDI & LTC I/O

12 bit 2K/HD/SD SDI I/O 12 bit internal processing

Dual Link 4:4:4, 4:4:4:4, 4:2:2:4 I/O

Single Link 4:2:2 I/O



SMPTE specifications : 12M, 125M, 259M, 272M, 274M, 291M, 292M, 296M, 299M, 372M, 424M, 425M



SUPPORTS XDCAM 1080, 540 , DVCPro100 ,MPEG 2 (ISO/IEC 13818-2) (VBR, CBR) up to 80 Mbps, MPEG 2 HD , WMV HD, etc



INCLUDES: Computer with INTEL processor, 8 GB of RAM, 500W Power, HDX500 and 3 TBytes on RAID 0, PCI Express Video Card, DVD, 4U Cabinets on RACK, Windows Seven Professional.
