Yellowtec Litt System Cable

$4.45
Size
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Yellowtec Litt System Cable

  • YT9600 litt Mulitcore System Cable, litt Color Code, per meter

  • YT9601 litt Mulitcore System Cable, litt Color Code, 50m drum

  • YT9603 litt Mulitcore System Cable, litt Color Code, 100m drum



https://www.yellowtec.com/fileadmin//user_upload/litt/box/horizontal/litt_box_horizontal_colorcode_controller.jpg

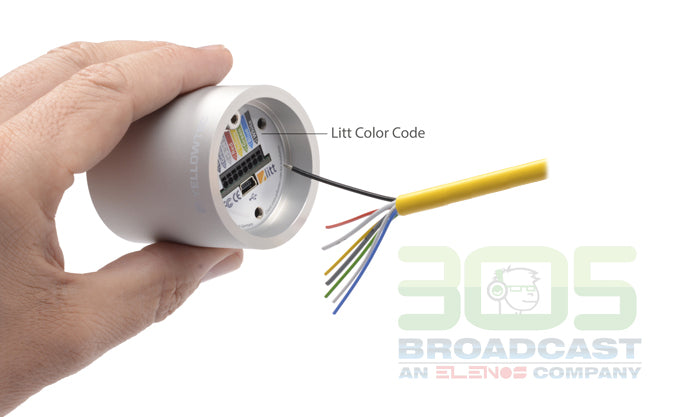

Ease up your installation. Thanks to litt's color code.

The Base Controller’s connection panel consists of an 8-pin terminal block with a handy Phoenix Low-Insertion Force Connector. The hybrid cable’s ends can be comfortably inserted into the port panel’s color-labeled terminals. To connect or unplug the color coded cable from the port panel’s pre-labeled terminals, use the Clip Release Tool (found on the Installation Tool’s tip-end) which is included in the Universal Mounting Kit.

Connections:

  • Chassis (protective earth recommended): PE
  • Ground (negative supply voltage from power supply): 0V
  • +9-24V (positive supply voltage from power supply): +9V...25V
  • Red (GPI for red Color Segment ): +3V…24V
  • Yellow (GPI for yellow Color Segment): +3V...24V
  • Green (GPI for green Color Segment): +3V...24V
  • Blue (GPI for blue Color Segment): +3V…24V
  • White (GPI for white Color Segment): +3V...24V
