Yellowtec Litt System Cable

Size

Yellowtec Litt System Cable

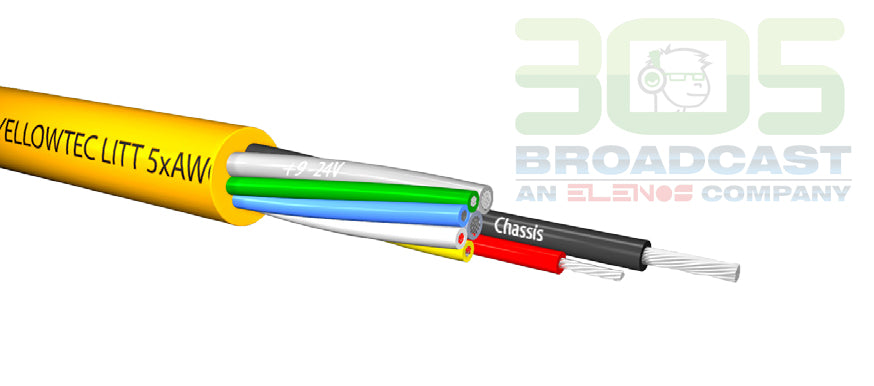

  • YT9600 litt Mulitcore System Cable, litt Color Code, per meter

  • YT9601 litt Mulitcore System Cable, litt Color Code, 50m drum

  • YT9603 litt Mulitcore System Cable, litt Color Code, 100m drum



https://www.yellowtec.com/fileadmin//user_upload/litt/box/horizontal/litt_box_horizontal_colorcode_controller.jpg

Ease up your installation. Thanks to litt's color code.

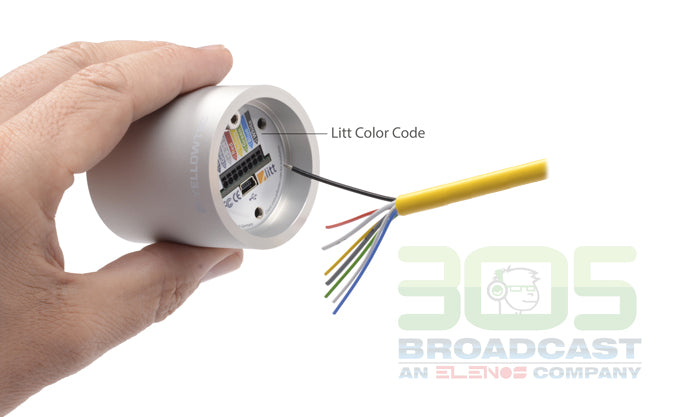

The Base Controller’s connection panel consists of an 8-pin terminal block with a handy Phoenix Low-Insertion Force Connector. The hybrid cable’s ends can be comfortably inserted into the port panel’s color-labeled terminals. To connect or unplug the color coded cable from the port panel’s pre-labeled terminals, use the Clip Release Tool (found on the Installation Tool’s tip-end) which is included in the Universal Mounting Kit.

Connections:

  • Chassis (protective earth recommended): PE
  • Ground (negative supply voltage from power supply): 0V
  • +9-24V (positive supply voltage from power supply): +9V...25V
  • Red (GPI for red Color Segment ): +3V…24V
  • Yellow (GPI for yellow Color Segment): +3V...24V
  • Green (GPI for green Color Segment): +3V...24V
  • Blue (GPI for blue Color Segment): +3V…24V
  • White (GPI for white Color Segment): +3V...24V
