CG5-MC-HD

Name: CG5-MC-HD
Brand: Video 5
Price: 15900.00 USD
Availability: InStock

$15,900.00

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Video 5 CG5-MC-HD

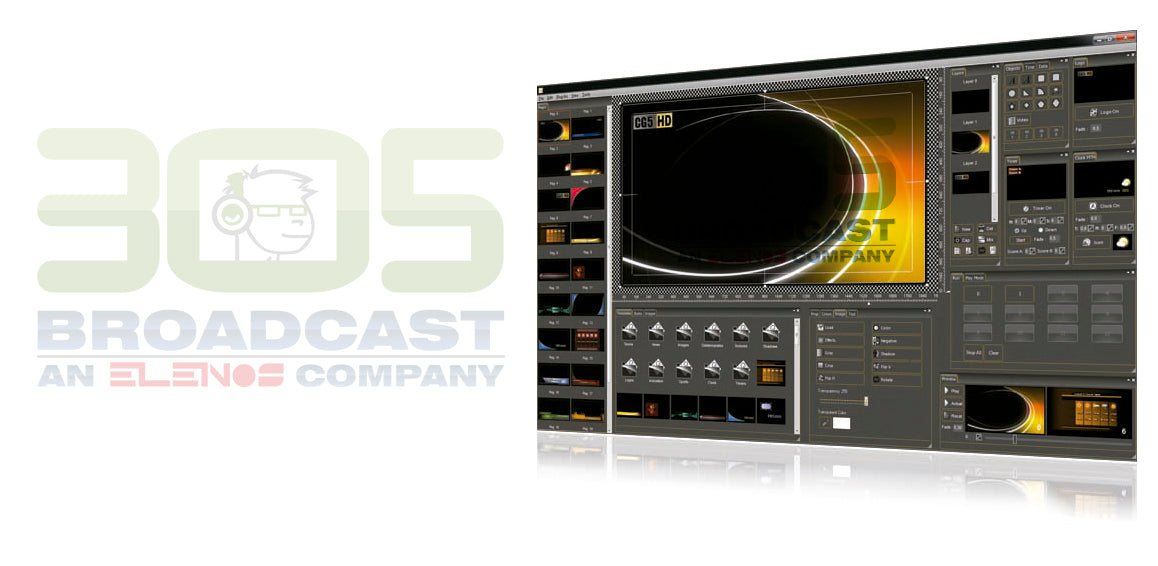

CG5 Multichannel offers a powerful tool for character generator needed in TV channel or production companies.

Exellent Perfomance in broadcast.

The flexibility of CG5 Multichannel allows multiple tasking.

Multiple layers.
Alpha Channel mixing.
Titles and subtitles in real time. Down Stream Key or Up Stream Key.
Endless layers with independent speed and fade in/out control for each one.
Insertion of multiple animated logos in 3D with independent control.
Insertion of time, temperature and humidity.
Sports Timers on screen.
Multiple simultaneous Videos, Lower Third, Rolls and Crawls with independent speed.
Insertion of multiple videos with alpha channels, specially for lower third in sports events.
Project content in one file.
More than 200 predefined templates for its immediate use.
It supports PSD, TGA, TIF, GIF , PNG , BMP , EMF , JPG , PCX, etc.
Multiple communication protocols.
Plug in for subtitles, etc.

Technical Specifications

Input:

1 SDI HD Input

Output:

2 SDI HD Output (Fill + Key)

HD Supported formats:

720p 24fr, 25 fr, 29fr, 30fr, 50fr, 59fr, 60fr
1080i 50fr, 59fr, 60 fr
1080p 24fr, 25fr, 29fr, 30fr

SD Supported formats:

PAL / NTSC

Inputs:

SD/HD SDI: (SMPTE 424m, SMPTE 292m, SMPTE 259mI) with embedded 50/60 Hz Audio.

Synchronization Input (genlock)

Outputs:

SD/HD SDI (SMPTE 424m, SMPTE 292m, SMPTE 259m) with embedded 50/60 Hz audio
Digital linear key DSK signal alpha- channel output (BNC)
