Video 5 CG5-MC-HD

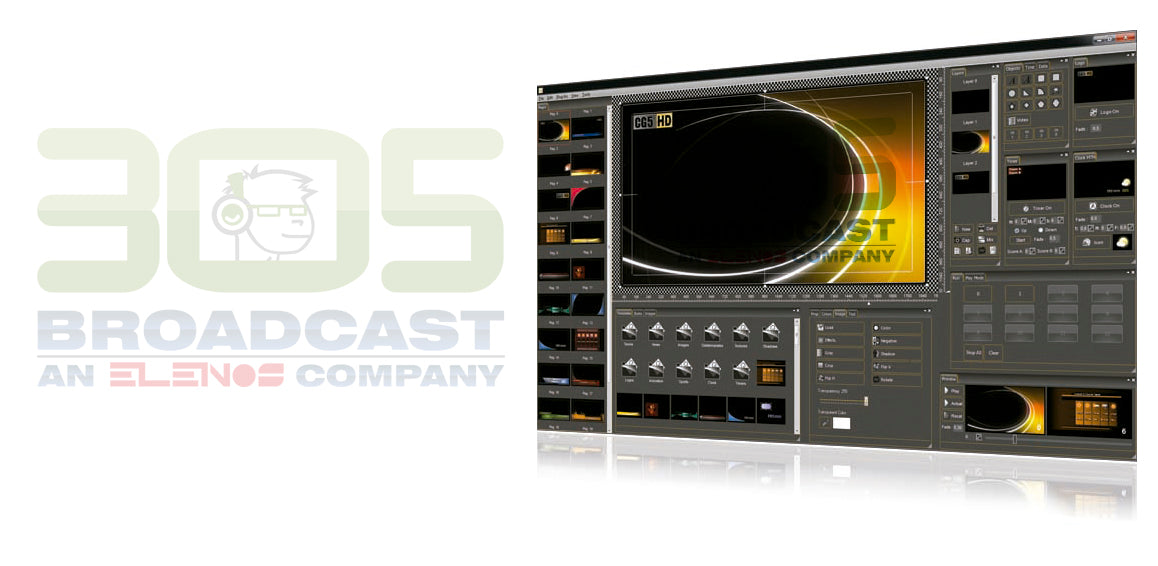

CG5 Multichannel  offers  a  powerful  tool  for  character generator needed in TV channel or production companies.

Exellent Perfomance in broadcast.


The flexibility of CG5 Multichannel allows multiple tasking.

  • Multiple layers.
  • Alpha Channel mixing.
  • Titles and subtitles in real time. Down Stream Key or Up Stream Key.
  • Endless layers with independent speed and fade in/out control for each one.
  • Insertion of multiple animated logos in 3D with independent control.
  • Insertion of time, temperature and humidity.
  • Sports Timers on screen.
  • Multiple simultaneous Videos, Lower  Third, Rolls  and Crawls  with independent speed.
  • Insertion of multiple videos with alpha channels, specially for lower third in sports events.
  • Project content in one file.
  • More than 200 predefined templates for its immediate use.
  • It supports PSD, TGA, TIF, GIF , PNG , BMP , EMF , JPG , PCX, etc.
  • Multiple communication protocols.
  • Plug in for subtitles, etc.


Technical Specifications


  • 1 SDI HD Input


  • 2 SDI HD Output (Fill + Key)

HD Supported formats:

  • 720p 24fr, 25 fr, 29fr, 30fr, 50fr, 59fr, 60fr
  • 1080i 50fr, 59fr, 60 fr
  • 1080p 24fr, 25fr, 29fr, 30fr

SD Supported formats:

  • PAL / NTSC


  • SD/HD SDI: (SMPTE 424m, SMPTE 292m, SMPTE 259mI) with embedded 50/60 Hz Audio.

Synchronization Input (genlock)


  • SD/HD SDI (SMPTE 424m, SMPTE 292m, SMPTE 259m) with embedded 50/60 Hz audio
  • Digital linear key DSK signal alpha- channel output (BNC)


Relay Bypass in case of power failure: SD/HD

SDI with embedded audio
