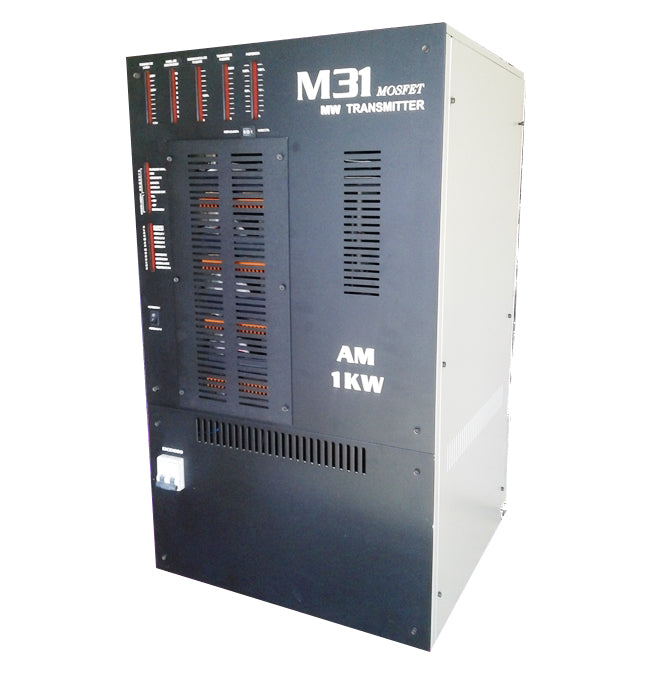

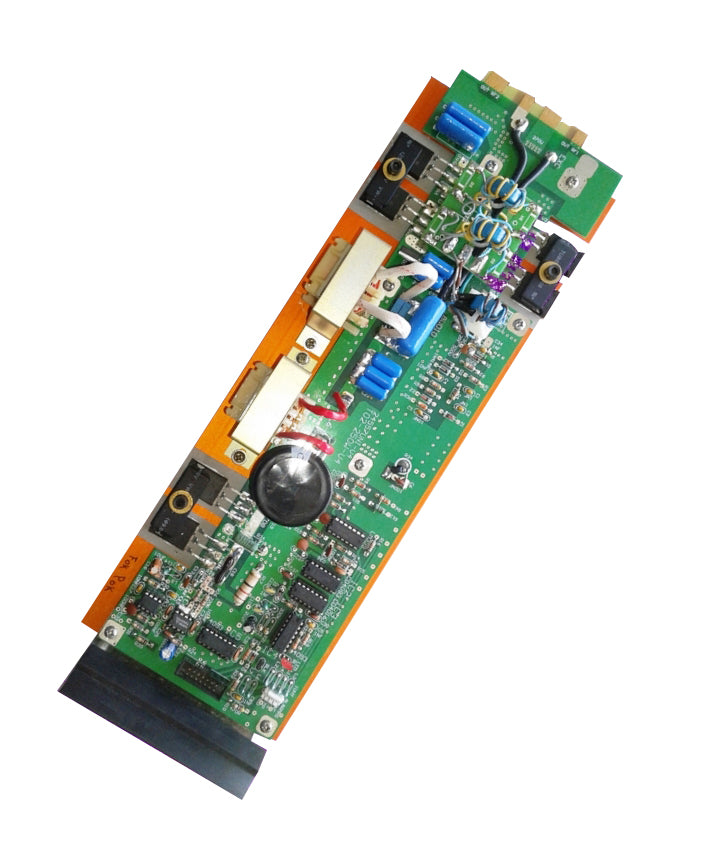

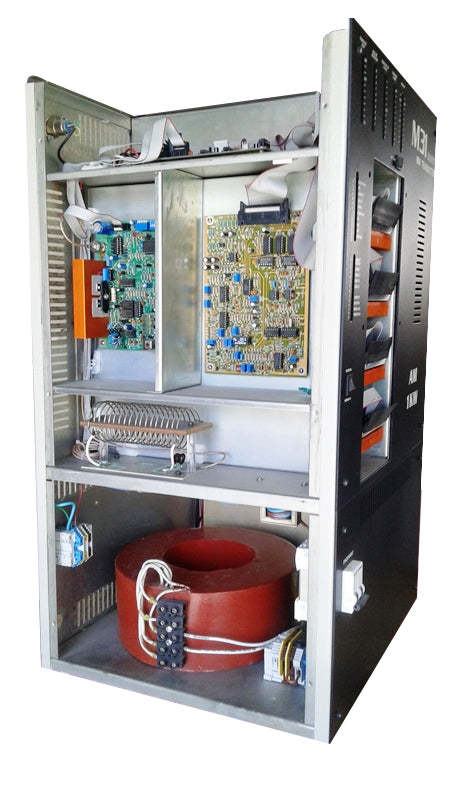

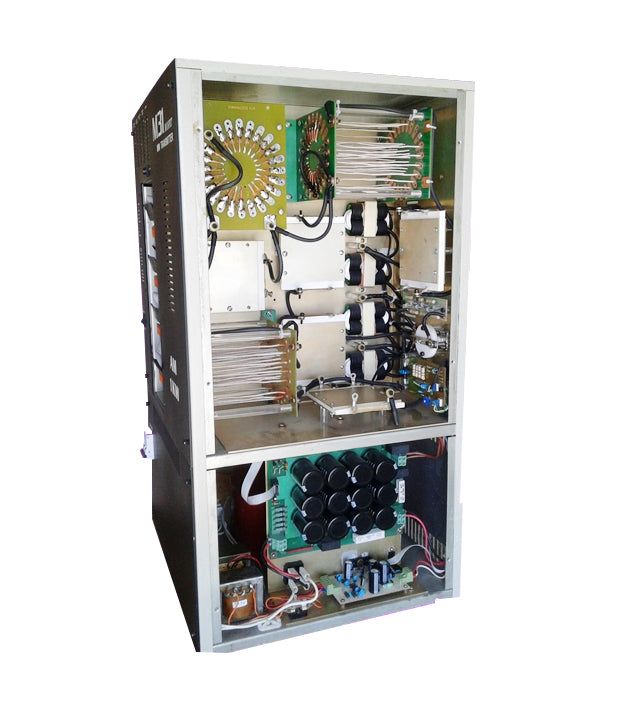

1 KW Solid State AM Transmitter


1 KW Solid State AM Transmitter



PARAMETERS                                                                                                             VALUE

Frequency range                                                530kHz to 1705kHzIssue Type                                                                                             8K00 A3EGN o 20k00 A3EGNInput impedance                                                         600 Ohm ± 5% in the band of 30 Hz a 10 kHzNominal Entry Levels                              +10 dBm ± 1 dB for 100% modulationOutput Impedance                          50 Ohm, Asymmetric

Output Connector                                              UHF Female o EIA flange

Carrier Frequency Stability                                  6 ppm between -10 ° C & +50 ° C

Non-Essential, Parasite and Harmonic Emissions                   = -55 dB

Harmonic distortion                                            <2% within the 30 Hz to 10 kHz band @ 95% modulation

Intermodulation Distortion                                  <-43dB @ 95% modulationNoise level                                                    <-60 dB of output level modulating 100% with 1kHz tone

Consumed Line Power                                                                                                      2.5kVA @ 100% modulation

Output Stage Performance                                       Better at 75%
