2 Bays Circular Polarization Tuned Antenna System 800 W - AKG8
MODEL: KG8-2NN
FM Antenna System 4 Bays , Circular Polarization, Narrow Band, 1.5 db Gain, Power Input 800 Watts N Type Connector

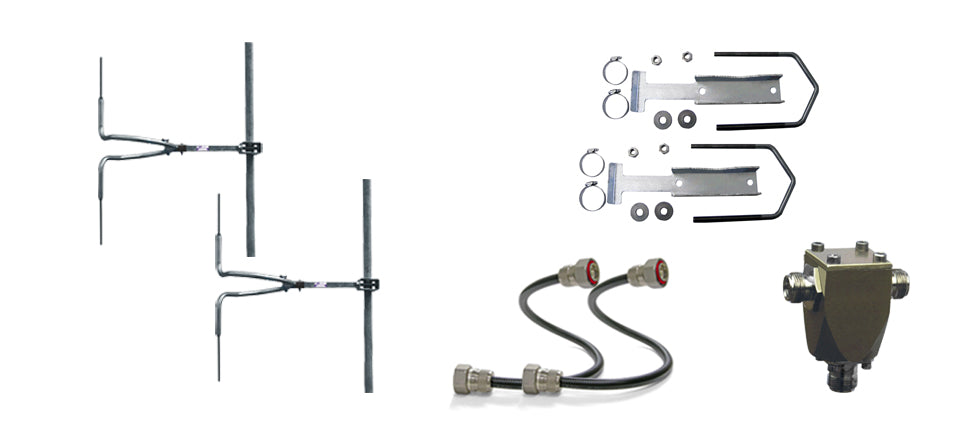

Composed of 2 Antennas AKG/8, + 1 Power Divider GACN/2N, + 2 Jumper Cables CR213N2.5, + 1 Clamp SAGA/2.

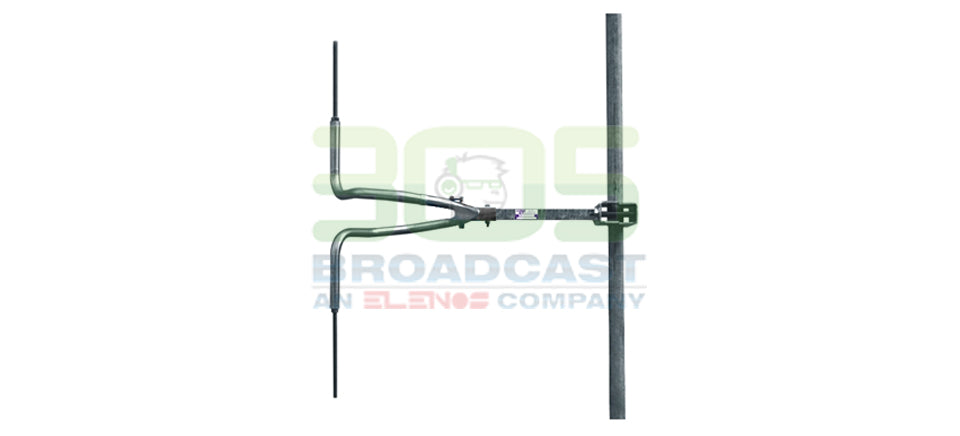

AKG 8 FM Narrow-band Antenna Features:
- Omni directional antenna.
- Circular polarization.
- Narrow band.
- Very resistant, yet very light..
- Entirely made of stainless steel.
- Due to the inherent selectivity, user must specify frequency of use when ordering.

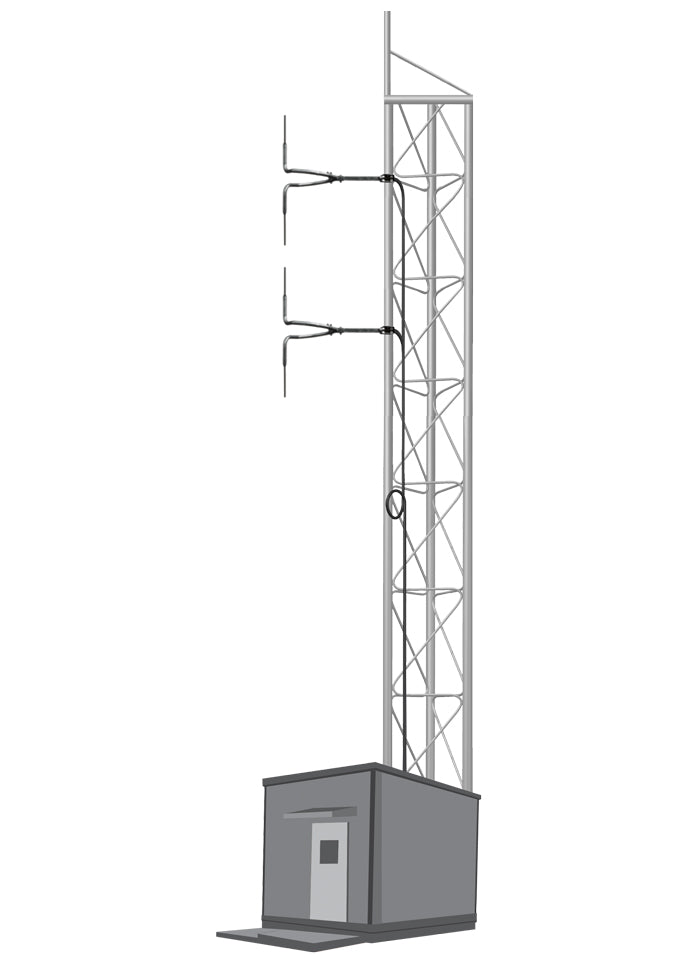

- For proper functioning, antenna must be mounted on a pole support and should not have any other antennas or metal structures nearby.
| AKG/8 | |
|---|---|
| FREQ. RANGE | 87.5 – 108 Mhz |
| IMPEDANCE | 50 Ohm |
| V.S.W.R. | <1.2:1 |
| GAIN | – 1.5dBd |
| BANDWIDTH | 300 KHz |
| CONNECTOR | N |
| MAX POWER | 500W |
| POLARIZATION | Circular |
| WEIGHT | 3.4 Kg |
| DIMENSIONS | 58x35x85 cm |
VSWR:
