305 Broadcast - 1/2″ Standard Foam Coax Cable 50 ohm, VSWR up to 6 GHz (price per foot) - 305broadcast

EUPEC4-50

305 Broadcast - 1/2″ Standard Foam Coax Cable 50 ohm, VSWR up to 6 GHz (price per foot)

$3.30
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

305 Broadcast - 1/2″ Standard Foam Coax Cable 50 ohms, VSWR up to 6 GHz (price per foot)

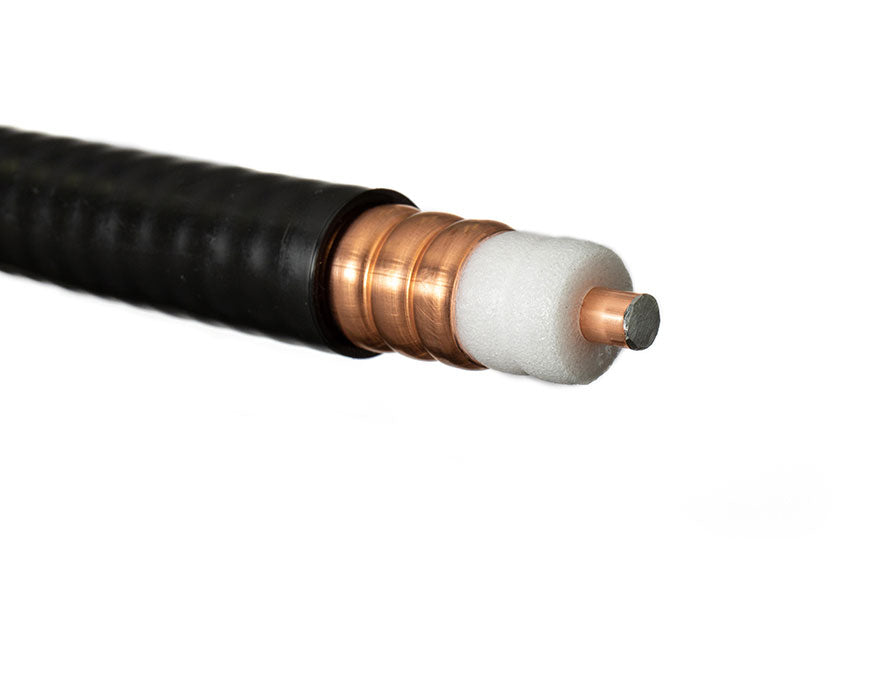

CONSTRUCTION

Inner Conductor:
 • Material : Copper clad aluminium wire
 • Diameter: 4.8 mm

Dielectric:
 • Material: Gas-injected Celullar polyethylene
 • Diameter: 12.4 mm

Outer Conductor:
 • Material : Corrugated Copper Tube
 • Diameter : 13.8 mm

Jacket Diameter:
 • Thickness 1.1 mm
 • Diameter 16 mm

ELECTRICAL CHARACTERISTICS

DC Resistance:
 • Inner Conductor 1.48 ohms/1000m (0.45 ohms/1000ft)
 • Outer Conductor 2.14 ohms/1000m (0.65 ohms/1000ft)

Insulation Resistance >>5000 m Ohms km

RF Peak Voltaje  (kV) 1.6

Velocity of Propagation 88%

RF Peak Power (kW) 25.6

Max. Operating Frequency 9.8 GHz / 50 ± 1 Ohm



Download Data Sheet



*Compatible with ANDREW LDFA-50A and FSJ4-50B*
