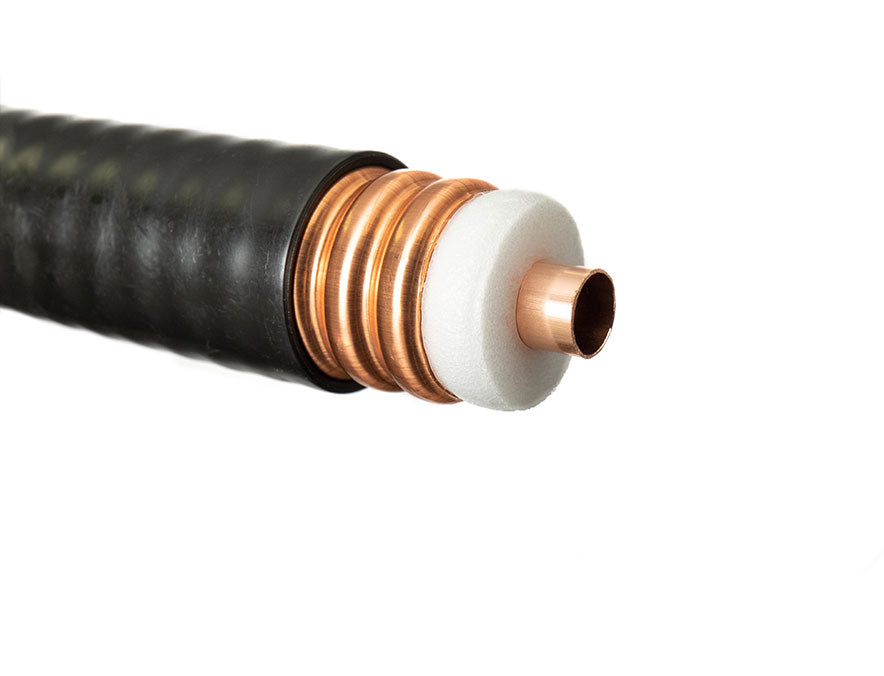

305 Broadcast - 7/8" Standard Coaxial Cable with black PE jacket (Price per foot)

CONSTRUCTION

Inner Conductor:
 • Material / Construction Smooth Copper Tube
 • Diameter 9.0 mm

Dielectric:
 • Material / Gas-injected Celullar polyethylene
 • Diameter 23.5 mm

Outer Conductor:
 • Material /  Corrugated Copper Tube
 • Diameter 25 mm

Jacket Diameter:
 • Thickness 1.4 mm
 • Diameter 27.8 mm

ELECTRICAL CHARACTERISTICS

DC Resistance:
 • Inner Conductor 1.65 ohms/1000m (0.5 ohms/1000ft)
 • Outer Conductor 1.31 ohms/1000m (0.4 ohms/1000ft)

Insulation Resistance >>5000 m Ohms km

RF Peak Voltaje  (kV) 2.9

Velocity of Propagation 89%

RF Peak Power (kW) 86

Max. Operating Frequency 5.1 GHz / 50 ± 1 Ohm
