Inicio / Productos / 305 Broadcast -1 5/8" Standard Cable with black PE jacket (Price per foot)
305 Broadcast -1 5/8" Standard Cable with black PE jacket (Price per foot) - 305broadcast

EUPEC7-50-A

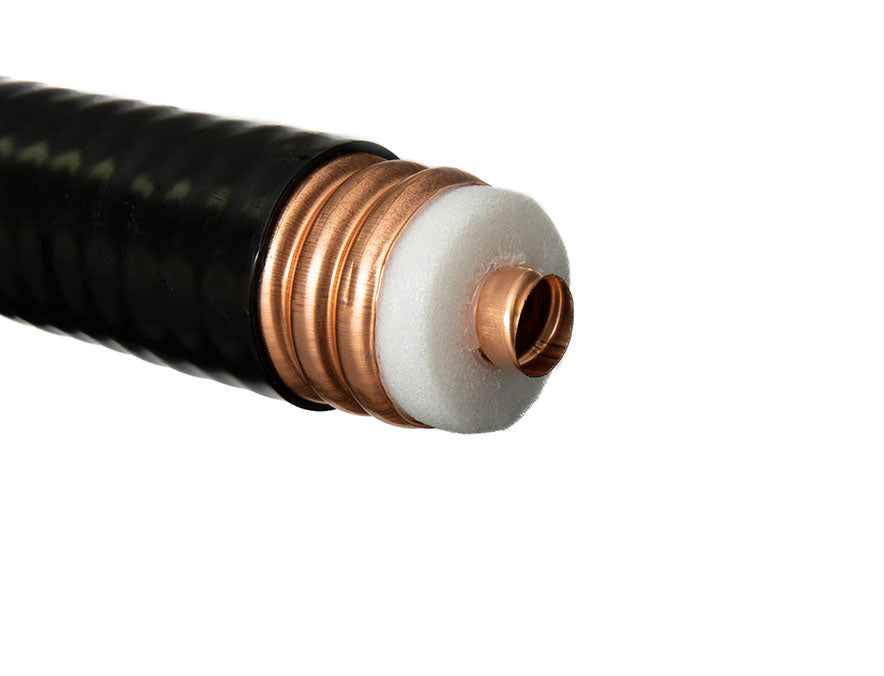

305 Broadcast -1 5/8" Standard Cable with black PE jacket (Price per foot)

$12.50
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

305 Broadcast -1 5/8" Standard Cable with black PE jacket (Price per foot)





CONSTRUCTION

Inner Conductor:
 • Material: Corrugated copper tube
 • Diameter 17.7 mm

Dielectric:
 • Material: Gas-injected Celullar polyethylene
 • Diameter: 43 mm

Outer Conductor:
 • Material: Corrugated Copper Tube
 • Diameter: 46.6 mm

Jacket Diameter:
 • Thickness: 1.7 mm
 • Diameter: 50 mm

ELECTRICAL CHARACTERISTICS

DC Resistance:
 • Inner Conductor 1.44 ohms/1000m (0.44 ohms/1000ft)
 • Outer Conductor 0.5 ohms/1000m (0.15 ohms/1000ft)

Insulation Resistance >>5000 m Ohms km

RF Peak Voltaje  (kV) : 5.5

Velocity of Propagation 89%

RF Peak Power (kW): 302

Max. Operating Frequency 2.8 GHz / 50 ± 1 Ohm



Download Data Sheet



**Also sold as EUPEN EC7-50-A**
