•   Embedded HiLinux system, stable and effective

•   Friendly webpage configuration UI(IP address can be setted)

•   Support MPEG-4 /H.264 AVC or MJPEG video encoding

•   Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding

•   The bitrate of output video stream is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling mode)

•   Support HTTP, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text, roll text on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support different protocol transmission for the 4 output video streams

•   Firmware is upgradeable

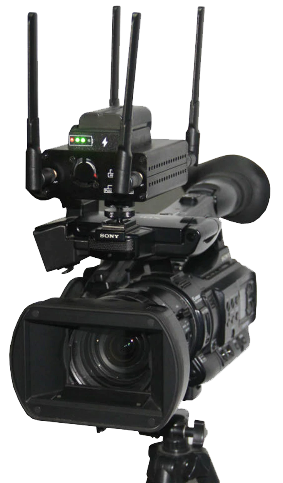

•   Support hot shoe mount at camera

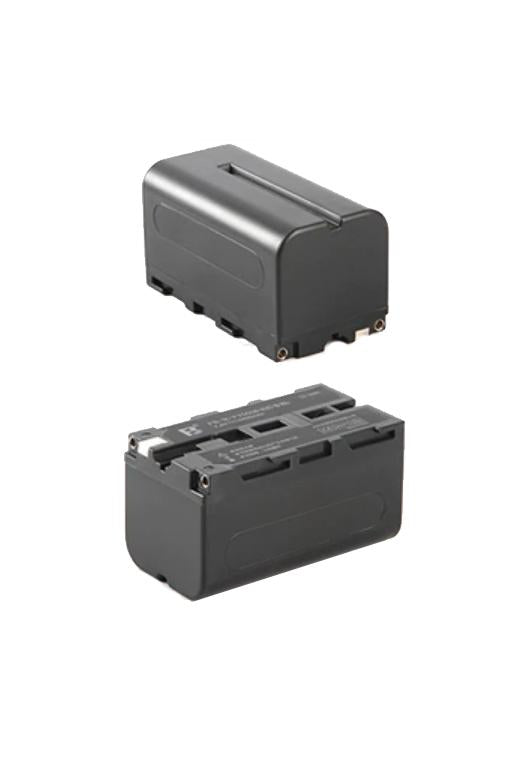

•   Support external SONY battery F550, F750, F970 for selection

•   Support 3G(TD-SCDMA) or 4G(FDD LTE/TDD LTE)

•   Support 2.4G WIFI or 5G WIFI for selection

•   Support configure the encoder by using APP or webpage UI

•   Provide SDK and API also CGI for secondary development

•   Support brightness, contrast, hue, saturation setting on output displayed video

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   A wide area network remote management(via port forwarding)

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack
