305 Broadcast TX LIGHT SERIES - 500W TRANSMITTER


305 Broadcast TX LIGHT SERIES - 500W TRANSMITTER

Technical Specifications

  • Frecuency Range: 87,5 MHz ~ 108 MHz
  • Frecuency Setting step: 10KHz
  • Carrier Frequency Precision: ±200Hz
  • Residual Wave Radiation: ≥ 65dBc
  • Audio Input Impedance:600Ω,Balance
  • eparation:60dB Pilot Signal Modulation:8%~10%
  • Sub-carrier Suppression:≥65dB
  • Audio Input Level:±10dBm,step 0.01dB
  • S/N:≥75dB(30H~15kHz,100%)
  • Audio Harmonic Distortion:<0.05%
  • Audio response: ±0.05dB(30Hz~15KHz)
  • Output Load Impedance:50Ω
  • Output Power:0~1000W
  • Deviation:±75kHz

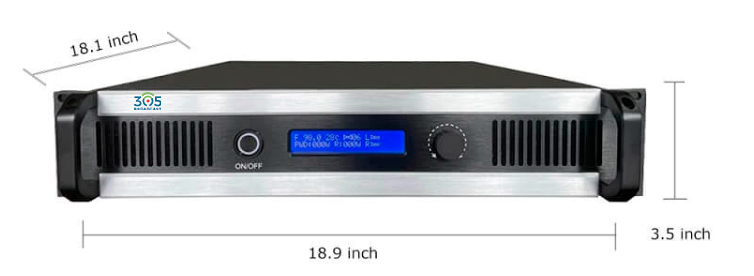

  • Size:460mm*480mm*88mm
  • Weight:15KG

Other Features

  • Overheat Protection
  • SWR Protection
  • Fan Failure Alarm
  • Ajustable Power
