305 TV Studio Pack GY-HC500U
The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.
If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast. Let our engineers assist you and provide a complete turnkey solution.

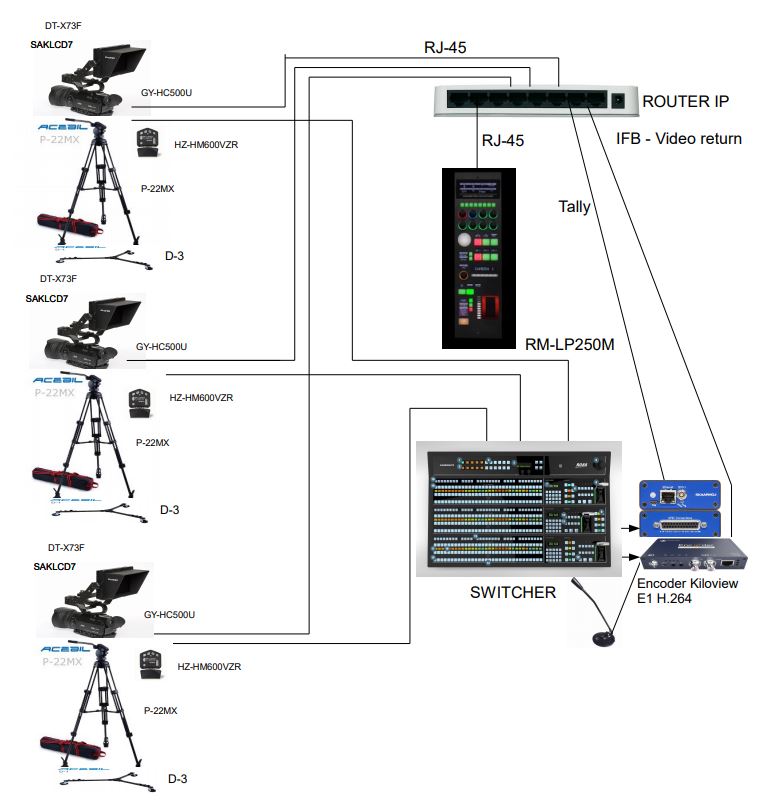

The 305 TV Studio Pack GY-HC500U Includes:
QTY |
MODEL |
DESCRIPCION |
3 |
GY-HC500U |
HAND-HELD CONNECTED CAM™ 1-INCH CAMCORDER • 1-inch 4K CMOS sensor • 20x optical 3-ring zoom lens (28-560mm 35mm equiv.) • 40x dynamic zoom • F11 Sensitivity • 12-stop dynamic range • 10-bit ProRes 422 at 4K, 50/60p frame rates (SSD) • 4K UHD H.264 recording (up to 30p) • HDR recording, HLG or J-Log1 (10-bit) • SSD media (requires optional caddy) • Dual SDXC/SDHC media • 2 XLR audio inputs • IP connectivity via USB host, ethernet port • Streaming up to 20 Mbps • 4-position ND filter • IPX2 weather resistance |
3 |
DT-X73F |
7" LCD FIELD DISPLAY |
3 |
SA-KLCD7 |
MOUNTING BRACKET FOR DT-X73F VIEWFINDER |
3 |
P-22MX |
2-STAGE TRIPOD w/13 lb. PAYLOAD Includes: Mid level spreader, Extra handle, Carrying case |
3 |
D-3 |
DOLLY - HEAVY DUTY w/110 LB. PAYLOAD |
1 |
RM-LP250M |
IP CAMERA REMOTE CONTROL PANEL (multi-camera version) |
3 |
HZ-HM600VZR |
REMOTE LENS CONTROL FOR GY-HM170/200/600/650/850U/890U |
1 |
Encoder |
Kiloview SDI to NDI HX Encoder - To audio IFB and video return |
1 |
ETH-GPI |
SKAARHOJ ETH-GPI Link 8 Channel GPIO Control - |
