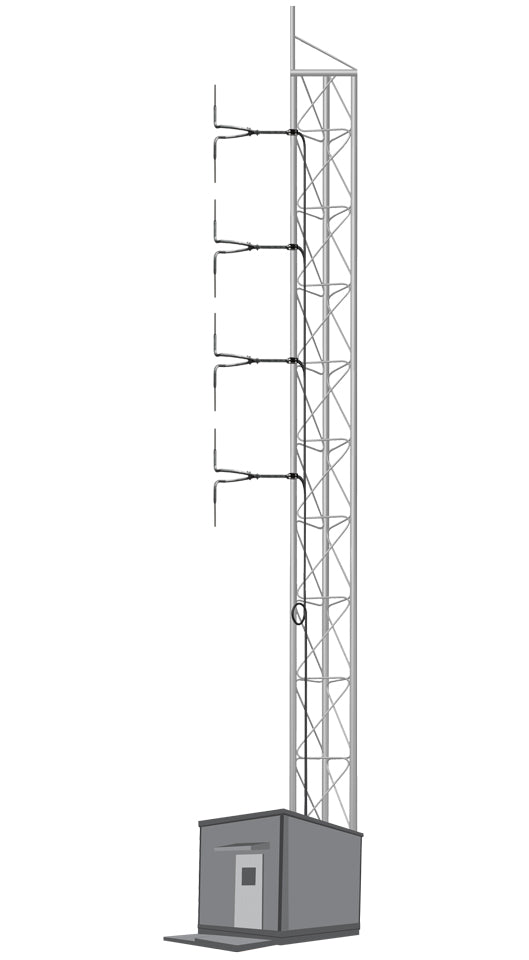

4 Bays Circular Polarization Tuned Antenna System 3 KW - AKG8


4 Bays Circular Polarization Tuned Antenna System 3 KW

MODEL: KG8-43

FM Antenna System 4 Bays , Circular Polarization, Narrow Band, 2 .3 db Gain, gain 4,5db  Power 3 KW, Connector In 7/8".

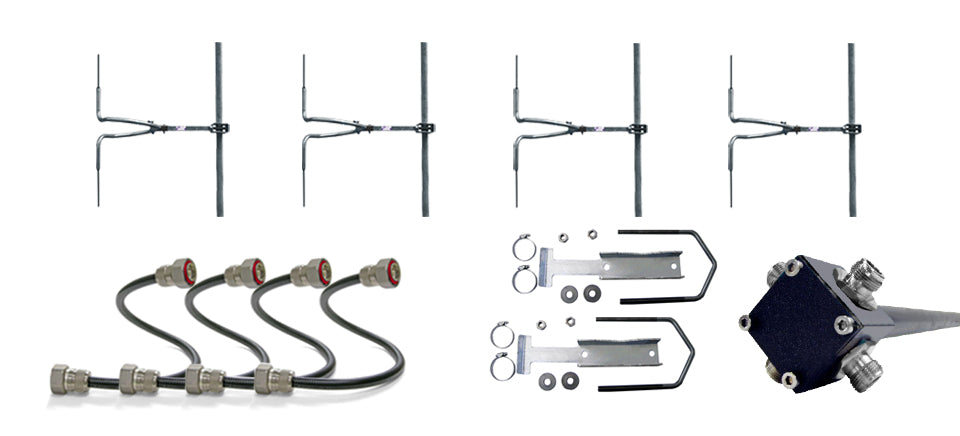

Composed of  4 Antennas AKG/8, + 1 Power Divider GAXF/4N, + 4  Jumper Cables CR213N5.5 +, 1 Clamp SAGA/2.

AKG 8 FM Narrow-band Antenna Features:

  • Omni directional antenna.
  • Circular polarization.
  • Narrow band.
  • Very resistant, yet very light..
  • Entirely made of stainless steel.
  • Due to the inherent selectivity, user must specify frequency of use when ordering.
  • For proper functioning, antenna must be mounted on a pole support and should not have any other antennas or metal structures nearby.
AKG/8
FREQ. RANGE 87.5 – 108 Mhz
IMPEDANCE 50 Ohm
V.S.W.R. <1.2:1
GAIN – 1.5dBd
BANDWIDTH 300 KHz
CONNECTOR N
MAX POWER 500W
POLARIZATION Circular
WEIGHT 3.4 Kg
DIMENSIONS 58x35x85 cm



VSWR:
