4 BAYS FM ANTENNA SYSTEM FOR 10 KW - AKG7

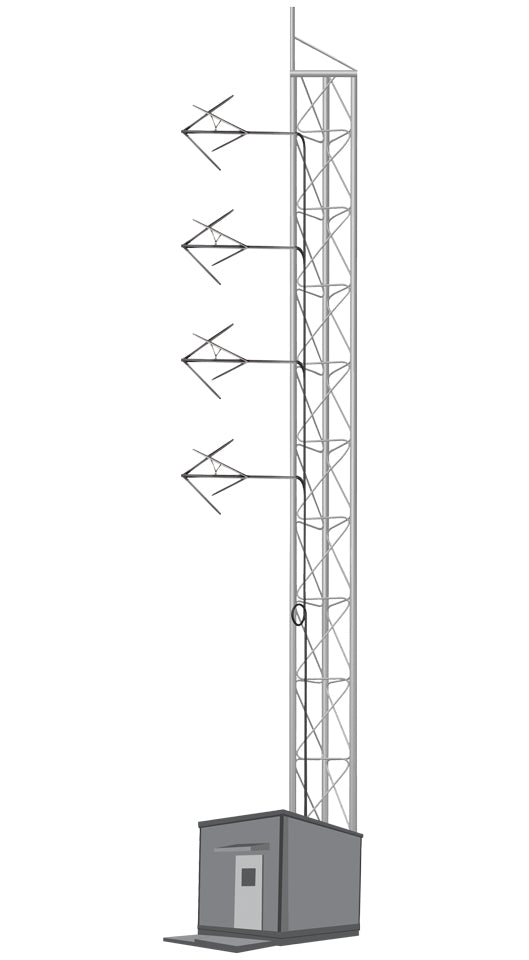

4 BAYS FM ANTENNA SYSTEM FOR 10 KW

MODEL  AKG7-410

Circular polarization, Penetrator Type FM Antenna System 4 bays,. BROADBAND, Gain 4,5 db, Power 10kW, Input connector 1-5/8".

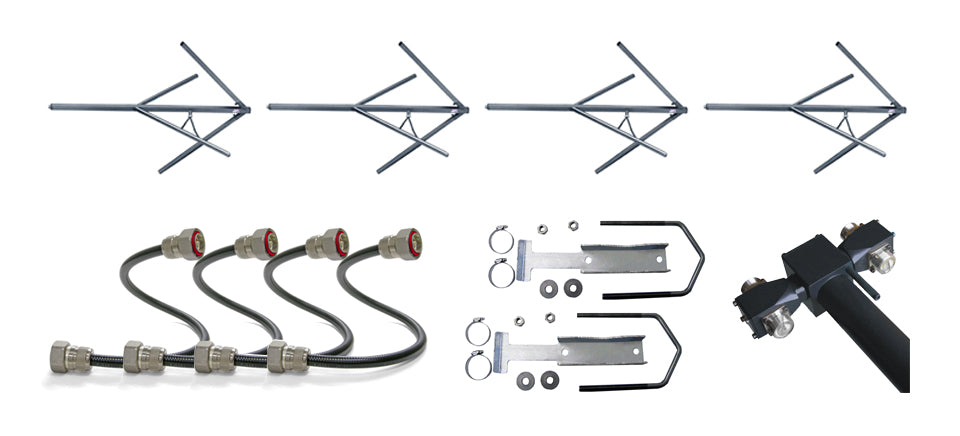

Composed of  4 Antennas AKG/7M, + Power Divider GAXS/4M, + 4 Jumper Cables CRC127165.5, + Clamp SAGA/2.

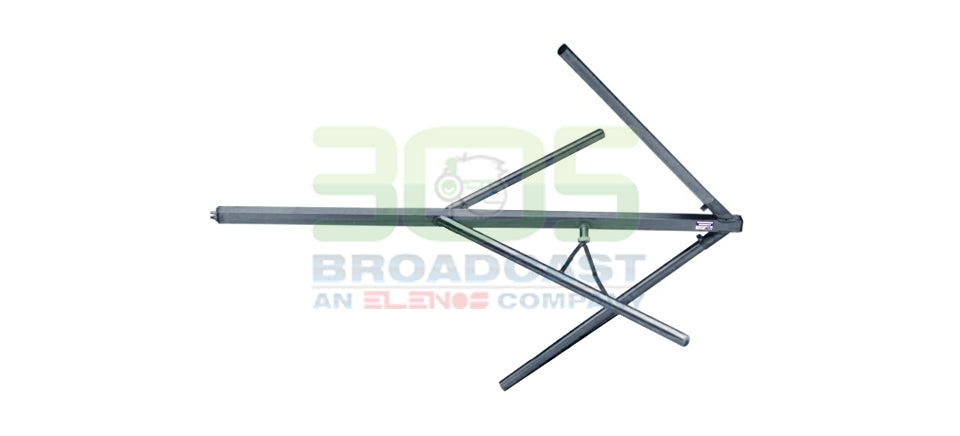

AKG 7 FM wide-band Antenna Features:

  • Omni directional antenna.
  • Circular polarization.
  • Wide band.
  • Very resistant, entirely made of stainless steel and PTFE insulator.
  • Demountable into several parts to facilitate shipping.
  • For proper functioning, antenna must be mounted on a pole support and should notÿhave any other antennas or metal structures nearby.

TECHNICAL DATA


AKG/7N AKG/7M AKG/7F
FREQ. RANGE 87.5 – 108 Mhz 87.5 – 108 Mhz 87.5 – 108 Mhz
IMPEDANCE 50 Ohm 50 Ohm 50 Ohm
V.S.W.R. <1.25:1 <1.25:1 <1.25:1
GAIN – 1.5dBd – 1.5dBd – 1.5dBd
CONNECTOR N 7/16 7/8
MAX POWER 800W 2KW 3KW
POLARIZATION Circular Circular Circular
WEIGHT 10.9 Kg 10.9 Kg 11 Kg
DIMENSIONS 152x124x115 cm 152x124x115 cm 152x124x115 cm
