305 Broadcast - 6 Bays Circular Polarization Tuned Antenna System 4.5 KW / AKG8

$3,965.00
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

305 Broadcast - 6 Bays Circular Polarization Tuned Antenna System 4.5 KW / AKG8

MODEL: KG8-64.5

FM Antenna System 6 dipoles, Circular Polarization, Narrow Band, Gain 6 db, Power 4.5kW, Connector In 7/8".

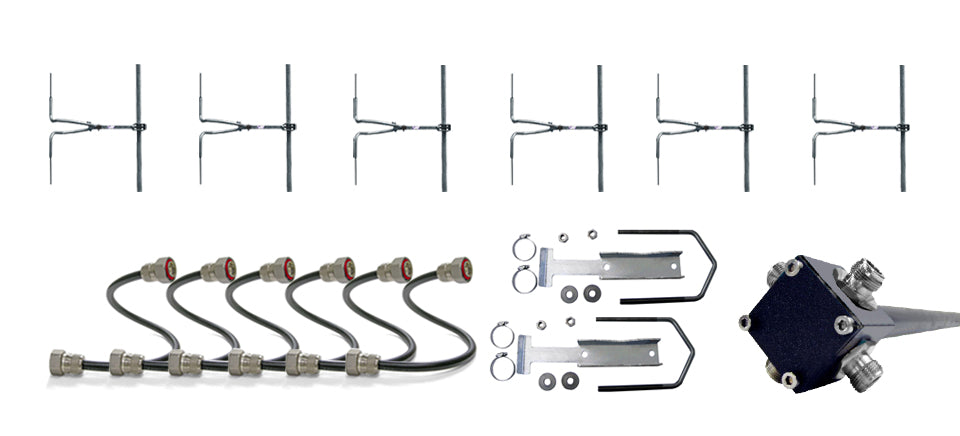

Composed of 6 Antennas AKG/8, +  1 Power Divider GAXF/6N, + 6 Jumper Cables CR213N8.5, + 1 Clamp SAGA/2.

AKG 8 FM Narrow-band Antenna Features:

  • Omni directional antenna.
  • Circular polarization.
  • Narrow band.
  • Very resistant, yet very light..
  • Entirely made of stainless steel.
  • Due to the inherent selectivity, user must specify frequency of use when ordering.
  • For proper functioning, antenna must be mounted on a pole support and should not have any other antennas or metal structures nearby.

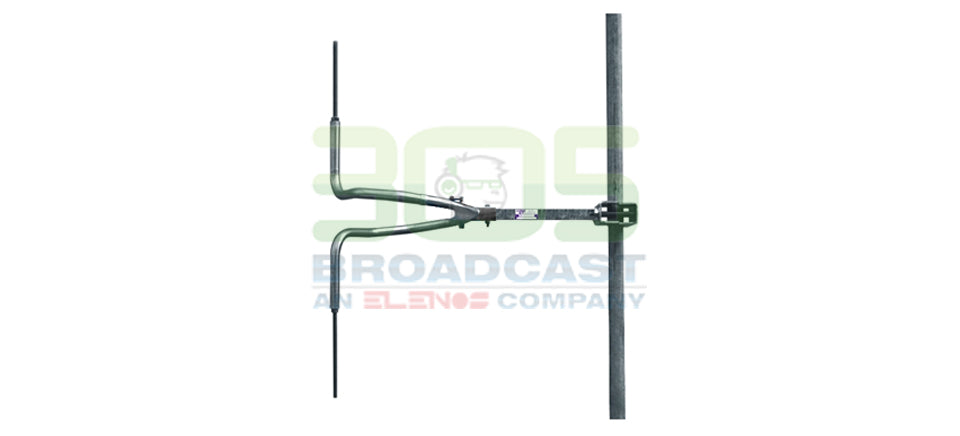

AKG/8
FREQ. RANGE 87.5 – 108 Mhz
IMPEDANCE 50 Ohm
V.S.W.R. <1.2:1
GAIN – 1.5dBd
BANDWIDTH 300 KHz
CONNECTOR N
MAX POWER 500W
POLARIZATION Circular
WEIGHT 3.4 Kg
DIMENSIONS 58x35x85 cm



VSWR:
