305 Broadcast - 6 BAYS FM ANTENNA SYSTEM FOR 10 KW / AKG7
MODEL AKG7-610
FM Antenna System 6 Bays, Circular Polarization BROADBAND, Gain 6 db, Power 12kW, 1-5/8".Input connector

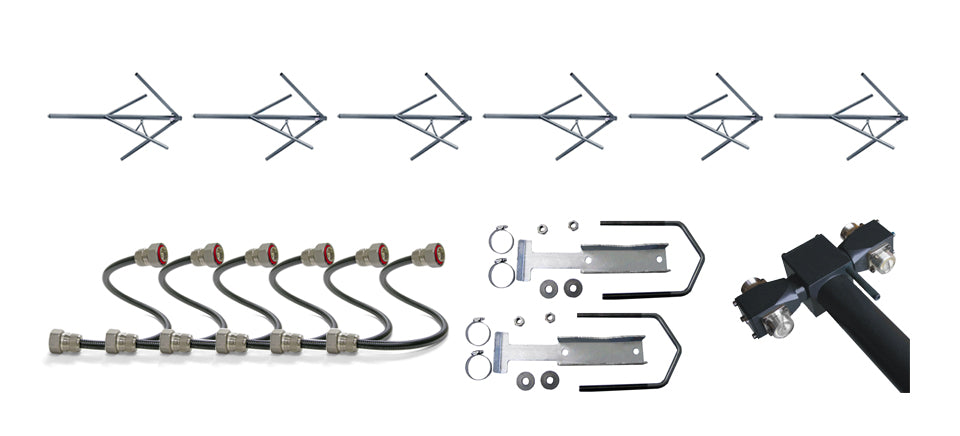

Composed of 6 Antennas AKG/7M,+ 1 Power Divider GAXS/6M, + 6 Juamper Cables +CRC127168.5, 1 Clamp SAGA/2.

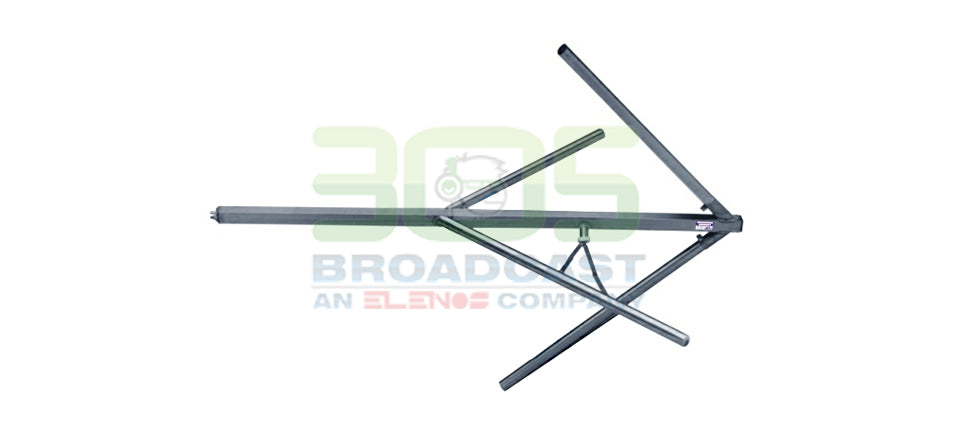

AKG 7 FM wide-band Antenna Features:
- Omni directional antenna.
- Circular polarization.
- Wide band.
- Very resistant, entirely made of stainless steel and PTFE insulator.
- Demountable into several parts to facilitate shipping.
- For proper functioning, antenna must be mounted on a pole support and should notÿhave any other antennas or metal structures nearby.
| AKG/7N | AKG/7M | AKG/7F | |
|---|---|---|---|
| FREQ. RANGE | 87.5 – 108 Mhz | 87.5 – 108 Mhz | 87.5 – 108 Mhz |
| IMPEDANCE | 50 Ohm | 50 Ohm | 50 Ohm |
| V.S.W.R. | <1.25:1 | <1.25:1 | <1.25:1 |
| GAIN | – 1.5dBd | – 1.5dBd | – 1.5dBd |
| CONNECTOR | N | 7/16 | 7/8 |
| MAX POWER | 800W | 2KW | 3KW |
| POLARIZATION | Circular | Circular | Circular |
| WEIGHT | 10.9 Kg | 10.9 Kg | 11 Kg |
| DIMENSIONS | 152x124x115 cm | 152x124x115 cm | 152x124x115 cm |
