AOLAKG7-65

AKG 7 6 bays

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

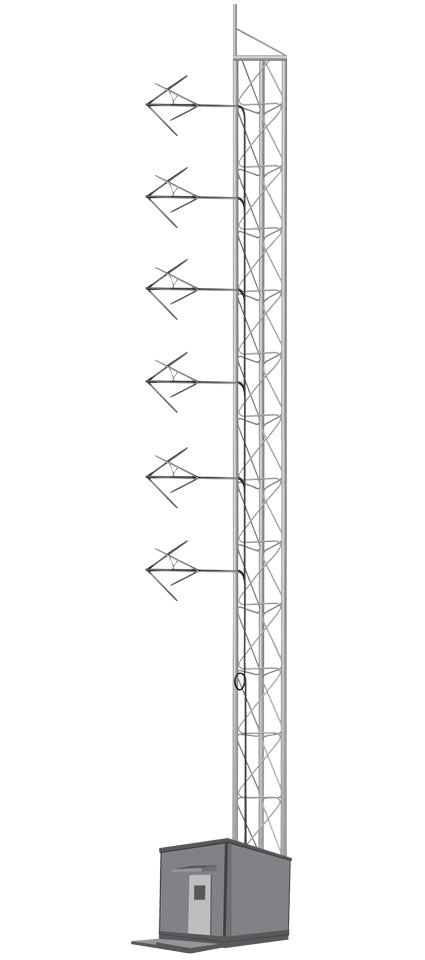

305 Broadcast - 6 BAYS FM ANTENNA SYSTEM FOR 5KW / AKG7




DOWNLOAD DATA SHEET

MODEL  AKG7-65

FM Antenna System 6 Bays, Circular Polarization BROADBAND, Gain 6 db, Power 5kW,  7/8".Input connector

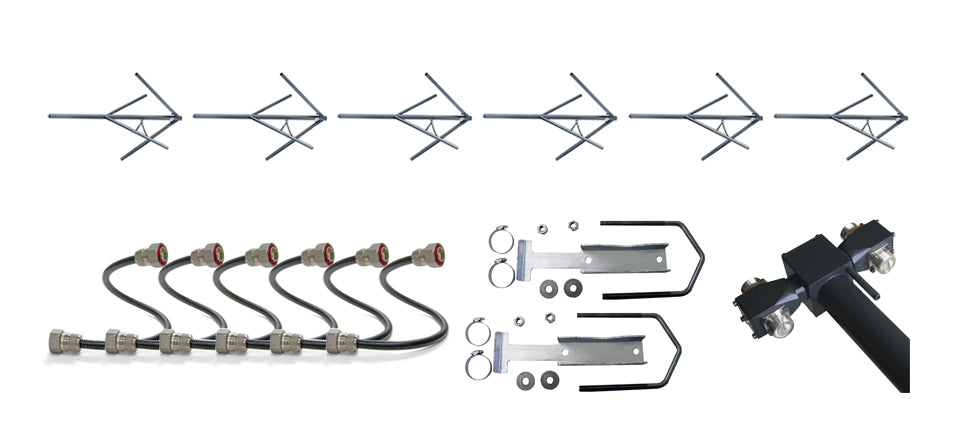

Composed of  6 Antennas AKG/7M,  +1 Power Divider GAXF/6M, + 6 Juamper Cables CRC127168.5, + 1 Clamp SAGA/2.

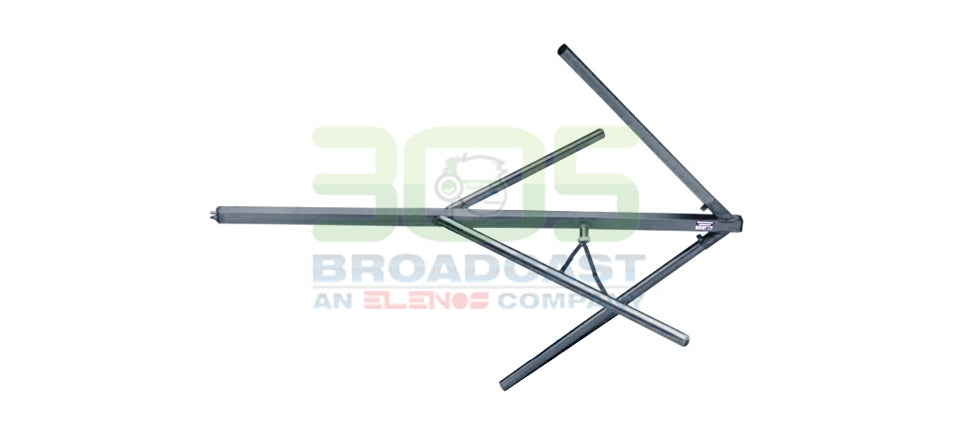

AKG 7 FM wide-band Antenna Features:

  • Omni directional antenna.
  • Circular polarization.
  • Wide band.
  • Very resistant, entirely made of stainless steel and PTFE insulator.
  • Demountable into several parts to facilitate shipping.
  • For proper functioning, antenna must be mounted on a pole support and should notÿhave any other antennas or metal structures nearby.



TECHNICAL DATA


AKG/7N AKG/7M AKG/7F
FREQ. RANGE 87.5 – 108 Mhz 87.5 – 108 Mhz 87.5 – 108 Mhz
IMPEDANCE 50 Ohm 50 Ohm 50 Ohm
V.S.W.R. <1.25:1 <1.25:1 <1.25:1
GAIN – 1.5dBd – 1.5dBd – 1.5dBd
CONNECTOR N 7/16 7/8
MAX POWER 800W 2KW 3KW
POLARIZATION Circular Circular Circular
WEIGHT 10.9 Kg 10.9 Kg 11 Kg
DIMENSIONS 152x124x115 cm 152x124x115 cm 152x124x115 cm
