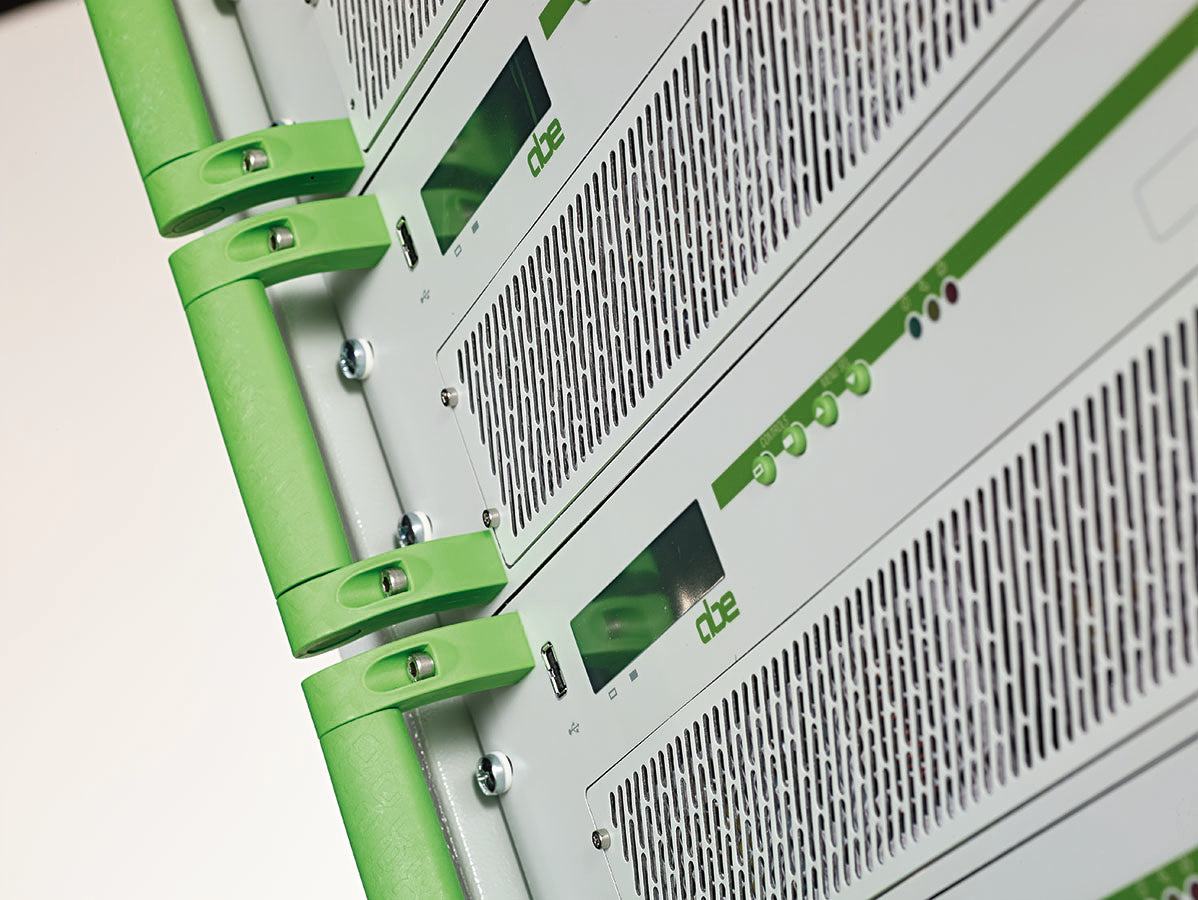

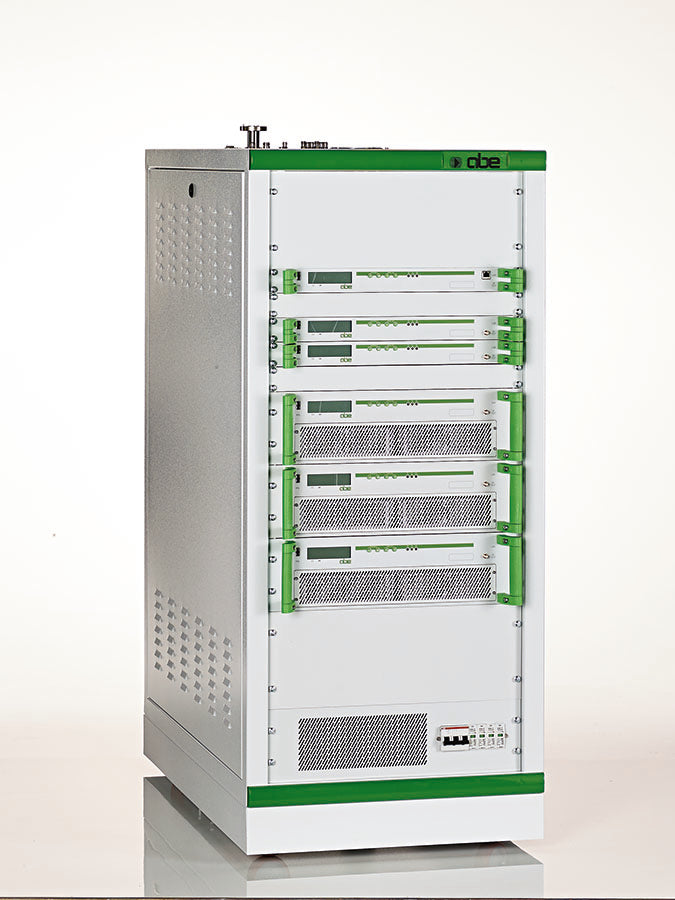

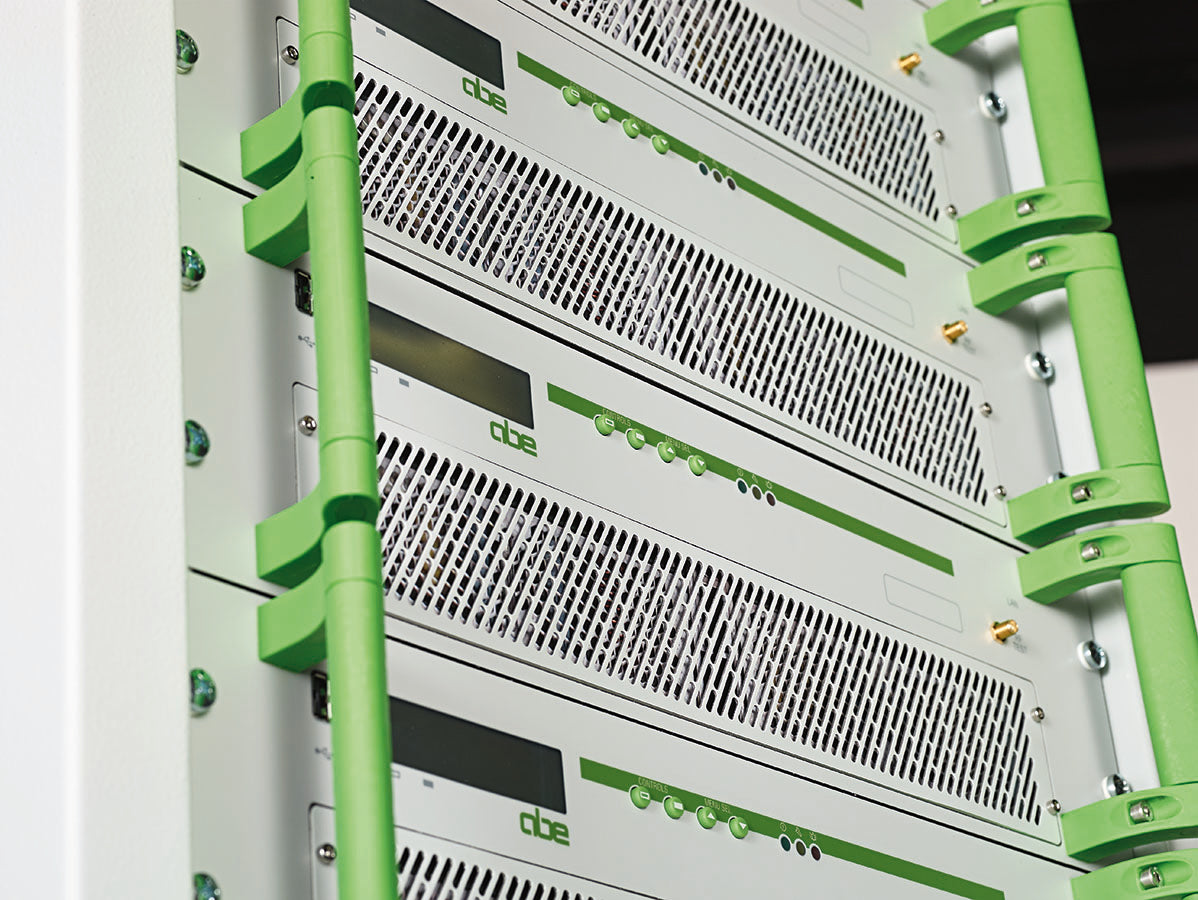

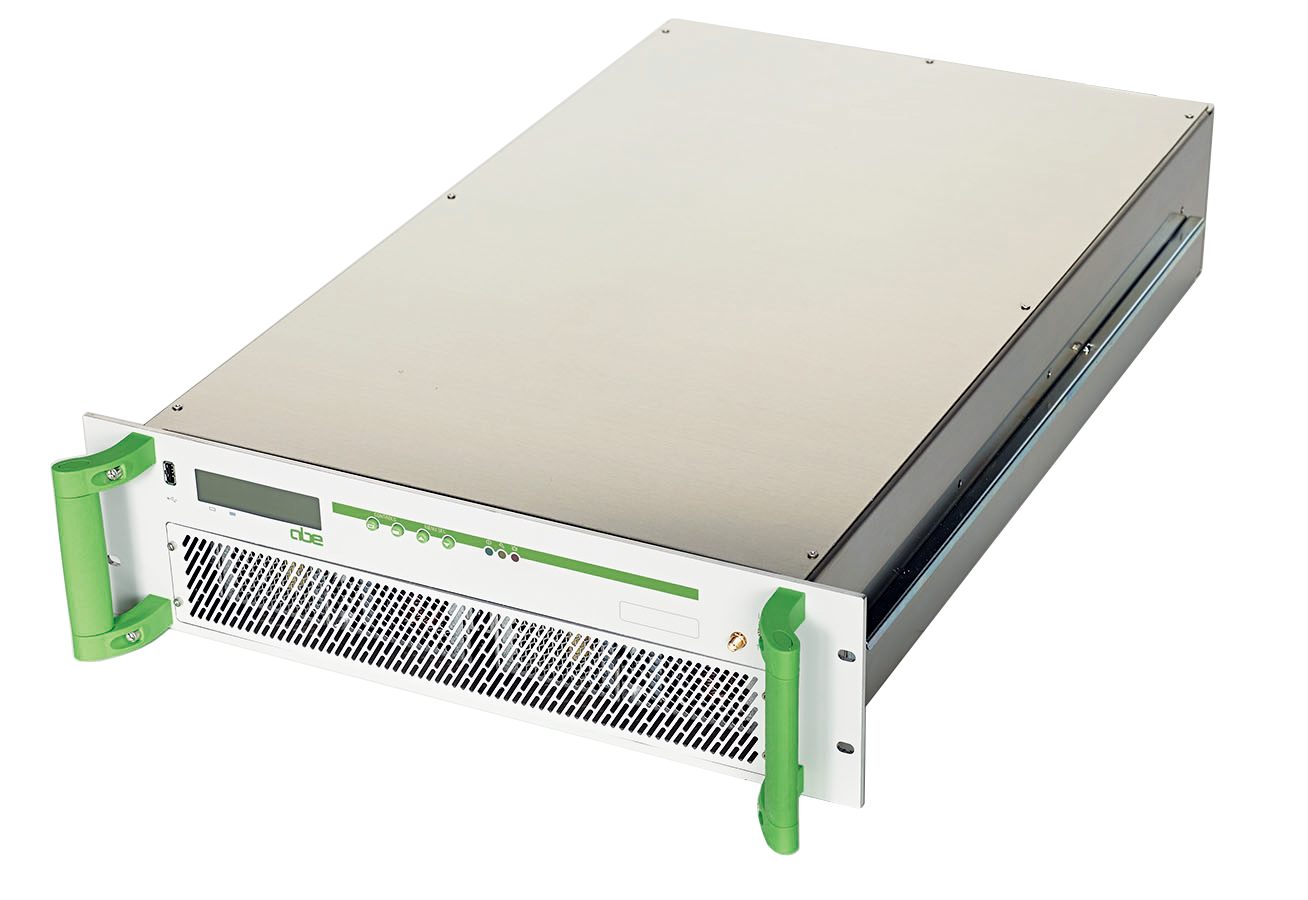

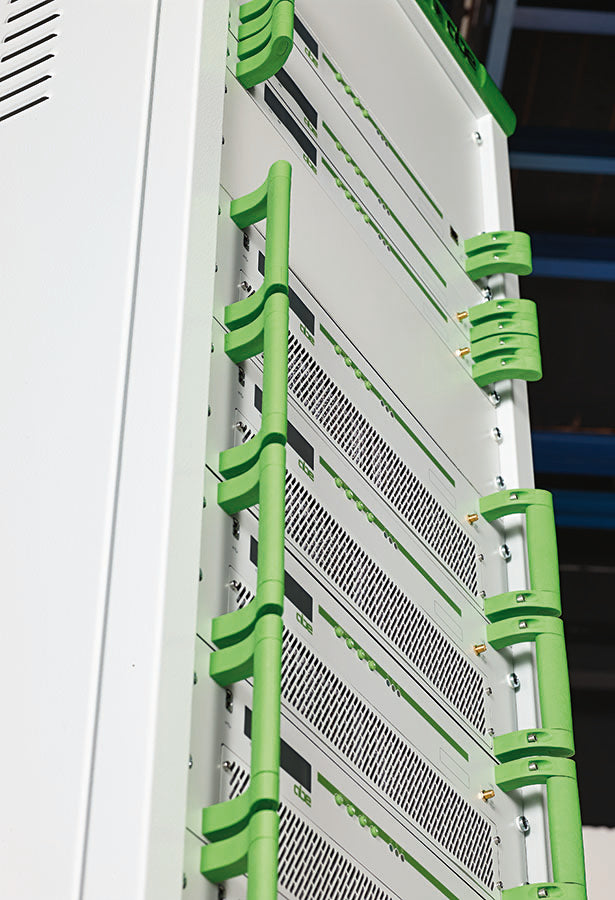

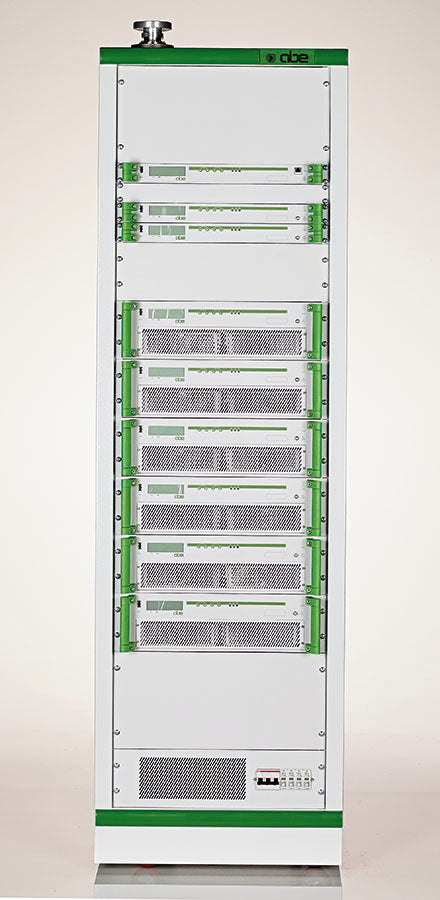

ABE HIGH POWER DUAL CAST VHF BIII TV TRANSMITTERS
The MTX Series of High Power TV Transmitters is the ultimate in technology, quality and performance in the Broadcast industry; it is designed to take advantage of the excellence of the digital modulation systems to generate both Analog and Digital emissions (DVB-T2, DVB-T/H, ISDB-T/Tb, ATSC and other standards).
The MTX Series brings together the highly efficient and reliable ABE LD-MOS broadband Power Amplifiers with state-of-the-art technological solutions.
Multistandard analog transmitters with digital DDS modulator (PAL/SECAM/NTSC B, G, D, I, K, K1, M and N standards supported
Multistandard digital transmitters (DVB-T2, DVB-T/H, ISDB-T/Tb and other standard)
Embedded GNSS Receiver for SFN Networks
Wide choice of input interfaces: ASI, Ethernet for T.S. over IP, DVB-S/S2 Multistream receiver, Digital Terrestrial Receiver, analog Video/Audio
RF output: UHF, VHF Band I and Band III
Frequency Agile Direct Digital Synthesizer with 1Hz resolution
Adaptive precorrection option
Hot Pluggable Power Supply Modules
Hot Pluggable Power Amplifiers
High efficiency Broadband Amplifiers
High degree of operational reliability: single or dual drive, passive stand-by systems (1+1 or N+1)
User Friendly local and remote control includes on-board display, Web GUI, SNMP and e-mail client
Open platform design to satisfy both today's and tomorrow's needs
The ultimate in technology, quality, performance and reliability
Low cost of ownership, low capital cost, running expenses & maintenance
Complete range of options and configurations to satisfy any need
