ABE LOW POWER DUAL CAST VHF BIII TV TRANSMITTERS

Size

ABE LOW POWER DUAL CAST VHF BIII TV TRANSMITTERS

The MTX Series of Low Power TV Transmitters - Transposers - Gap-fillers is the ultimate in technology, quality and performance; it is designed to take advantage of the excellence of the digital modulation systems to generate both Analog and Digital emissions (DVB-T2, DVB-T/H, ISDB-T/Tb, ATSC and other standards).

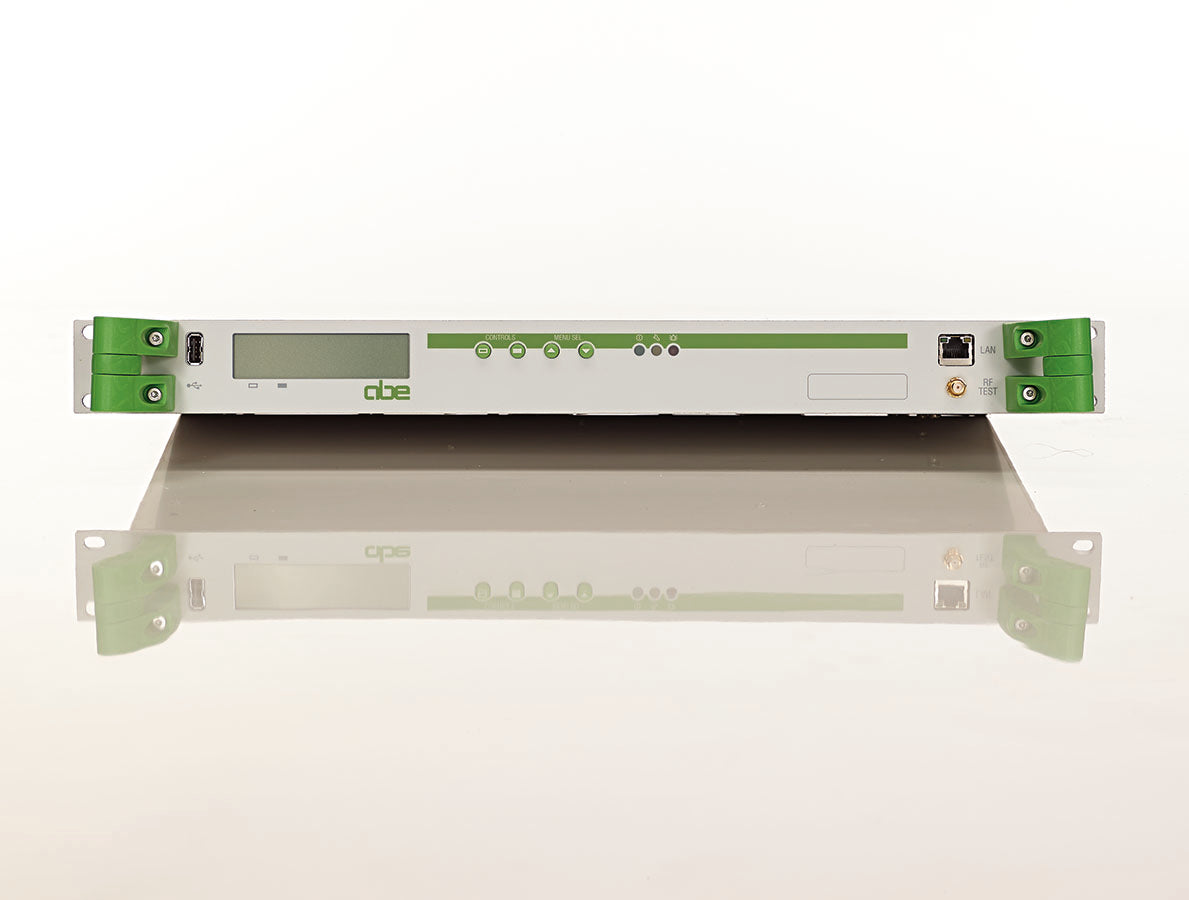

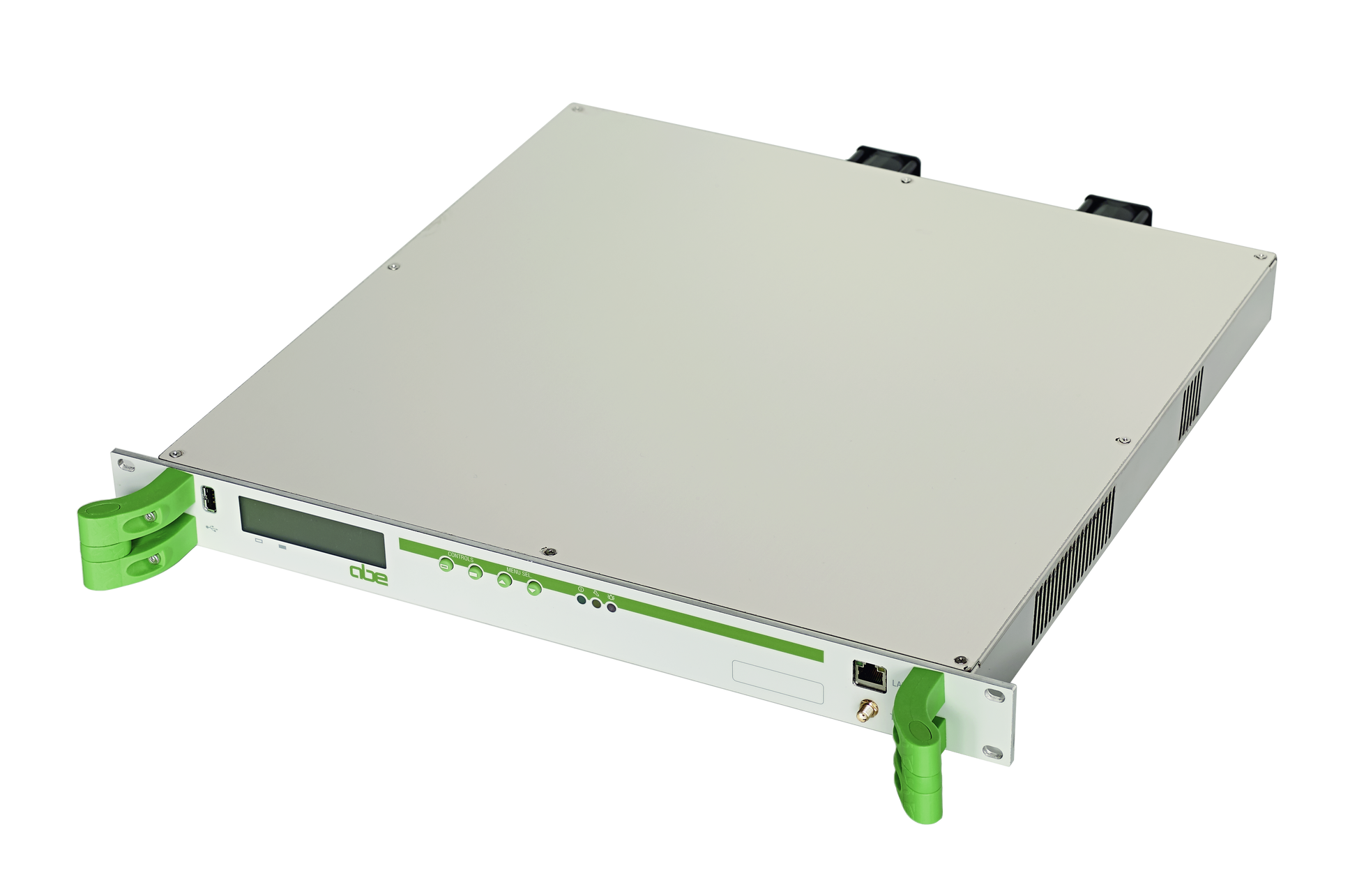

The MTX Low Power Transmitters are a compact solution housed a single 19” rack drawer (up to 3U).

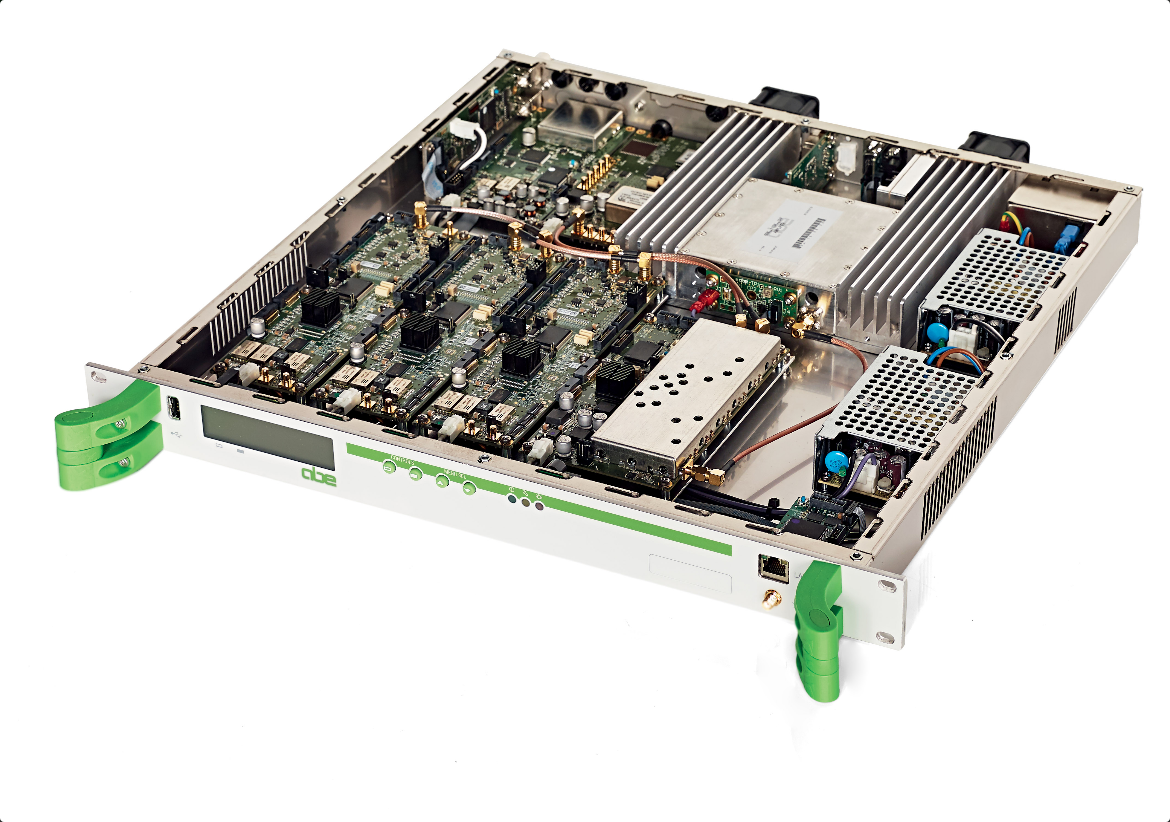

The MTX Series brings together the highly efficient and reliable LD-MOS broadband Power Amplifiers with state-of-the-art technological solutions.

Key Features

  • Multistandard analog modulation with digital processing (PAL/SECAM/NTSC B, G, D, I, K, K1, M and N standards supported)
  • Multistandard digital modulation (DVB-T2, DVB-T/H, ISDB-T/Tb and other standard)
  • Available configurations: Modulator - Transmitter - Transposer - Transmodulator - Gap-filler...
  • Wide choice of input interfaces: ASI, Ethernet for T.S. over IP, DVB-S/S2 Multistream receiver, Digital Terrestrial Receiver, analog Video/Audio
  • RF output: UHF, VHF Band I and Band III
  • Hot Pluggable Power Supply Modules
  • Frequency Agile Direct Digital Synthesizer with 1Hz resolution
  • Adaptive precorrection option
  • User Friendly local and remote control includes on-board display, Web GUI, SNMP and e-mail client

Main Benefits

  • Compact solution integrating transmitter driver and power amplifier in a single rack drawer
  • Open platform design to satisfy both today's and tomorrow's needs
  • The ultimate in technology, quality, performance and reliability
  • Low cost of ownership, low capital cost, running expenses & maintenance
  • Complete range of options and configurations to satisfy any need
