ABE MTX LOW POWER ISDB-T DIGITAL UHF TV TRANSMITTERS

ABE MTX LOW POWER ISDB-T DIGITAL UHF TV TRANSMITTERS

The MTX Series of Low Power TV Transmitters - Transposers - Gap-fillers is the ultimate in technology, quality and performance; it is designed to take advantage of the excellence of the digital modulation systems to generate both Analog and Digital emissions (DVB-T2, DVB-T/H, ISDB-T/Tb, ATSC and other standards).

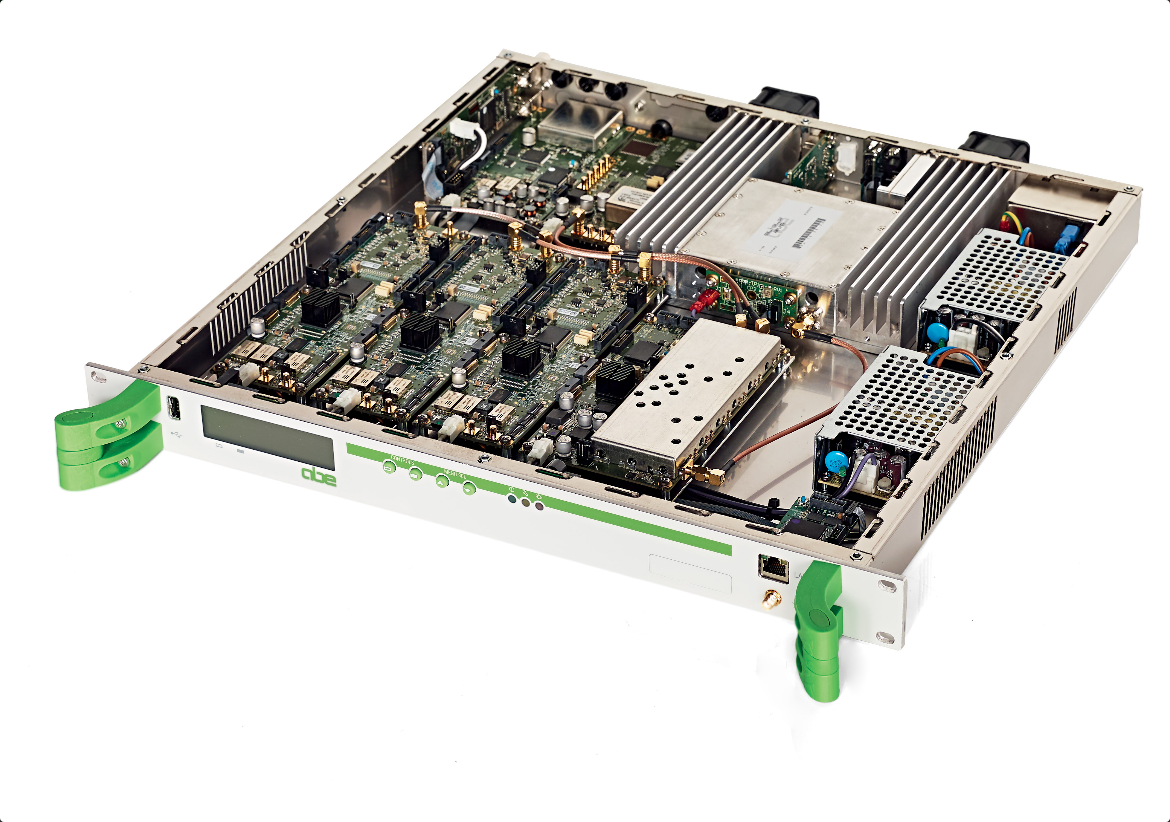

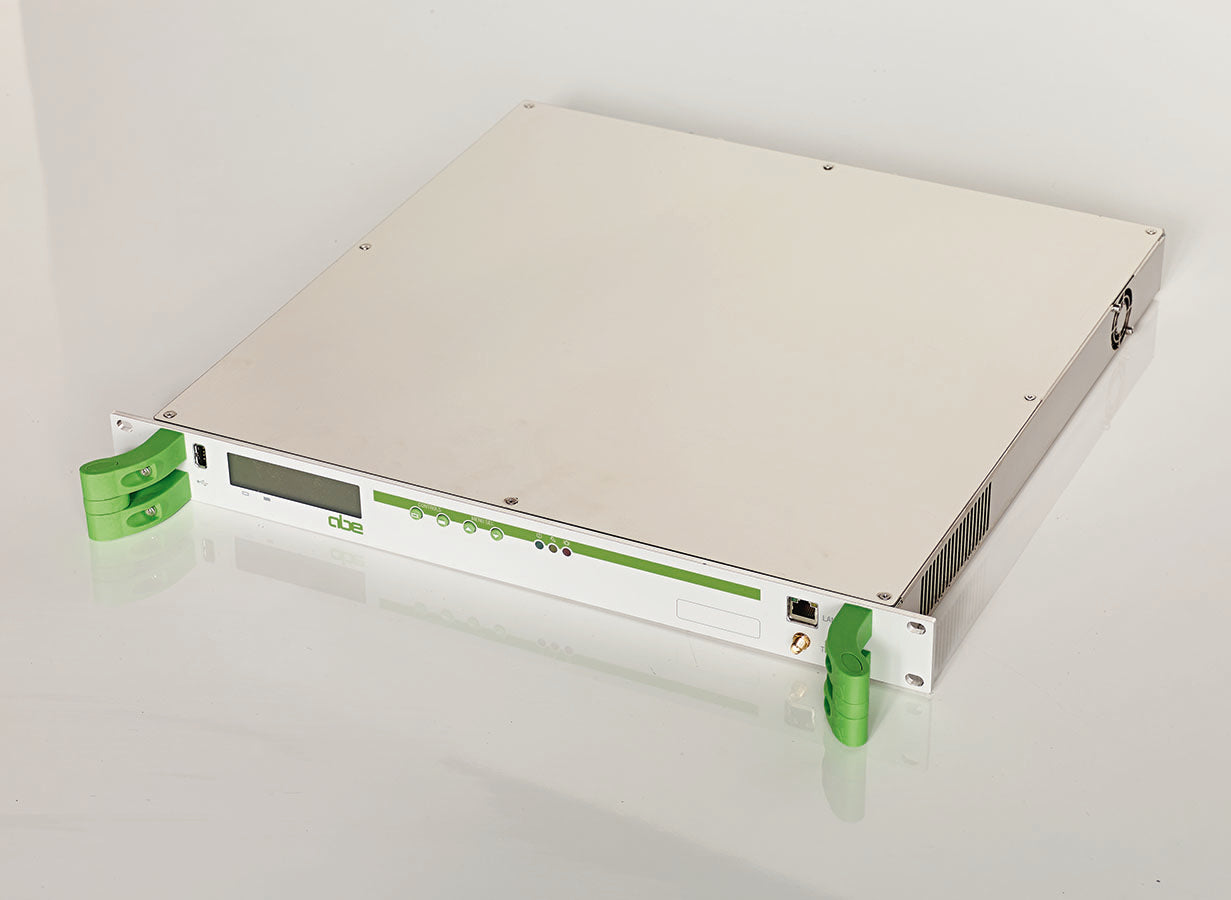

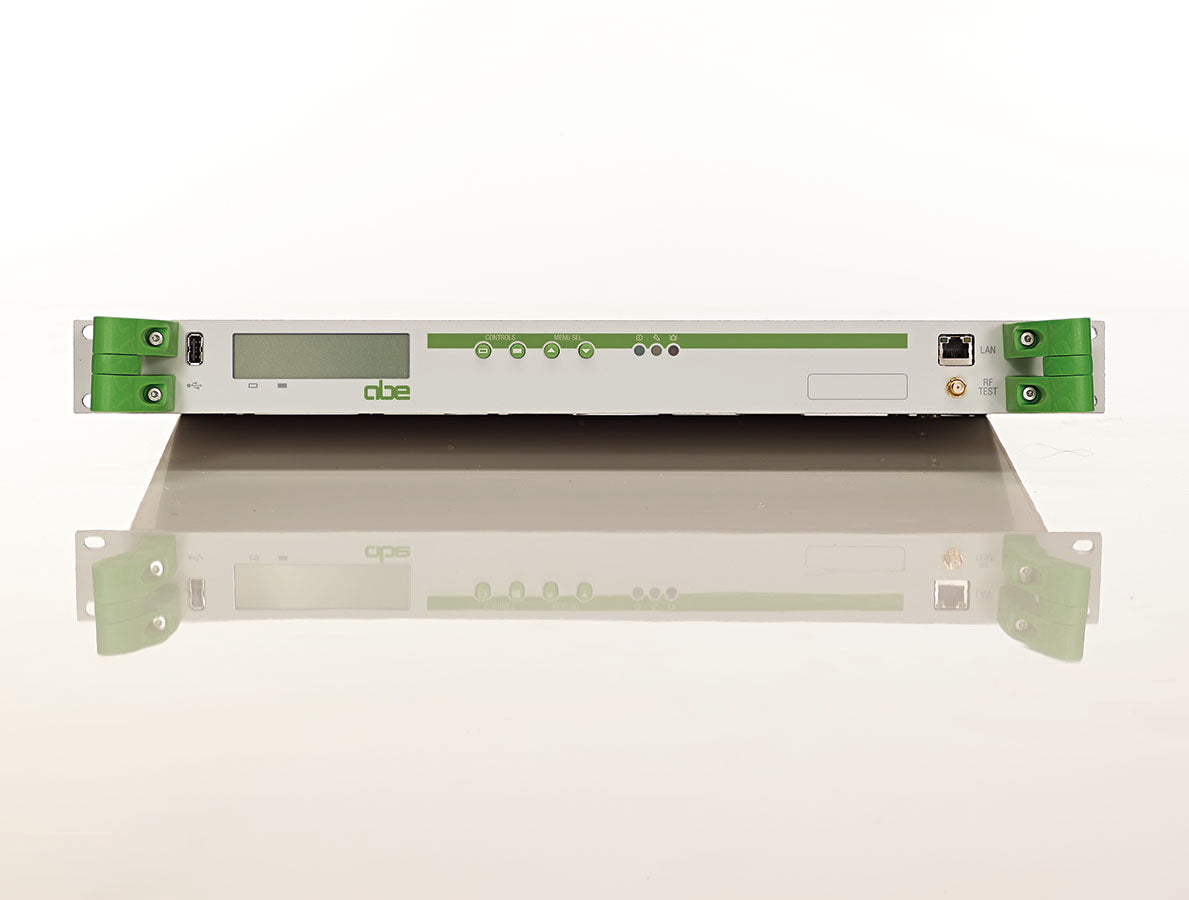

The MTX Low Power Transmitters are a compact solution housed a single 19” rack drawer (up to 3U).

The MTX Series brings together the highly efficient and reliable LD-MOS broadband Power Amplifiers with state-of-the-art technological solutions.

Key Features

• Multistandard analog modulation with digital processing (PAL/SECAM/NTSC B, G, D, I, K, K1, M and N standards supported)
• Multistandard digital modulation (DVB-T2, DVB-T/H, ISDB-T/Tb and other standard)
• Available configurations: Modulator - Transmitter - Transposer - Transmodulator - Gap-filler...
• Wide choice of input interfaces: ASI, Ethernet for T.S. over IP, DVB-S/S2 Multistream receiver, Digital Terrestrial Receiver, analog Video/Audio
• RF output: UHF, VHF Band I and Band III
• Hot Pluggable Power Supply Modules
• Frequency Agile Direct Digital Synthesizer with 1Hz resolution
• Adaptive precorrection option
• User Friendly local and remote control includes on-board display, Web GUI, SNMP and e-mail client

Main Benefits

• Compact solution integrating transmitter driver and power amplifier in a single rack drawer
• Open platform design to satisfy both today's and tomorrow's needs
• The ultimate in technology, quality, performance and reliability
• Low cost of ownership, low capital cost, running expenses & maintenance
• Complete range of options and configurations to satisfy any need
