ADTEC RD-30-01

$2,800.00
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

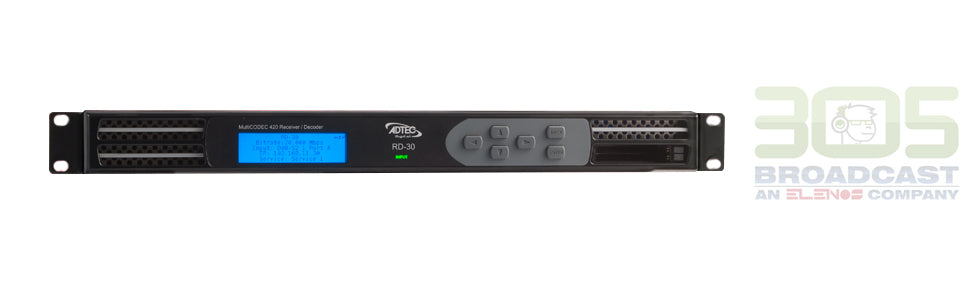

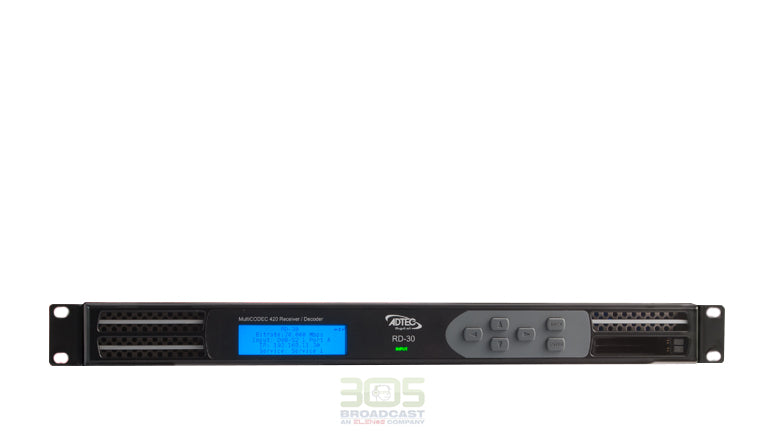

RD-30 Multi-CODEC Decoder / IRD



Overview



The Adtec RD-30 is a hardware integrated received decoder capable of HD/SD MPEG 2 / MPEG 4 4:2:0 decoding.  It's Input/Output robustness, feature set and reliability allows it to operate in satellite, terrestrial, IP and fiber applications covering multiple aspects of Broadcast, Digital TV, Distribution, Contribution and Turn-around.  The clean Web User Interface, Front Panel and SNMP interfaces provide multiple control options from single user control to corporate NMS integrated control.  The RD-30 can be purchased without (RD30-01) or with (RD30-01-LB) an integrated DVB-S/S2 demodulator that supports up to 32APSK with DVB-CI capabilities.



Standard transport stream input/output includes ASI and 2x physical GigE ports.  Up to 2x IP receive profiles may be configured and up to 10x IP egress profiles may be defined for IP egress.  Standard video outputs include SDI, Composite and HDMI. Standard audio includes two (2) audio PIDs available for processing. Dolby E/Dolby D/Dolby D+ pass-through, MPEG 1 Layer 2, AAC-LC, AAC-HE (v1/v2), Dolby Digital (AC-3) and Dolby Digital+ (E-AC-3) downmix decoding.  Genlock is standard on all models.



Optional in-field upgradable software keys can also be purchased for the product.  Two (2) stereo pairs for a total of four audio PIDs of processing, Discrete Surround decoding, SMPTE 2022 FEC Output, SCTE 35 to 104 Conversion, CableLabs ESAM POIS Interface, BISS E/1 and Service Filtering capability keys are available for both models.  The RD30-01-LB can be in-field upgraded to support 16/32APSK, VCM, MultiStream ISI and MultiCAM descramble capability.





Applications



Satellite, Terrestrial and IP Distribution



Transport Turn Around (Satellite/ASI/IP to ASI/IP)



Tier Two/Three Video Contribution, DSNG



Teleport Infrastructure



Descrambler with encrypt/decrypt control on unique transport outputs



Demultiplexing/Service Filtering (Multiple Program Transport Stream to Program Reduced Transport Stream)



Radio Decoding



Teletext / Closed Caption Overlay monitoring



AAC and Dolby Surround Decoder
