Adtec Digital’s RD‐71 is a standard, high and 1080P59.94/50 IRD supporting multi‐CODEC MPEG 2 and MPEG 4 AVC/H.264, multi‐CHROMA 4:2:0 and 4:2:2, 10Bit and very low latency decoding. 1 Frame end to end latency when paired with Adtec EN-200 encoder. The RD‐71 is interoperable with other encoders making it ideal for mission critical trunking, ad‐hoc OB, DSNG and teleport applications.

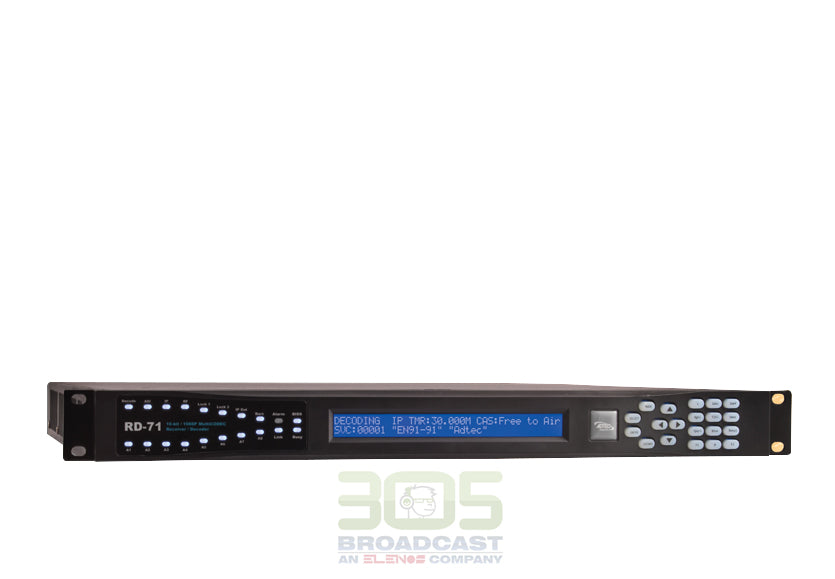

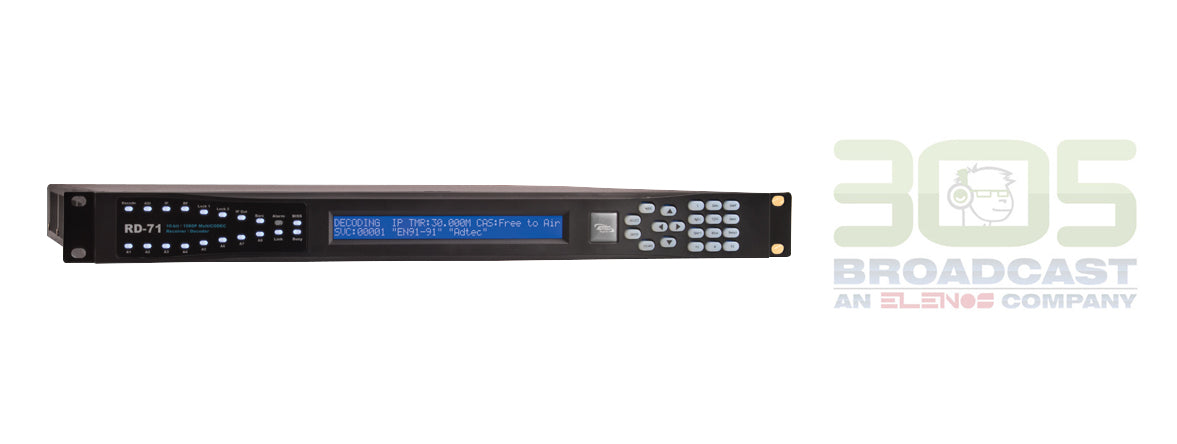

The lightweight, 1 RU chassis, 10 pound (4.5 Kilo) RD‐71 includes redundant AC power supplies, enhanced control and monitoring via its front‐panel, browser and SNMP interface, sixteen channels of audio decoding, robust VBI support, up to 32APSK demodulation, reliability, and ease of use for an extraordinary value.
The RD-71 supports MPEG 1 Layer 2, AAC-LC, Dolby Digital, Dolby E and Linear PCM audio. Transport service filtering allows the RD-71 to operate in bandwidth constrained turn-around applications. The RD‐71 IRD identifies services concurrently from ASI, IP and DVB‐S/S2 transport interfaces. The DVB‐S/S2 de‐modulator supports modes ranging from QPSK up to 32APSK with Multi‐stream ISI based on demodulator. Support is hardware and software license dependent.
AVC 4:2:2 10-bit 1080P 59.94/50 fps and MPEG 2 4:2:2 Video Decoding IRD
Sixteen (16) Channels of Audio Decoding
Full Frame 1080P 59.94/50 3G-SDI Decoding via 3G Copper and Fiber SFP Video Interfaces
MPEG 1 Layer 2, AAC-LC and Dolby Digital Audio Decoding
AAC-6.0 Surround Decoding Support
Dolby D, Dolby E and PCM Pass-Through
Service Filtering and IP Output
Simultaneously output HD and SD with on-board downscaler
Waveform and Ancillary support for Closed Captions and Teletext
SMPTE 2016 AFD and OP47 support
Tier One Contribution
3D and 4K (Ultra HD) Discrete Contribution
Fiber and IP Transport
High Efficiency Trunking
RF to IP Turn Around / Service Filtering
