SKU0642

Andrew 78EZDM (Old PN# AL5DM-PSA)

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

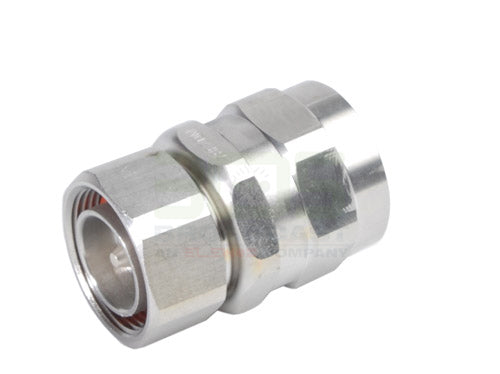

7-16 DIN Male EZfit?? for 7/8 in FXL-780 and AVA5-50 cable.

General Specifications: - Interface 716. - DIN Male. - Body Style Straight. - Brand EZfit?. - Mounting Angle Straight. Electrical Specifications: - Connector Impedance 50 ohm. - Operating Frequency Band 0 ? 5000 MHz. - Cable Impedance 50 ohm. - 3rd Order IMD 116. - dBm @ 1800 MHz. - 3rd Order IMD Test Method Two +43 dBm Carriers. - RF Operating Voltage, maximum (vrms) 1415.00 V. - dc Test Voltage 4000 V. - Outer Contact Resistance, maximum 1.50 mOhm. - Inner Contact Resistance, maximum 0.40 mOhm. - Insulation Resistance, minimum 5000 MOhm. - Average Power 3.0 kW @ 900 MHz. - Peak Power, maximum 40.00 kW. - Insertion Loss, typical 0.05 dB. - Shielding Effectiveness 130dB. Mechanical Specifications: - Outer Contact Attachment Method Clamp. - Inner Contact Attachment Method Captivated. - Outer Contact Plating Trimetal. - Inner Contact Plating Silver. - Attachment Durability 25 cycles. - Interface Durability 500 cycles. - Interface Durability Method IEC 1694:9.5. - Connector Retention Tensile Force 1334 N | 300 lbf. - Connector Retention Torque 8.13 Nm| 72.00 in lb. - Insertion Force 200.17 N | 45.00 lbf. - Insertion Force Method IEC 1691:15.2.4. - Pressurizable No. - Coupling Nut Proof Torque 24.86 Nm| 220.00 in lb. - Coupling Nut Retention Force 1000.85 N | 225.00 lbf. - Coupling Nut Retention Force Method MILC39012C3.25,4.6.22. Dimensions: - Nominal Size 7/8 in. - Diameter 37.21 mm | 1.47 in. - Length 53.30 mm | 2.10 in. - Weight 169.87 g | 0.37 lb.
