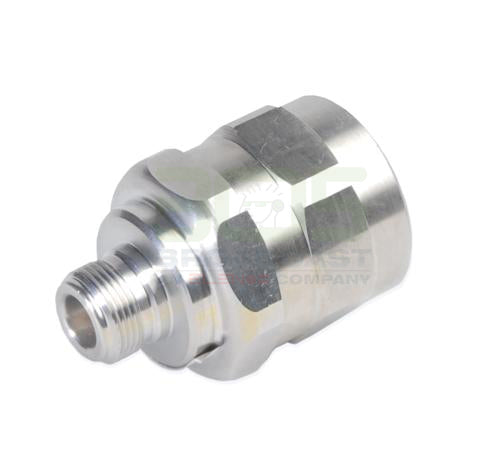

Andrew 78EZNF (Old PN# AL5NF-PSA)

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Type N Female EZfit?? for 7/8 in FXL-780 and AVA5-50 cable.

General Specifications: - Interface N Female. - Body Style Straight. - Brand EZfit?. - Mounting Angle Straight. Electrical Specifications: - Connector Impedance 50 ohm. - Operating Frequency Band 0 ? 5000 MHz. - Cable Impedance 50 ohm. - 3rd Order IMD 116. - dBm @ 1800 MHz. - 3rd Order IMD Test Method Two +43 dBm Carriers. - RF Operating Voltage, maximum (vrms) 707.00 V. - dc Test Voltage 2000 V. - Outer Contact Resistance, maximum 0.30 mOhm. - Inner Contact Resistance, maximum 2.00 mOhm. - Insulation Resistance, minimum 5000 MOhm. - Average Power 0.6 kW @ 900 MHz. - Peak Power, maximum 10.00 kW. - Insertion Loss, typical 0.05 dB. - Shielding Effectiveness 130 dB. Mechanical Specifications: - Outer Contact Attachment Method Clamp. - Inner Contact Attachment Method Captivated. - Outer Contact Plating Trimetal. - Inner Contact Plating Silver. - Attachment Durability 25 cycles. - Interface Durability 500 cycles. - Interface Durability Method IEC 16916:9.5. - Connector Retention Tensile Force 1334 N | 300 lbf. - Connector Retention Torque 8.13 Nm | 72.00 in lb. - Insertion Force 66.72 N | 15.00 lbf. - Insertion Force Method MILC39012C3.12, 4.6.9. - Pressurizable No. Dimensions: - Nominal Size 7/8 in. - Diameter 37.21 mm | 1.47 in. - Length 78.74 mm | 3.10 in. - Weight 278.00 g | 0.61 lb.
