SKU0648

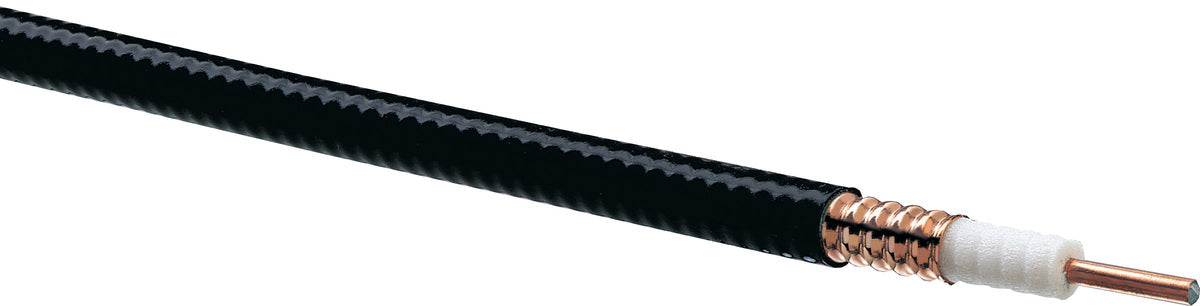

Andrew LDF4-50A, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Andrew LDF4-50A, HELIAX Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket



Dimensions

  • Diameter Over Dielectric:  12.954 mm | 0.51 in
  • Diameter Over Jacket: 15.875 mm | 0.625 in
  • Inner Conductor OD: 4.826 mm | 0.19 in
  • Outer Conductor OD: 13.97 mm | 0.55 in
  • Nominal Size: 1/2 in

Electrical Specifications

  • Cable Impedance: 50 ohm ±1 ohm
  • Capacitance: 75.8 pF/m | 23.104 pF/ft
  • dc Resistance, Inner Conductor: 1.48 ohms/km | 0.451 ohms/kft
  • dc Resistance, Outer Conducto: 2.69 ohms/km | 0.820 ohms/kft
  • Operating Frequency Band: 1 – 8800 MHz
  • Peak Power: 40kW
  • Velocity: 88 %
