AxelTech Falcon VS - Digital FM-Audio Processor 5-Band


AxelTech Falcon VS - Digital FM-Audio Processor 5-Band

All in One

Falcon VS is the high performing digital audio processor combining also the Stereo Generator and the RDS Encoder. It’s the all-in-one solution designed for FM broadcasting, WebRadio and Satellite stations.Falcon VS provides a great outstanding sound, thanks to the powerful DPSs, 5-band architecture, the dual band AGCs, 3-band equalizer, stereo enhancer, speech detector and 4 limiters. The control of each audio parameter allows the broadcaster to design its favorite audio preset to get a unique branded sound.
 The optional LAN port with the built-in Web Server allows to take the control of the processor and tune the audio from anywhere.The built-in digital Stereo Generator assures an extremely precise MPX Signal.
The RDS Encoder (optional) is compliant to UECP SPB490, provides 2 DataSet with a wide range of static services, including Radio Text.

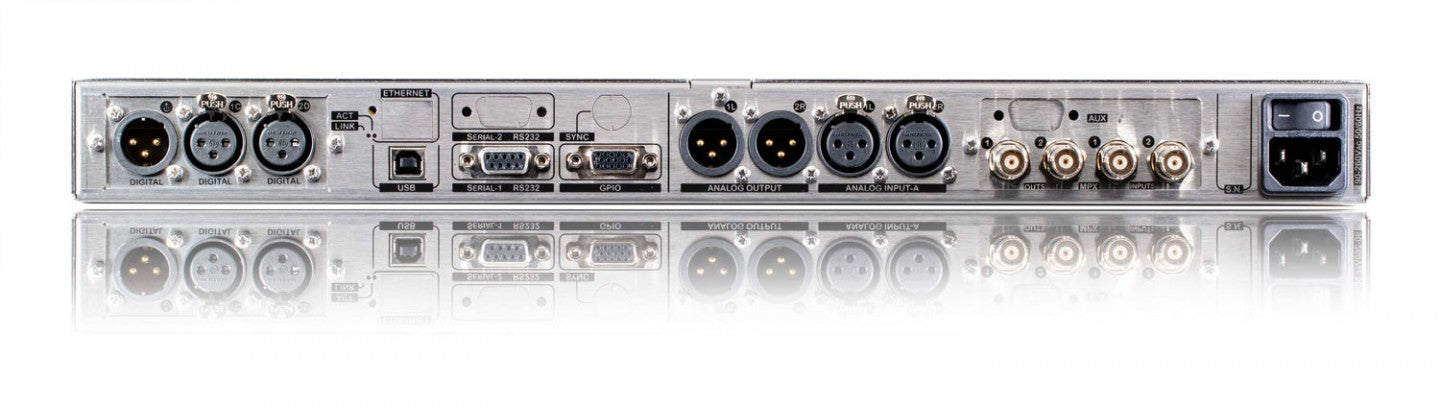

Falcon VS features a full connection/connectivity with analogue and digital I/O (over XLR connectors) and 2 independent MPX outputs, USB, GPI and serial ports. The hardware bypass circuit is always included to guarantee the presence of audio and continuity of audio programs.The features available on the Audio Processor are multiple and fully customizable: 5-band compression control, dual-band AGC, a 3-band EQ and brightness control.
 The parameterized Stereo Enhancer command provides to the radio station sound a spacing effect and large stereo horizon openings.
The Expander control allows to minimize backgrounds and unwanted noises, while the Overdrive and SuperBass deal to make an important sound at low and medium-low frequencies, creating an impressive sensation of loudness.
 The phases control of monophonic audio, gives the sound of the human voice a more natural and pleasant listening, while the final limiter drive maximizes the presence of sound.
 Falcon VS makes the sound of any single broadcaster unique without creating an artificial sound.



Main Features

  • 5-Band digital audio processor
  • Analog and AES/EBU input and output over XLR
  • Automatic audio input changeover
  • 2 Composite outputs and 2 AUX inputs
  • Stereo generator with composite clipper
  • Mpx power control - ITU-R BS.412
  • Digital RDS encoder with 2 data set
  • Multiband AGC, speech detector, 3-band EQ, stereo enhancer
  • Brilliance control, expander and superbass enhancer
  • Usb, serial, 4 GPIn 4 GPOut
