Barix 2017.9218P AudioPoint 3.0

Barix 2017.9218P AudioPoint 3.0

$474.00 USD
$474.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

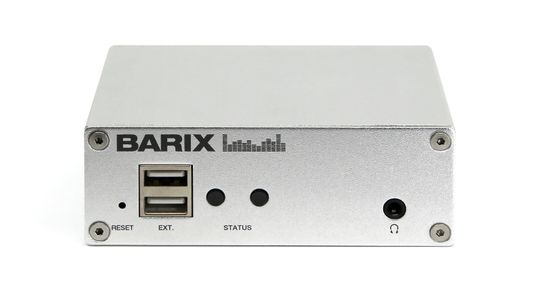

Barix 2017.9218P AudioPoint 3.0

Near Lip-Sync Encoder.

Streaming to on-site mobile listeners using standard Wifi networks, with the lowest possible latency, Barix’s AudioPoint 3.0 audio-to-mobile platform has been deployed in venues around the globe to enhance digital signage and live presentation applications with high-quality, IP-delivered audio to the mobile phone. The solution consists of robust encoding hardware, where each unit can provide 2 independent mono channels. It also consists of free iOS and Android apps to stream live audio to smartphones over local Wi-Fi in near-perfect lip-synch.

Operation System



Embedded Linux based on Yocto

Network Interfaces

1 x Ethernet (RJ45) Interface

IPv4, IPv6 capable

10/100 fdx/hdx, auto negotiation

Protocols

TCP/IP, UDP, RTP, SIP, CGI, HTTP, DHCP

Singlewire InformaCast compatibility

Syn-Apps Revolution compatibility

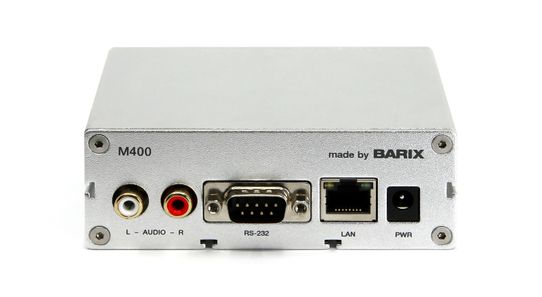

 Audio Interface



  • unbalanced L-R Line level output on RCA
    connectors
  • Headphone connector on the front panel

Audio Formats

  • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz
    sample freq.
  • AAC-HE (AAC, AAC plus, AAC plus V2)
  • PCM linear 16bit @44.1 kHz
  • 711
  • Opus
 CPU / Memory



  • Barix IPAM400 Processor Module
  • Quad-Core ARM Cortex™ -A7
  • 2GB DDR3 SDRAM
  • 16MB SPI Flash
  • 8GB SD-Card Flash



User Interface

  • Web interface for configuration
  • 2 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button
 Power Requirements



  • 5VDC, 10W maximum on 6.5×1.5mm
    barrel connector (positive polarity)

MTBF

  • > 200’000h

Measurement

  • 7mm (4.25×1.5×3.1 inch

Weight

  • 250g

Warranty

Two years
