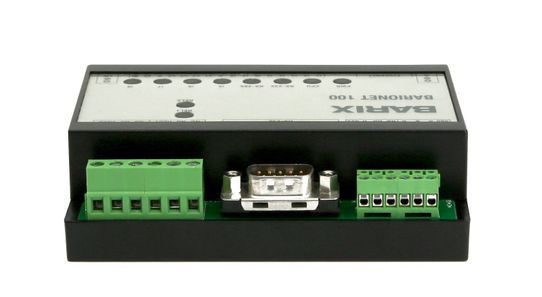

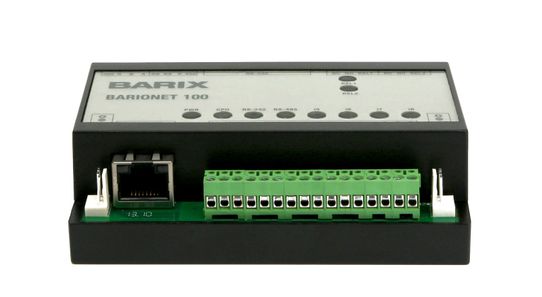

Barix Barionet 100


Barix Barionet 100


Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, analog and digital I/O, Relays and Dallas 1-wire support. UL listed.

  • Environmental monitoring, logging and alarming
  • Contact closure monitoring
  • Access Control/Door controller
  • Temperature monitoring, logging and HVAC control
  • PV power management


  • Relay Output (2x250VAC, 5A)
  • Digital Inputs (4)
  • Open Collector (digital) Outputs (4x24VDC)
  • Analog (0..5VDC) Input (4)
  • RS-232 Serial Port (1)
  • RS-422/485 Serial Port (1)
  • Supply Voltage (9-30VDC)
  • Wiegand Interface Input (2)

Designed in Switzerland and installed in tens of thousands of locations worldwide, the Barix automation devices are the established standard for security, monitoring and control applications.
