BDI SWP-200-1R

Size

BDI SWP-200-1R

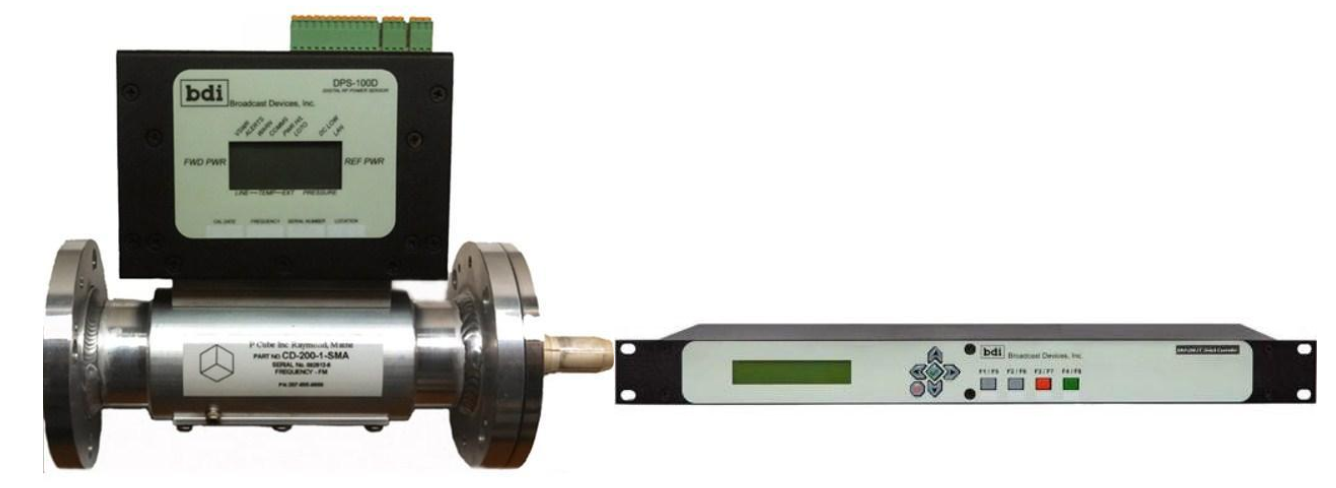

SWP-200 Switch Controller & DPS-100D RF Sensor Combination

The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with interface cables for most four port switches made. The SWP-200 provides one-button control of four port switches, manages interlock closures and transmitter control in a single rack unit chassis. Optional features include RF failure and RF safety sensing to protect a switch from damage if RF is present and a switch command is called for. The SWP-200 can operate in hands-off, pre-programmed mode, or in manually controlled mode. The SWP-200 also can be used in AM radio applications to control multiple open frame contactors. This is a versatile RF support product that provides around-the-clock peace of mind!

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading.
