Blackmagic Design BMD-DV/RFL/AUDIF Fairlight Audio Interface

Blackmagic Design BMD-DV/RFL/AUDIF Fairlight Audio Interface

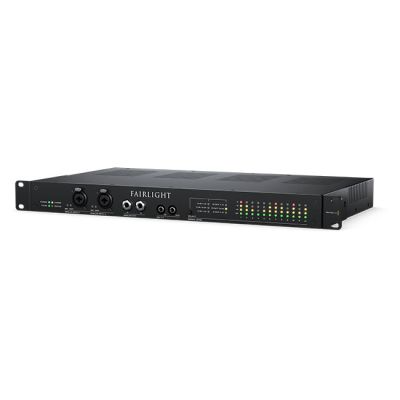

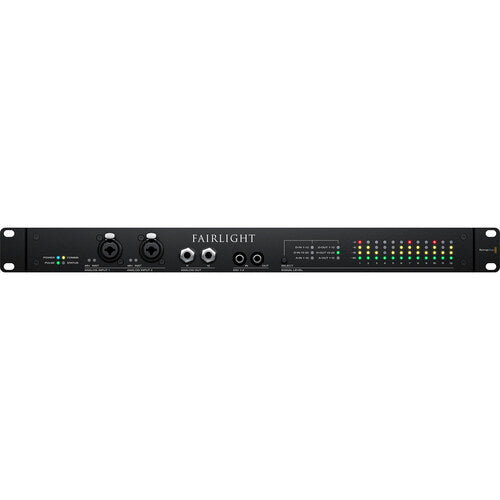

Fairlight Audio Interface is aprofessional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9‘pin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with asupplied proprietary interfacecable.

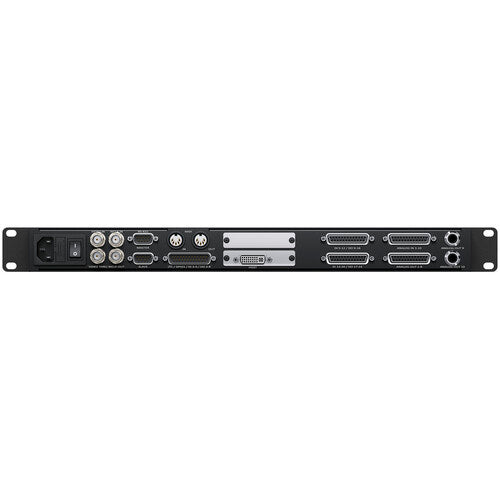

Connections

Analog Audio Inputs

2 x remote controlled XLR/TRS microphone inputswith 48vphantom power/instrumentpreamps.

8 x +24dBu balanced analoginputs.

Analog Audio Outputs

12 x +24dBu balanced analog outputs with muteprotection.

Digital Audio Inputs

9 x fully transformer coupled AES stereo digitalinputs.

1 x S/PDIF input with sample-rateconversion.

Digital Audio Outputs

11 x AES stereo digitaloutputs.

1 x stereo digital S/PDIFoutput.

Standard 25pin Tascam interface for Analog and AESlooms.

Sync Input

1 x 75 ohm BNC Reference input. Tri‘Sync orBlackBurst.

1 x 75 ohm BNC word clockinput.

Sync Output

1 x 75 ohm BNC Reference loop out. Tri‘Sync orBlackBurst.

1 x 75 ohm BNC word clock regeneratedoutput.

Sync to all common frame rates and formats including HD Tri‘level sync, video sync, word‘clock andAES/EBU.

Device Control

1 x RS-422 9-pin machine controlinput.

1 x RS-422 9-pin machine controloutput.

Timecode

Timecode input and output withregeneration.

MIDI

For future use

GPIO

GPI and GPO connections for cough and ‘On‘Air’control

Product Specifics

Sample Rate

44.1, 48, 96, 192 kHz

Max Input

Inputs 1-2 (mic): +2.5dBu

Inputs 1-2 (instrument): +24dBu

Inputs 3-10 (Line): +24dBu

Gain Range

Inputs 1-2: Mic Inputs: 50dB gain range(+21.5 to +71.5dB)

Inputs 1-2 : Instrument Setting: 50dB gain range(+0 to +50dB)

Mic E.I.N (unweighted)

Inputs 1-2: -127dBu @40dB (61.5dB)

Gain: 150 ohm source, 20Hz - 20kHz THD+N (micinput)

Inputs 1-2: <0.001%@ 1kHz, -1 dBFS at 0dBgain

Inputs 1-2: <0.004%@ 1kHz, -1 dBFS at 40dB (61.5dB)gain

THD+N (line input)

Inputs 1-2: <0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted)

Inputs 3-10 : <0.001 % @ 1 kHz (unweighted)

Dynamic Range (line input)

Inputs 1-2 : 108dB @ 0dB gain (unweighted)

Inputs 3-10: 110dB (unweighted)

Input Frequency Response

+0.05/-0.05dB, 20Hz - 20kHz

Input Impedance

Inputs 1-2 (XLR) : 2k ohm

Inputs 1-2 (1/4""): >1M ohm

Inputs 3-10: 15k ohm

Max Output

Outputs 1-12: +24 dBu

THD+N (Line Outputs)

Outputs 1-12: <0.002%

Dynamic Range (Line Output)

Outputs 1-12 : 109 dB (unweighted)

Output Frequency Response

+0.05/-0.5dB, 20Hz - 20kHz

Output Impedance

Outputs 1-12 : 50 ohms

Operating Systems

Mac 10.15 Catalina or later.

Windows 10,64-bit.

Power Requirements

Power Supply

Internal 100 - 240V AC 50/60Hz with IEC C14 mainsinput.

Power Usage

40W

Power Management

Automatically powered-on/off only when the Fairlight Audio Accelerator is poweredon.

Physical Specifications

Environmental Specifications

Operating Temperature

0 to 40C (32 to104F)

Storage Temperature

-20 to 60C (-4 to140F)

Relative Humidity

0% to 90% non-condensing

What's Included

• Fairlight Audio Interface
• Fairlight Audio Interface multi-pin cable to connect to Fairlight AudioAccelerator.

Warranty

1 Year Limited Manufacturer'sWarranty.

* NOTE: Resellers ordering Blackmagic Design Fairlight products must first be approved by Blackmagic Design in order to do so. We will not accept orders without signed off approval by Blackmagic Design.
