Broadcast Tools Smart Relay 4 G2 – Four Channel Smart GPIO Converter

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Broadcast Tools Smart Relay 4 G2 – Four Channel Smart GPIO Converter



Overview

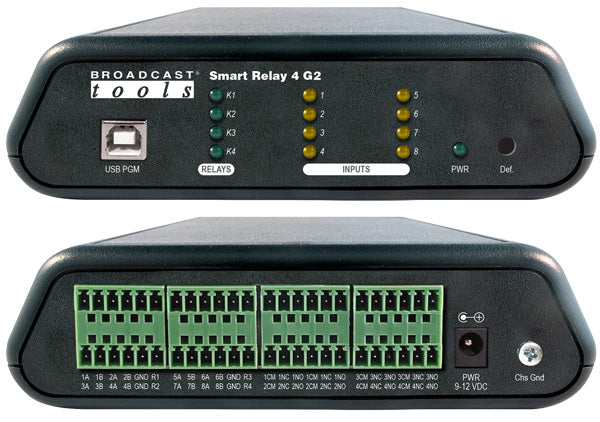

The Smart Relay 4 G2 provides four independent GPIO interfaces in one box, each equipped with two optically isolated inputs (wet or dry) and a 2PDT relay output.

The Smart Relay 4 G2 is perfect for converting differing logic levels to contact closures. Additional features include: Independent user programmable Boolean logic and pulse stretching (delays) from 50ms to 99 hours, 59 minutes, 59.99 seconds.

Features/Benefits

•  All I/O connections via pluggable screw terminal blocks.
•  Each 2PDT relay channel can be configured with two independent optically isolated inputs configurable for dry signals or wet signals (5-24 VDC, or 25-48 VDC via an external resistor.)
•  LED status indicators are provided for each relay, input, and power.
•  Fifteen logic functions include, sustained, toggle, set-reset (flip-flop), dual alternate action or failing/rising edge, along with additional Boolean logic functions.
•  Independent pulse stretcher or time delays may be user programmed from 50ms to 99 hours, 59 minutes, 59.99 seconds.
•  Timing and mode configuration from a non-dedicated PC using the USB-serial connection.


Applications

•  Convert differing logic levels to 2PDT contact closures.
•  Time delay relays
•  Pulse stretcher
•  Sustained contact to pulse converters
•  Rising and/or falling edge pulse converters
•  Latching (flip-flop) relays
•  Toggle action relays
•  Dual alternate action relays
•  Additional Boolean logic functions include: XOR, AND, NAND, OR, NOR.
