BroadCross Direct Directional circular polarization wideband

BroadCross Direct Directional circular polarization wideband

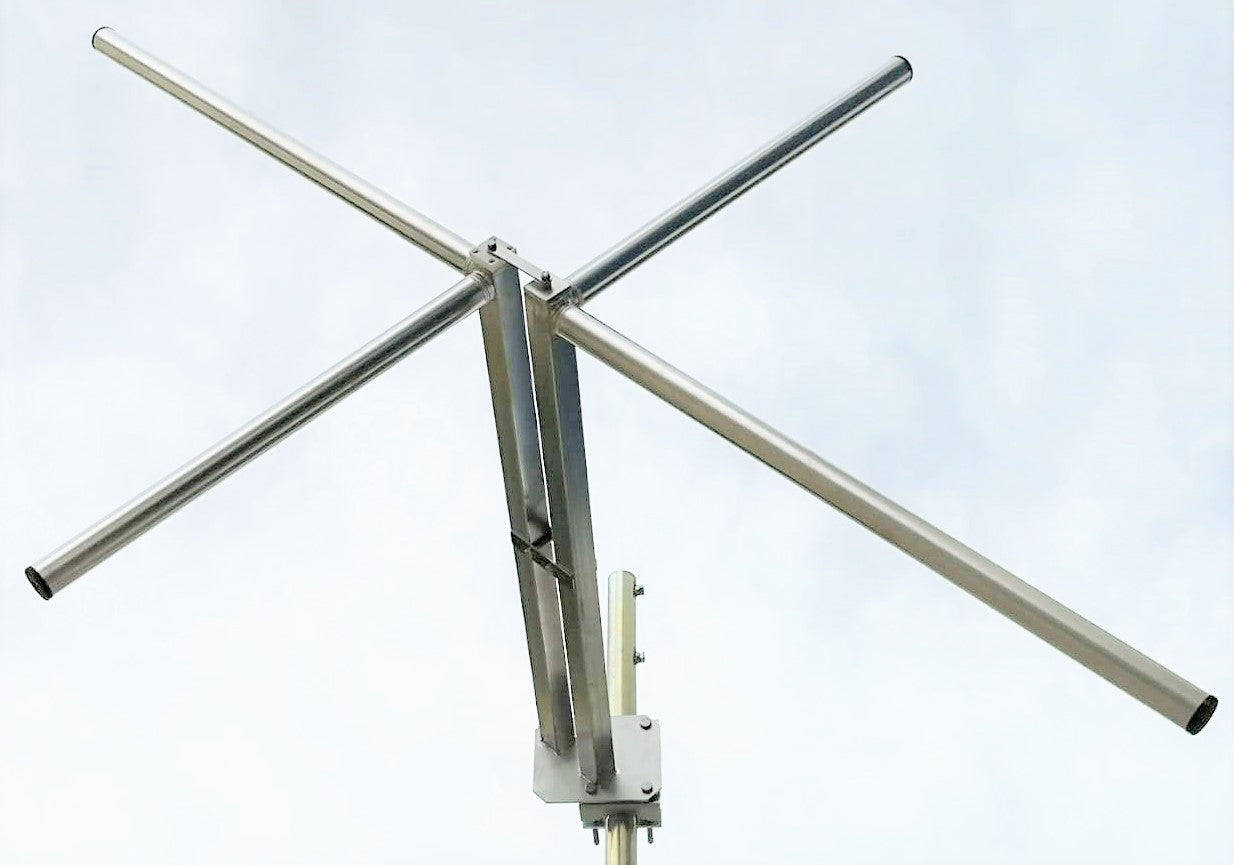

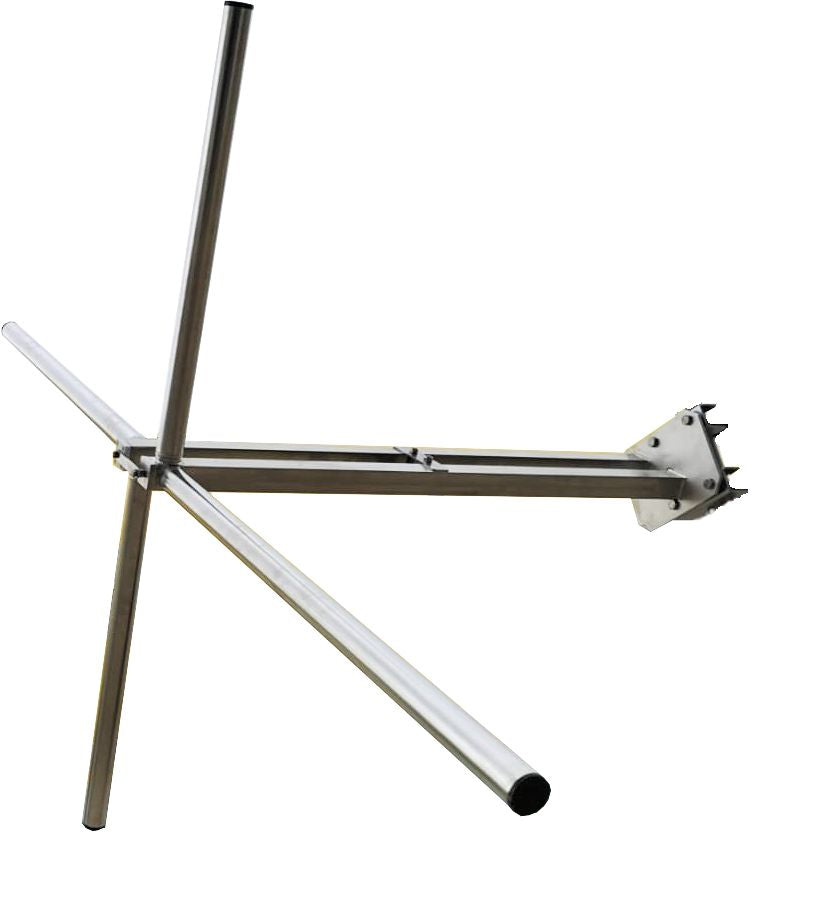

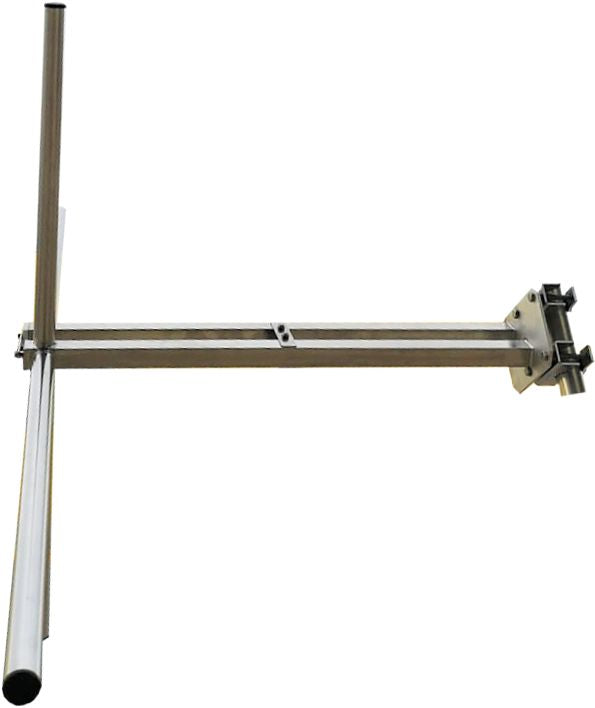

The BroadCross Polar antenna is a circular polarization antenna for use in broadcast. This medium power antenna can support a maximum power of 2500W with 7/8 or 4000W with EIA 7/8

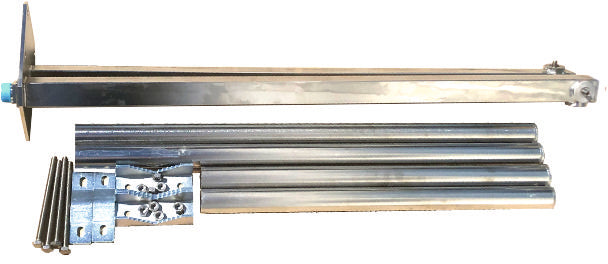

For easy and economical shipping, the antenna is send in 2 parts that limit its dimensions . The antenna is broadband and do not need any adjust.

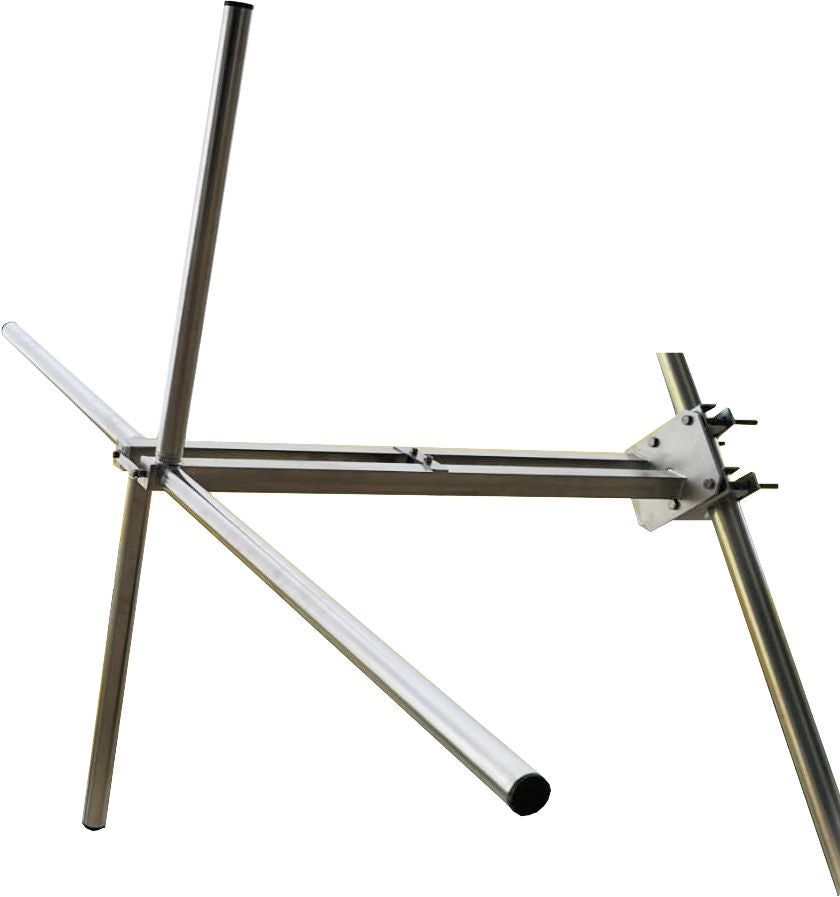

The antenna is made in stainless steel and an anticorrosive protective coating. The anchors are designed for circular masts up to 70mm in diameter. The antenna can be used as a single antenna or to create arrays of 2 or more antennas to increase efficiency. Using a power splitter and feeder cables to each antenna, multi-element array systems are achieved.

Te antenna has a very good quality price relationdhip. This antenna can be used to various frequencies at same time using a multiplexer. Installed on small towers, the radiation pattern is not too much affected as in other types of antennas, maintaining a good circular pattern
