BroadCross Polar Circular polaritation Broadband

BroadCross Polar  Circular polaritation Broadband

• Sturdy construction
• Trully broadband
• 1 Connector input
• Omnidirectional pattern
• Circular polaritation
• 7/16 female connector or EIA flange 7/8
• Deumontable
• Radome on feeder
• Circular polariztion
• Corrosion treatment for extreme conditions
• Element reflector available

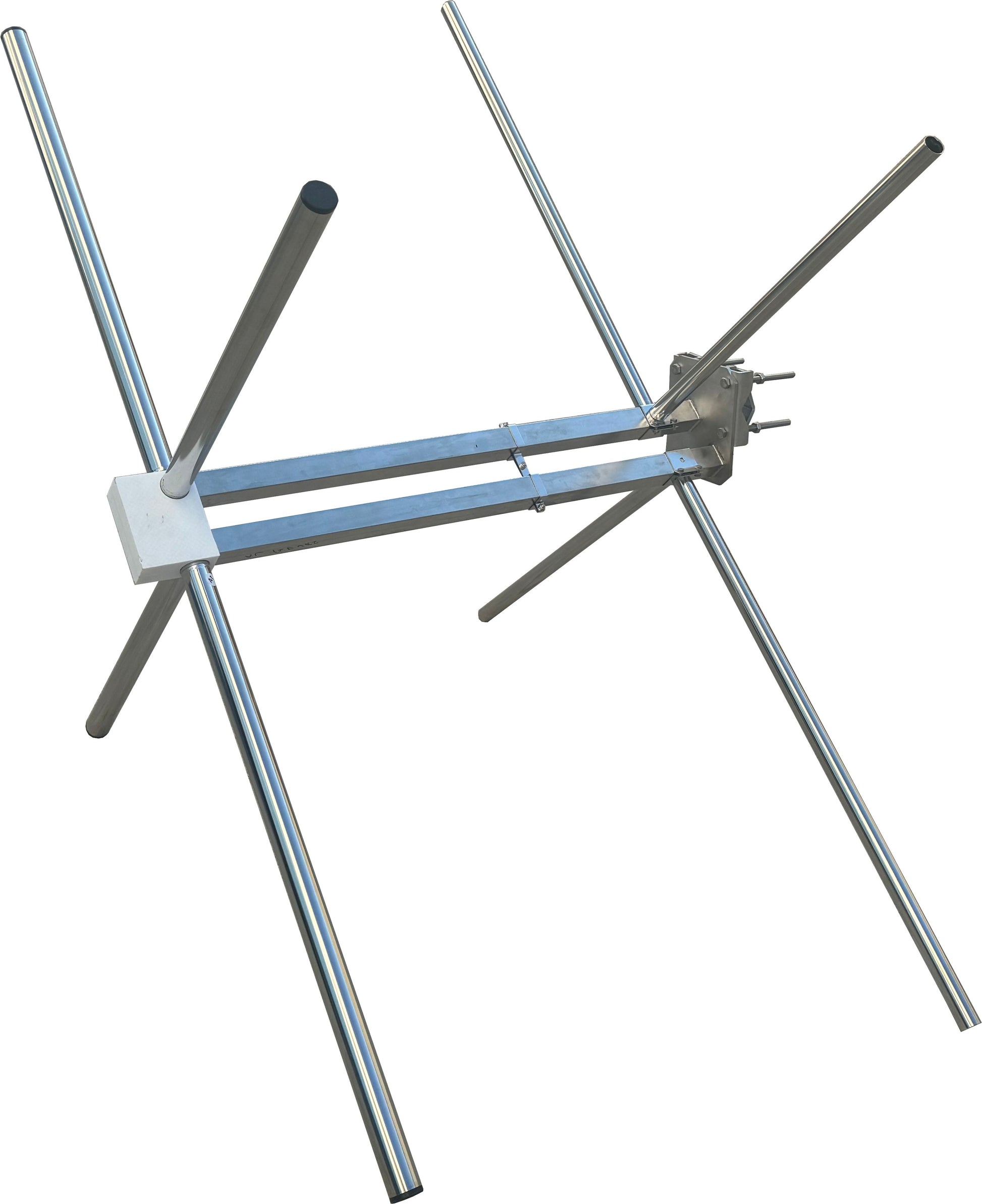

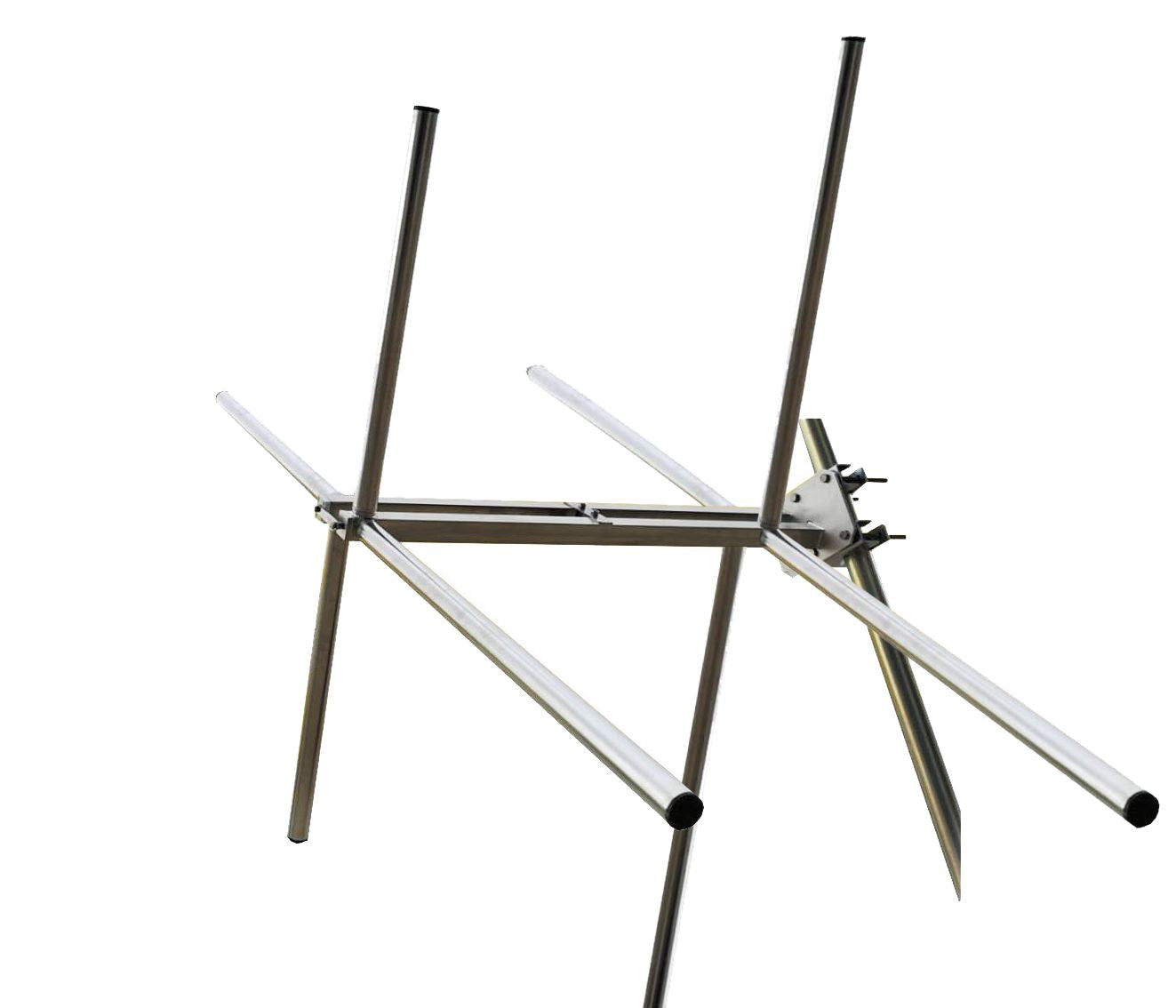

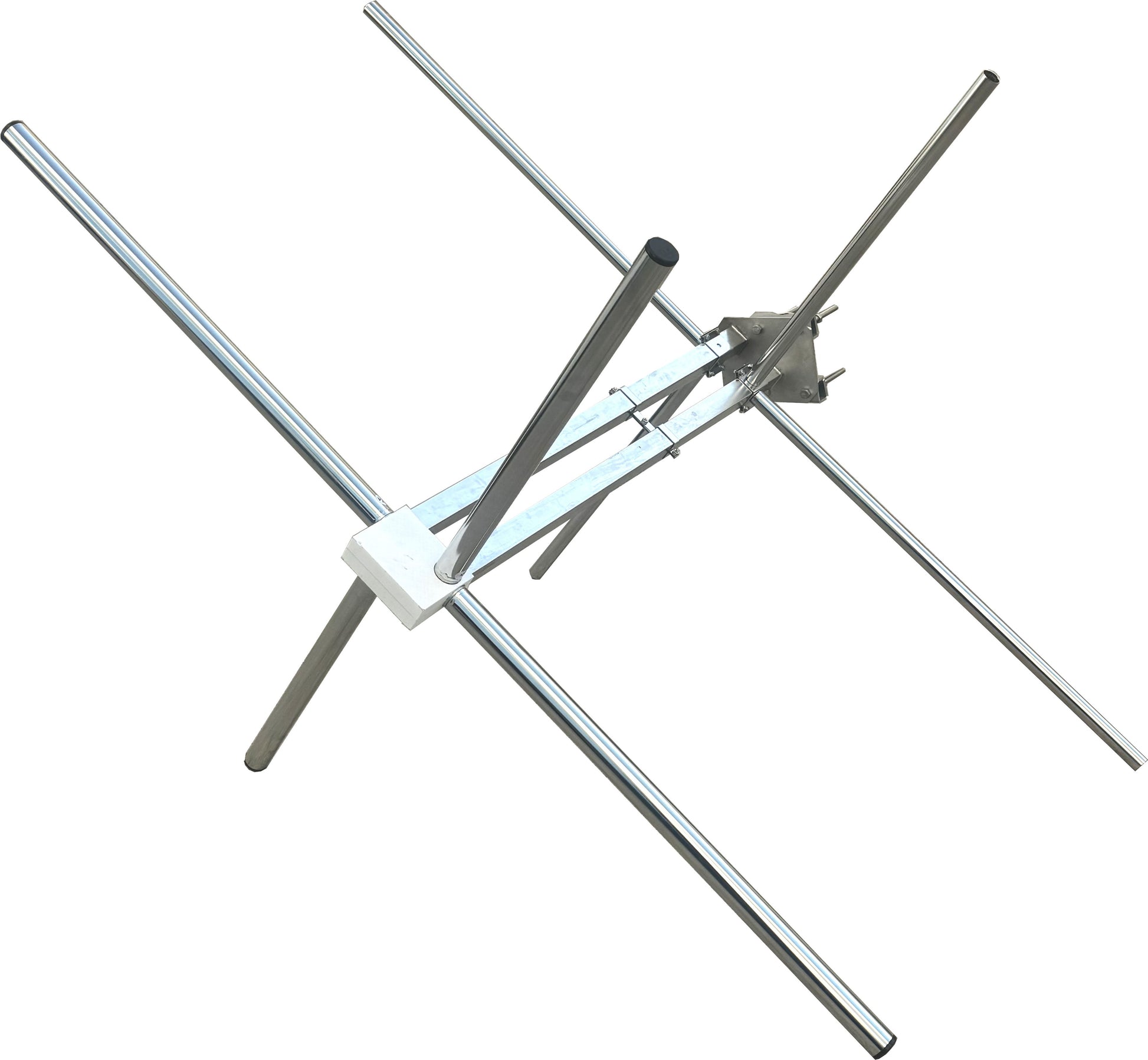

The BroadCross Polar antenna is a circular polarization antenna for use in broadcast. This
medium power antenna can support a maximum power of 2500W with 7/8 or 4000W with
EIA 7/8

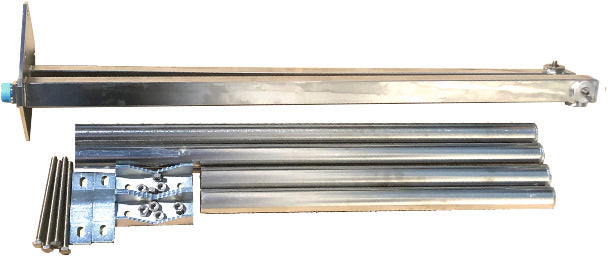

For easy and economical shipping, the antenna is send in 2 parts that limit its
dimensions . The antenna is broadband and do not need any adjust.
The antenna is made in stainless steel and an anticorrosive protective coating. The
anchors are designed for circular masts up to 70mm in diameter. The antenna can be
used as a single antenna or to create arrays of 2 or more antennas to increase efficiency.
Using a power splitter and feeder cables to each antenna, multi-element array systems
are achieved.
Te antenna has a very good quality price relationdhip. This antenna can be used to
various frequencies at same time using a multiplexer. Installed on small towers, the
radiation pattern is not too much affected as in other types of antennas, maintaining a
good circular pattern
